PLEASE NOTE THIS ITEM IS CARTON DAMAGED. However, it does not affect the functionality of the product and it does come with the FULL NEW product warranty

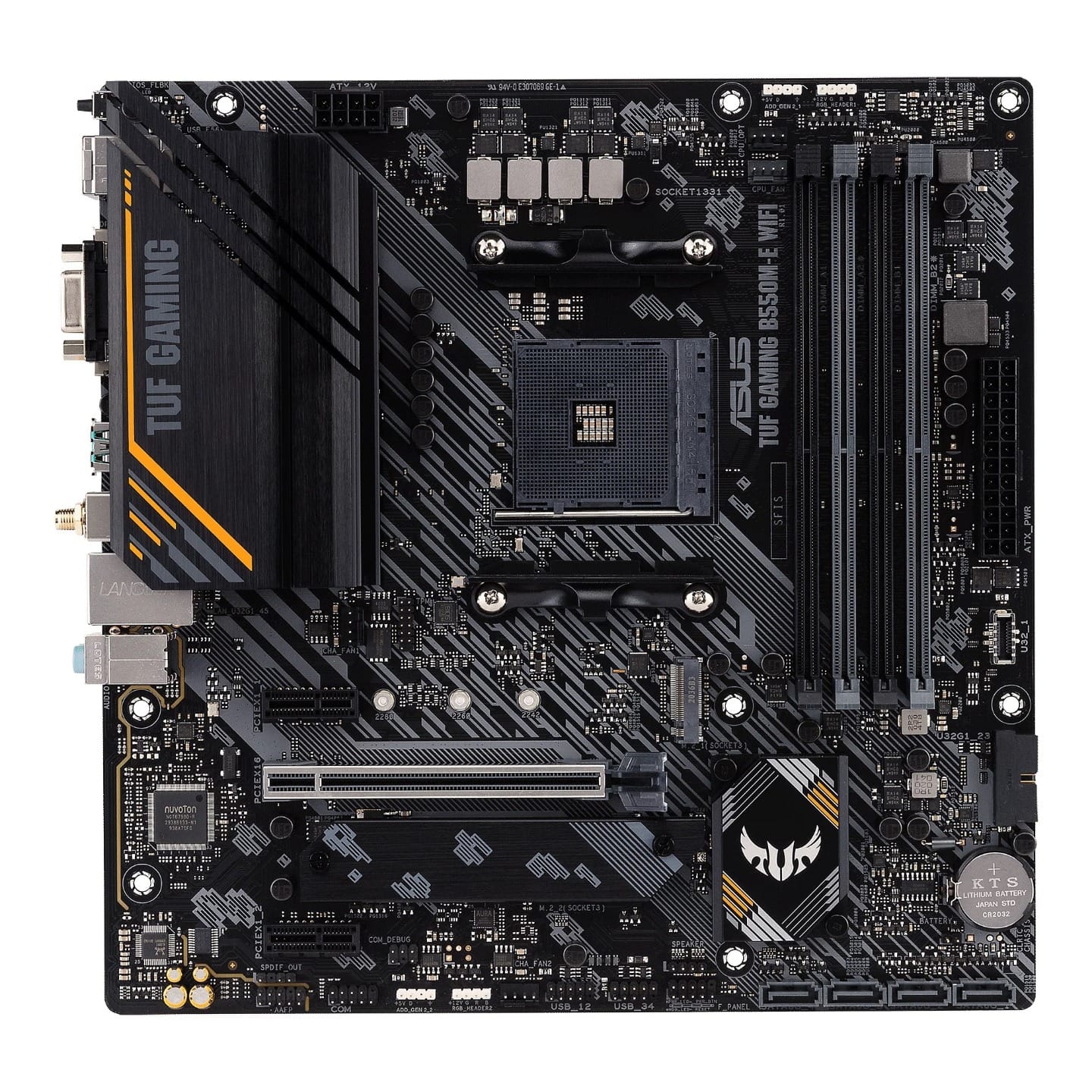

ASUS AMD B550 TUF GAMING B550M-E WIFI Micro ATX Gaming Motherboard PCIe 4.0, dual M.2, Intel Wi-Fi 6, DisplayPort, HDMI, D-Sub, SATA 6 Gbps RGB
ASUS AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, Intel Wi-Fi 6, DisplayPort, HDMI, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C , BIOS FlashBack , and Aura Sync RGB lighting support
AMD AM4 Socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced Power Solution: Alloy Chokes, military-grade TUF components, and DIGI+ VRM for maximum durability
Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, PCH fanless heatsink, hybrid fan headers, and Fan Xpert 2+ utility
Ultrafast Connectivity: Dual M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-C support
Made for Online Gaming: Intel Wi-Fi 6, 1 Gb Ethernet, TUF LANGuard and Turbo LAN technology
Aura Sync RGB Lighting: Onboard addressable Gen 2 headers and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
CPU
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Memory
Max Memory Size:128GB
4 x DIMM, Max. 128GB, DDR4
Graphics
1 x DisplayPort 1.2
1 x D-Sub
1 x HDMI 2.1 (4K@60Hz)
Expansion Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 slots
Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
Wireless & Bluetooth Intel Wi-Fi 6 AX200
mATX Form Factor ( 24.4 cm x 24.4 cm )
AMD AM4 Socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced Power Solution: Alloy Chokes, military-grade TUF components, and DIGI+ VRM for maximum durability
Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, PCH fanless heatsink, hybrid fan headers, and Fan Xpert 2+ utility
Ultrafast Connectivity: Dual M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-C support
Made for Online Gaming: Intel Wi-Fi 6, 1 Gb Ethernet, TUF LANGuard and Turbo LAN technology
Aura Sync RGB Lighting: Onboard addressable Gen 2 headers and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
CPU
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Memory
Max Memory Size:128GB
4 x DIMM, Max. 128GB, DDR4
Graphics
1 x DisplayPort 1.2
1 x D-Sub
1 x HDMI 2.1 (4K@60Hz)
Expansion Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 slots
Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
Wireless & Bluetooth Intel Wi-Fi 6 AX200
mATX Form Factor ( 24.4 cm x 24.4 cm )
| SKU | 767771 |
| MPN | TUF GAMING B550M-E WIFI-DB |
| Brand | Asus |
| Product Condition | Damaged Box |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.asus.com/ |
