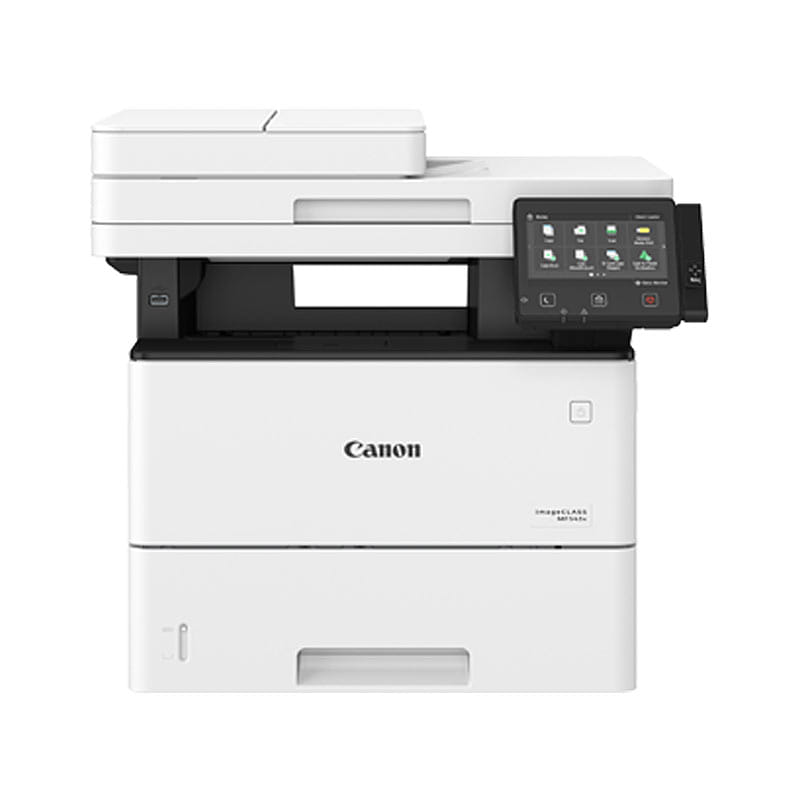

Canon MF543X ImageCLASS Wireless Multi-Function Monochrome Laser Printer (Print/Copy/Scan/Fax)

Printing
Duplex printing mode	Auto
Print technology Indicates the method used to print by this product.	Laser
Printing Producing a paper copy of information stored on a computer.	Mono printing
Duplex printing Feature of computer printers and multifunction printers (MFPs) that allows the printing of a sheet of paper on both sides (automatically or manually)
Maximum resolution Maximum printing resolution.	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter) The print speed of a printer for black & white A4 pages, normal quality. The exact speed varies depending on the system configuration, software program, and document complexity.	43 ppm
Duplex print speed (black, normal quality, A4/US Letter)	34.4 ppm
Warm-up time Time needed before printing after power switched on.	14 s
Time to first page (black, normal)	5.7 s

Copying
Duplex copying
Copying Description of copying function (colour or monochrome).	Mono copying
Maximum copy resolution The greatest amount of detail that can be produced by a copy of a document.	600 x 600 DPI
Time to first copy (black, normal)	6.4 s
Maximum number of copies	999 copies
Copier resize	25 - 400%

Scanning
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Scanning To convert a document or picture into digital form for storage or processing on a computer, by scanning it using a scanner.	Colour scanning
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Maximum scan area	215.9 x 355.6 mm
Scanner type Indicates the type of scanner this product is.	Flatbed & ADF scanner
Scan technology Indicates the technology used to scan by this product	CIS
Scan to	Cloud, E-mail, Fax, PC, USB
Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg).	JPG, PNG, TIF
Document formats supported The type of document formats that can be read/produced with this device e.g. .docx, .pdf.	PDF
Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth.	24 bit
Output colour depth	24 bit
Greyscale levels	256
Scan drivers	TWAIN, WIA

Fax
Duplex faxing
Faxing To send an exact copy of a document made by electronic scanning and transmitted as data by telecommunications links.	Mono faxing
Fax resolution (black)	400 x 400 DPI
Fax transmission speed	3 sec/page
Modem speed The speed at which data is transferred by a modem.	33.6 Kbit/s
Fax memory	512 pages
Auto-redialing Indicates whether automatic redialing is available on this product
Fax forwarding Sends a fax received in memory to another pre-programmed fax number.
Error Correction Mode (ECM)

Features
Recommended duty cycle	500 - 2500 pages per month
Digital sender Device similar to a scanner which converts paper documents into digital information for emailing, archiving, document management and more.
Page description languages	PCL 5e, PCL 6, PostScript, UFRII-LT

Input & output capacity
Total number of input trays	1
Total input capacity	550 sheets
Total output capacity	250 sheets
Multi-Purpose tray
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF)
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	50 sheets

Paper handling
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A4
Maximum print size The maximum size that an image can be printed with a good resolution.	215 x 355 mm
Paper tray media types	Envelopes, Heavy paper, Labels, Plain paper, Recycled paper
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A4, A5
ISO B-series sizes (B0...B9)	B5
Non-ISO print media sizes	Index card
Envelopes sizes	C5, Com-10, DL, Monarch
Paper tray media weight	60 - 120 g/m²
Multi-Purpose Tray media weight	60 - 199 g/m²

Ports & interfaces
Direct printing With direct printing it is possible to print your photographs or other documents directly to a printer from a compatible device, without the use of a computer.
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Near Field Communication (NFC)
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, HTTPS, IPPS, SNMPv3, SSL/TLS, TKIP, WPA-PSK, WPA2-PSK
Supported network protocols (IPv4)	LPD, RAW, Port9100, IPP, IPPS, WSD
Supported network protocols (IPv6)	LPD, RAW, Port9100, IPP, IPPS, WSD
Management protocols	SNMPv1, SNMPv3 (IPv4,IPv6)
Mobile printing technologies Apps etc. which allow users to send a print job from a smartphone or tablet to a printer via a wireless network.	Apple AirPrint, Canon PRINT Business, Google Cloud Print, Mopria Print Service

Performance
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	800 MHz
Sound pressure level (printing)	72.9 dB

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Business
Built-in display A display which is part of the product, so you do not need to attach another display.
Display The description of display that can includes display type, resolution, size etc.	LCD
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	12.7 cm (5")
Control type The way in which the device is controlled.	Touch

Power
Power consumption (max) The maximum amount of power used by the device.	1430 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	13.6 W
Power consumption (sleep)	0.9 W
Energy Star Typical Electricity Consumption (TEC)	1.4 kWh/week
AC input voltage The voltage of the AC electricity that is inputted into the product.	220 - 240 V
AC input frequency	50/60 Hz

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Operational conditions
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 30 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	494 mm
Depth The distance from the front to the back of something.	464 mm
Height The measurement of the product from head to foot or from base to top.	452 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	19.8 kg
