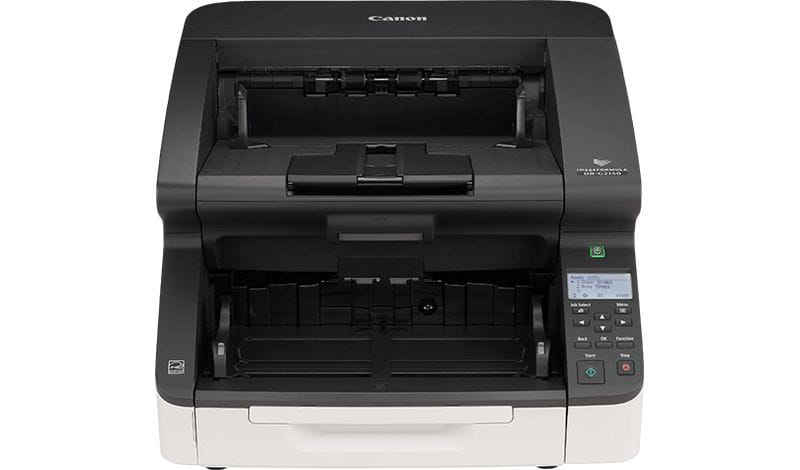

Canon DRG2140 imageFORMULA A3 Sheet-Fed Production Scanner
Item No:
529640
MPN:
DRG2140
$14,683.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Canon imageFORMULA DR-G2140, 305 x 432 mm, 600 x 600 DPI, 24 bit, 145 ppm, 145 ppm, 290 ipm
Ultra-fast model takes production scanning to the next level
Optimised for customers who require exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner has been created to excel in demanding environments
Productivity
Ultra-efficient scanner outputs up to 280 images per minute
Reliability
Robust, durable paper feed and transport rollers can deliver up to 70,000 scans per day
Image quality
Advanced image-processing tools deliver consistently crisp, clear, high-quality images
Optimised for customers who require exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner has been created to excel in demanding environments
Productivity
Ultra-efficient scanner outputs up to 280 images per minute
Reliability
Robust, durable paper feed and transport rollers can deliver up to 70,000 scans per day
Image quality
Advanced image-processing tools deliver consistently crisp, clear, high-quality images
| Scanning | |
| Maximum scan size | 305 x 432 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A3) | 145 ppm |
| ADF scan speed (colour, A3) | 145 ppm |
| Duplex ADF scan speed (b/w, A4) | 290 ipm |
| Duplex ADF scan speed (colour, A4) | 290 ipm |
| Design | |
| Scanner type Indicates the type of scanner this product is. | Sheet-fed scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 70000 pages |
| Scanning noise level | 54 dB |
| Input capacity | |
| Standard input capacity The number of sheets of paper that can be held by a device. | 500 sheets |
| Paper handling | |
| Long-paper mode |
|
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A3 |
| Auto Document Feeder (ADF) media weight | 20 - 209 g/m² |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RJ-45,USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 66.5 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 3.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage The voltage (V) which is required to power the product. | 220 - 240 V |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Operational conditions | |
| Operating temperature (T-T) | 50 - 95 °F |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 480 mm |
| Depth The distance from the front to the back of something. | 569 mm |
| Height The measurement of the product from head to foot or from base to top. | 315 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 25 kg |
| SKU | 529640 |
| MPN | DRG2140 |
| Brand | Canon |
| Product Condition | Brand New/Unused |
| Product Use | General |
