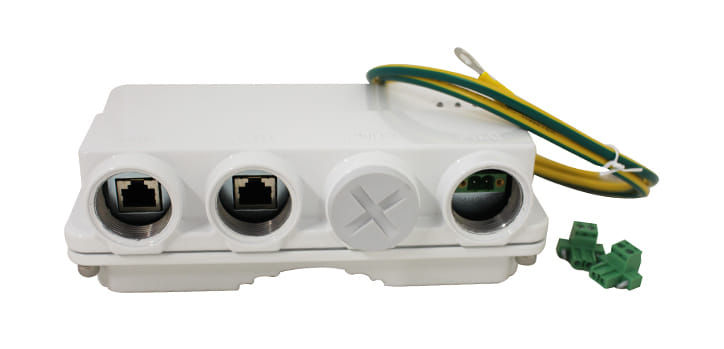

Cambium Networks N000082L022A, Gigabit Ethernet, 1000 Mbit/s, White, IP66, 57 V, 90 W
Cambium Networks radios utilize PoE (Power over Ethernet) for
delivering power and data. This PoE injector drives a 57VDC plus
data (PoE) output to the radio. We meet stringent efficiency
requirements and regulatory compliance for deployment in
most locations around the world.
delivering power and data. This PoE injector drives a 57VDC plus
data (PoE) output to the radio. We meet stringent efficiency
requirements and regulatory compliance for deployment in
most locations around the world.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Wall mountable The product can be mounted on (attached to ) a wall. |
 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 57 V |
| Output power The power that the device can produce. | 90 W |
| Input voltage The voltage (V) which is required to power the product. | 18 - 60 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -45 - 60 °C |
| Operating relative humidity (H-H) | 5 - 100% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 190 mm |
| Depth The distance from the front to the back of something. | 134 mm |
| Height The measurement of the product from head to foot or from base to top. | 62 mm |
| SKU | 779759 |
| MPN | N000082L022A |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
| Stock Availability | Available for Shipping |
