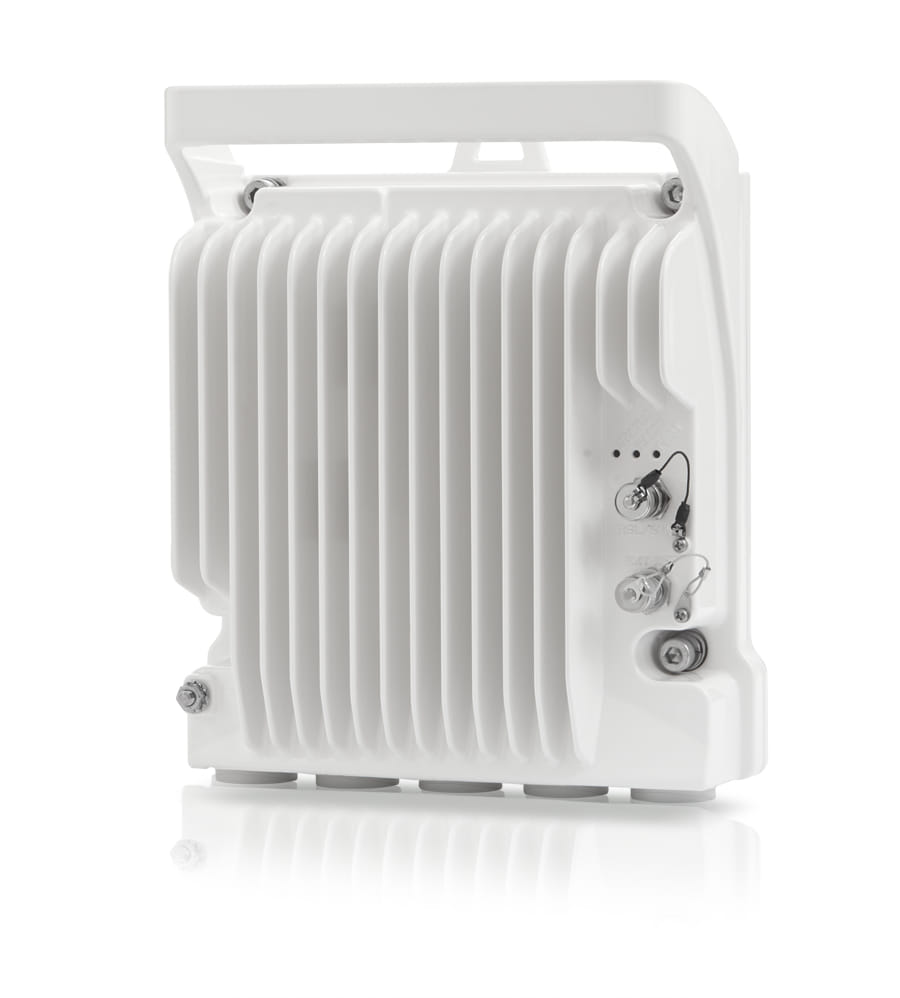

Cambium Networks PTP 820, 13 GHz, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad, 10/100/1000Base-T(X), 8PSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, QPSK, White, IP66
PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading
networking functionality with the industry's most advanced microwave technologies creating
a superior microwave transport solution.
Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers
a wide range of configurations to offer a tailored solution for any deployment scenario.
Composed of high-density multi-technology nodes and integrated radio units, the PTP 820
series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options.
Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology,
modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
The PTP 820C has dual-core functionality enabling the system to operate up to 2 Gbps via
software upgrades, eliminating the need for future forklift upgrades, or major system overhaul by the network operator to deliver gigabit-plus capacity.
The series also offers both Synchronous Ethernet (SyncE) and IEEEv2 synchronization protocols required for large ISP and MPLS networks.
Operations, Administration and Maintenance (OA&M) tools coupled with a full suite of
network and element management systems (NMS and EMS) simplify network provisioning and monitoring, reducing operators' total cost of ownership and enabling them to meet the most stringent service level agreements.
Combining technologies, equipment and services, PTP 820 enables network operators to meet accelerating demand for capacity cost-effectively under rapidly evolving conditions.
networking functionality with the industry's most advanced microwave technologies creating
a superior microwave transport solution.
Supporting licensed frequency bands ranging from 6 to 42 GHz, the PTP 820 series delivers
a wide range of configurations to offer a tailored solution for any deployment scenario.
Composed of high-density multi-technology nodes and integrated radio units, the PTP 820
series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options.
Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology,
modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.
The PTP 820C has dual-core functionality enabling the system to operate up to 2 Gbps via
software upgrades, eliminating the need for future forklift upgrades, or major system overhaul by the network operator to deliver gigabit-plus capacity.
The series also offers both Synchronous Ethernet (SyncE) and IEEEv2 synchronization protocols required for large ISP and MPLS networks.
Operations, Administration and Maintenance (OA&M) tools coupled with a full suite of
network and element management systems (NMS and EMS) simplify network provisioning and monitoring, reducing operators' total cost of ownership and enabling them to meet the most stringent service level agreements.
Combining technologies, equipment and services, PTP 820 enables network operators to meet accelerating demand for capacity cost-effectively under rapidly evolving conditions.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 13 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 8PSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, QPSK |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Power | |
| Power source type What the power source is. | DC |
| Input voltage The voltage (V) which is required to power the product. | 48 V |
| Certificates | |
| Certification | EN 301 489-1, EN 301 489-4, Class B (Europe), FCC47 CFR, part 15, class B (US), ICES-003, Class B (Canada), TEC/EMI/TEL-001/01, Class B (India), EN61000-4- 5, Class 4 (for PWR and ETH1/PoE ports), EN 60950-1, IEC 60950-1, UL 60950-1, CSA-C22.2 No.60950-1, EN 60950-22, UL 60950-22, CSAC22.2.60950-22, ETSI EN 300 019-1-1 Class 1.2, ETSI EN 300 019-1- 2 Class 2.3 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -33 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -45 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 233 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 230 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6 kg |
| SKU | 757439 |
| MPN | N130082D043A |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
