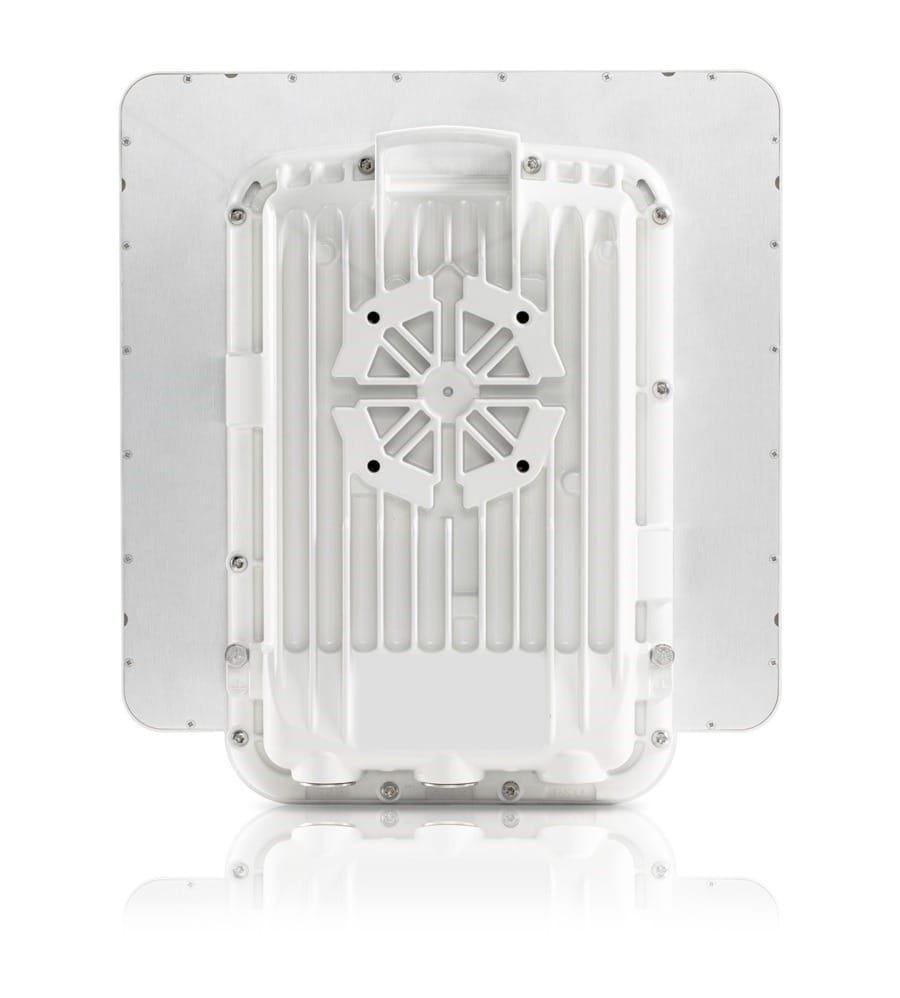

PTP 670 systems provide 4.9 to 6.05 GHz, multi-band flexibility in a single radio and operate in channel sizes from 5 to 45 MHz.
FIPS-197 128/256-bit AES encryption
IEEE 1588v2 and Synchronous Ethernet (SyncE)
IPv6/IPv4 dual-stack management support
Ingress Protection rated (IP66/67) protective aluminum radio enclosures
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 4.9 - 6.05 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3 |
| Gain | 23 dBi |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 256-QAM |
| Bandwidth note | 20 - 40 MHz |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 164 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | MIMO directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | N-type |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| Survival wind speed | 322 km/h |
| Maximum operating distance The maximum distance from which you can operate the device. | 250000 m |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Power | |
| Power source type What the power source is. | AC, PoE |
| Power consumption (max) The maximum amount of power used by the device. | 30 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 305 mm |
| Depth The distance from the front to the back of something. | 305 mm |
| Height The measurement of the product from head to foot or from base to top. | 81 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.1 kg |
| SKU | 779732 |
| MPN | C050067B004B |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
