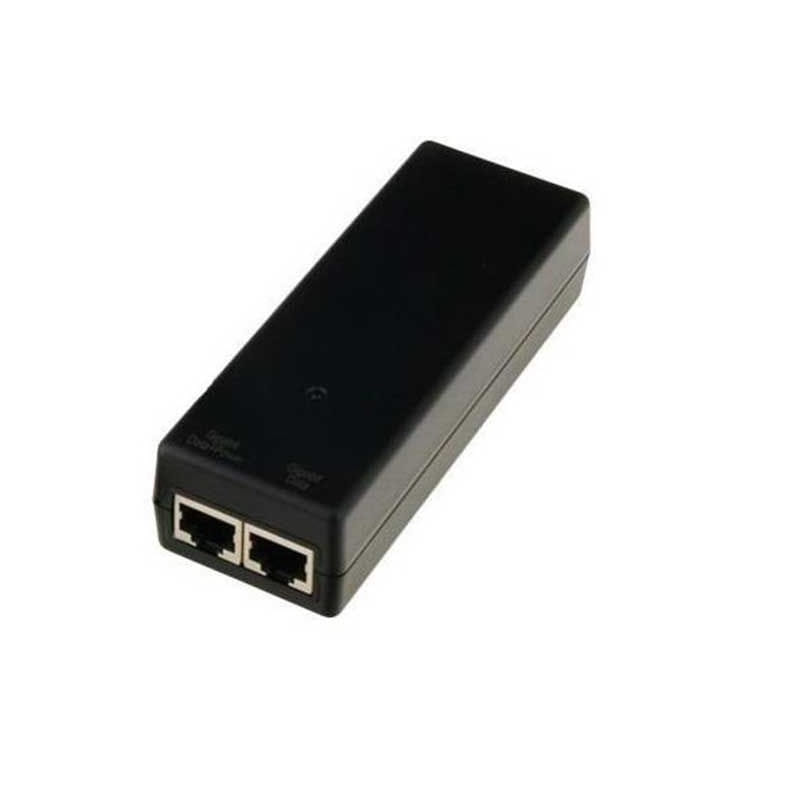

Cambium Networks N000900L001D, Gigabit Ethernet, 1000 Mbit/s, Black, UL 60950-11, CuL, Aussie RCM, C-Tick and MEPS, CB, NOM, CE, LPS, Argentina, Singapore, Taiwan,..., 30 V, 15 W
Cambium Networks radios utilize PoE (Power over Ethernet) for delivering power and data. This PoE
power supply has an AC input and a Data Input which then drives a 30V power plus data( PoE)
output to the radio. This PoE power supply meets stringent Level VI efficiency requirements and
carries regulatory compliance for deployment in most locations arounds the world. The unit is
designed to be compact easy to deploy while delivering reliability and high performance.
power supply has an AC input and a Data Input which then drives a 30V power plus data( PoE)
output to the radio. This PoE power supply meets stringent Level VI efficiency requirements and
carries regulatory compliance for deployment in most locations arounds the world. The unit is
designed to be compact easy to deploy while delivering reliability and high performance.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Surge protection |
|
| Certification | UL 60950-11, CuL, Aussie RCM, C-Tick and MEPS, CB, NOM, CE, LPS, Argentina, Singapore, Taiwan, Korea KC and MEPS, Brazil, China, TUV/GS, EAC, BIS, ST CRL, SABS; EN61000-4-2, level 3; EN61000-4-3, level 2; EN61000-4-5, level 3; EN61000-4-6, level 2; EN61000-4-11w; EN61000-4-2, Level 3; EN61000-4-5, Level 3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 30 V |
| Output power The power that the device can produce. | 15 W |
| AC adapter input voltage | 90 - 264 V |
| AC adapter frequency | 47 - 63 Hz |
| Output current | 0.5 A |
| Surge protection voltage | 8 kV |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 474 mm |
| Depth The distance from the front to the back of something. | 86 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 93 g |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS, WEEE |
| SKU | 794798 |
| MPN | N000900L001D |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
