Cambium Networks XV2 23T, 2402 Mbit/s, 573.5 Mbit/s, 2402 Mbit/s, 100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 10/100/1000Base T(X)
Enterprise grade software defined access point

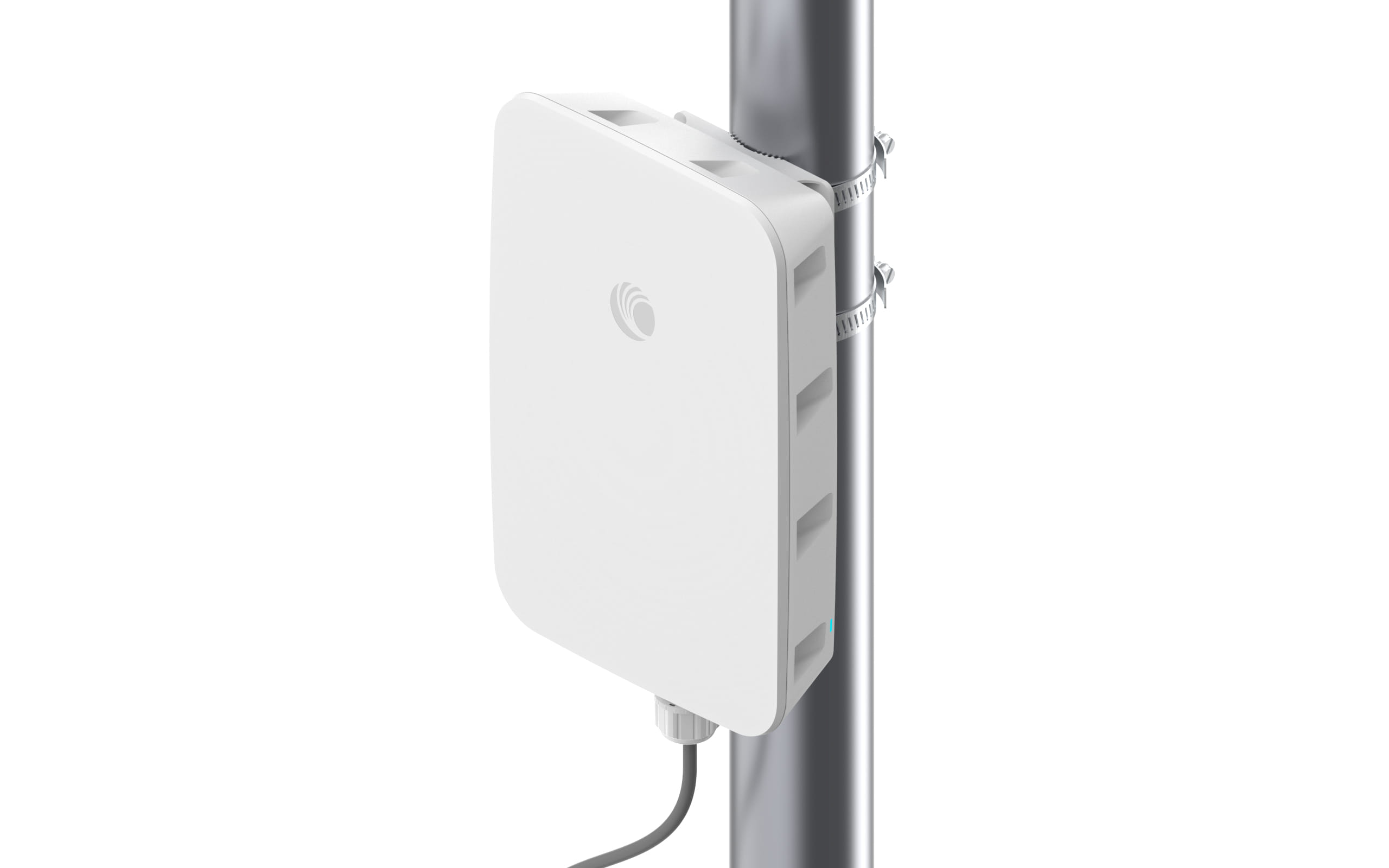

The XV2 23T outdoor 2 -2 Wi Fi 6 AP with long range internal antennas. Ideal for hospitality, education, municipal, transportation and logistics applications.
Cambium Networks offers a value tier outdoor Wi Fi 6 access point designed for cost effective upgrade to the latest 802.11ax standard in Wi Fi technology.
The XV2 23T outdoor 2 -2 Wi Fi 6 AP with long range internal antennas. Ideal for hospitality, education, municipal, transportation and logistics applications.
Cambium Networks offers a value tier outdoor Wi Fi 6 access point designed for cost effective upgrade to the latest 802.11ax standard in Wi Fi technology.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Tunnel forwarding |
|
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WEP, WPA-PSK, WPA2, WPA2-AES, WPA2-CCMP, WPA2-Enterprise, WPA3 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Certification | WiFi Alliance 802.11a/b/g/n/ac/ax, PP2.0 FCC, CE, IC, IEC60950, IEC62368, EN50121, EN61373 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 10 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 300 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 84 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.22 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| SKU | 707345 |
| MPN | XV2-23T0A00-RW |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
