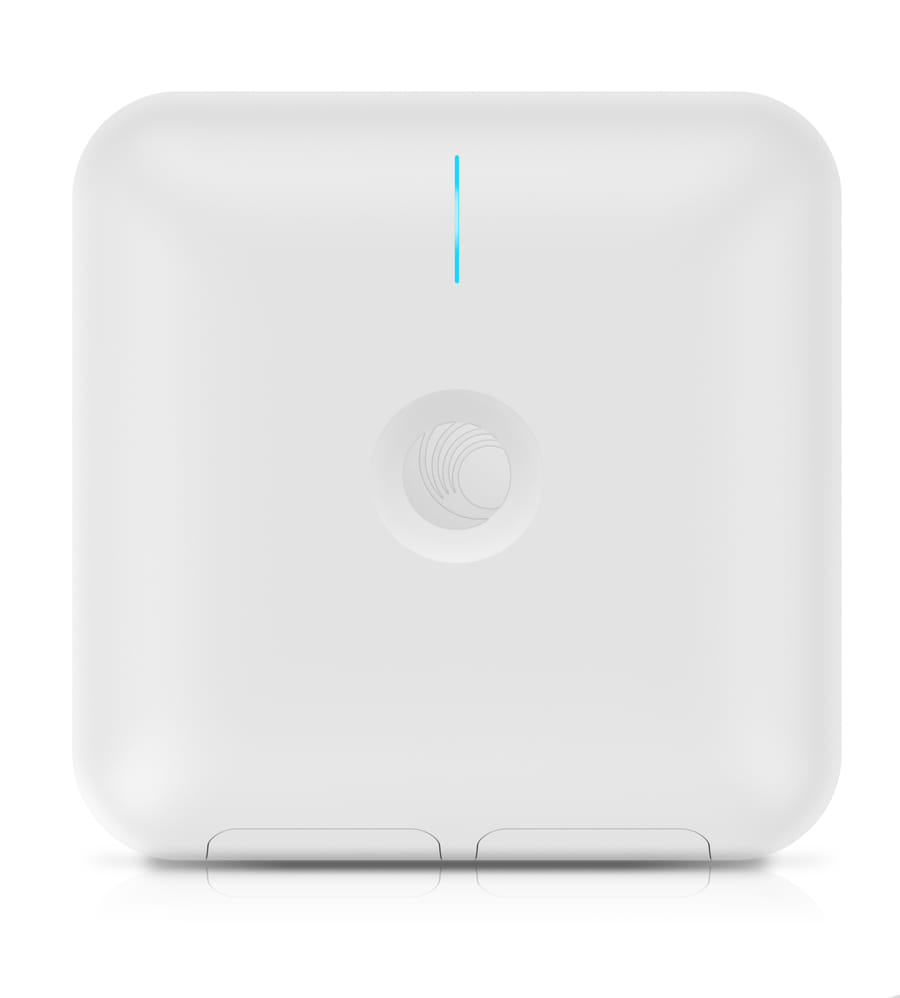

Cambium Networks cnPilot E600, 1733 Mbit/s, 400 Mbit/s, 1733 Mbit/s, 10,100,1000 Mbit/s, 2.4 - 2.484, 5.15 - 5.85 GHz, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE...
The High powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 E600 access point with a 4x4 array antenna array implements the latest standards. Perfect for just about any place needing high capacity throughput, high range, and/or high client capacity. Ideal workhorse to take on high traffic demand in Classrooms (Schools), Indoor public spaces, Malls, Hotels, or Enterprise offices
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1733 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.484, 5.15 - 5.85 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11u,IEEE 802.11v,IEEE 802.11w,IEEE 802.3af,IEEE 802.3at |
| Number of users The number of people that use or can use this product. | 512 user(s) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Channel bandwidth | 80 MHz |
| Automatic channel selection |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 16-QAM,64-QAM,256-QAM,BPSK,CCK,DSSS,OFDM,QPSK |
| Fit AP mode features | Hotspot 2.0 |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Band steering |
|
| Maximal-Ratio Combining (MRC) |
|
| Airtime Fairness (ATF) |
|
| Cyclic Delay Diversity (CDD) |
|
| Cyclic Shift Diversity (CSD) |
|
| Dynamic Frequency Selection (DFS) |
|
| Quality of Service (QoS) support |
|
| Data unit aggregation | A-MPDU, A-MSDU |
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 250 m |
| Transmitting power | 28 dBmW |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS,EAP-AKA,EAP-FAST,EAP-GTC,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,PEAP,SNMP,SNMPv2,SNMPv3,WMM,WPA-PSK,WPA-TKIP,WPA2,WPA2-AES,WPA2-Enterprise,WPA2-PSK |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Access Control List (ACL) |
|
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Management features | |
| Syslog |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Power consumption (max) The maximum amount of power used by the device. | 17.2 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Table, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Reset button |
|
| LED indicators |
|
| Certification | FCC, CE, IC, UL, EN60601-1-2, UL2043 Plenum, WEEE, RoHS |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 6 dBi |
| Polarization | Dual polarization |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 42 mm |
| Height The measurement of the product from head to foot or from base to top. | 180 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 558 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Other features | |
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. | Layer-2, Layer-3, DNS ACLs, DoS protection |
| SKU | 457505 |
| MPN | PL-E600X00A-RW |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
