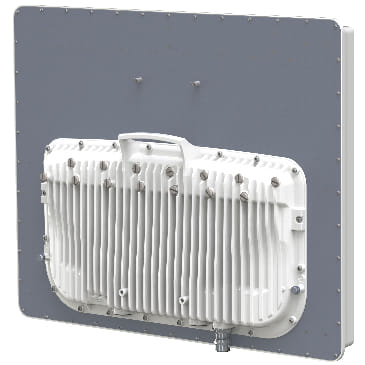

Cambium Networks 5 GHz PMP 450m Integrated Access Point
Item No:
828806
MPN:
C050045A101A
$19,091.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Cambium Networks PMP 450m, 5 GHz, 1000 Mbit/s, 100,1000 Mbit/s
One AP device changes everything.
PMP 450m with cnMedusa™ Massive MU-MIMO technology delivers ground breaking spectral efficiency in a highly integrated package, while being managed from a single pane of glass in the Cloud.
CNMEDUSA MASSIVE MU-MIMO
Combining Adaptive Beamforming and multiple RF chains yields more than 3X throughput, simply by changing the AP Hardware.
INTEGRATED 90Deg SECTOR ANTENNA ARRAY
Leading Edge antenna innovation brings Smart Beamforming to the 450 platform, ZERO RF cables to connect or weatherproof.
MULTIPLE RF CHAINS
14 x 14 Multi-user MIMO system allows simultaneous communication to up to seven SMs.
COMPATIBLE WITH EXISTING SMS
Realize capacity upgrade without any field dispatches to Subscriber sites.
FREQUENCY RE-USE
Using the same 20 MHz channel, capacity enhancements are attained without any network changes.
MULTIPLE I/O OPTIONS
AUX port (second Ethernet port) with multiple functions allow for greater flexibility of deployment. A SFP port also available for optical connection.
WIDEBAND RADIO
One SKU to allow operation in all 5 GHz unlicensed bands.
More connectivity, faster
The PMP 450m Access Point (AP) with cnMedusa™ Massive MU-MIMO technology enables network operators to rapidly provide more and faster Internet connections to people, places, and things.
A powerful tool that can change the commercial wireless broadband industry.
The PMP 450m AP with cnMedusa MU-MIMO router technology features integrated 90Deg sector beamforming antenna array, single cable connection integrated radio, and increased capacity
PMP 450m with cnMedusa™ Massive MU-MIMO technology delivers ground breaking spectral efficiency in a highly integrated package, while being managed from a single pane of glass in the Cloud.
CNMEDUSA MASSIVE MU-MIMO
Combining Adaptive Beamforming and multiple RF chains yields more than 3X throughput, simply by changing the AP Hardware.
INTEGRATED 90Deg SECTOR ANTENNA ARRAY
Leading Edge antenna innovation brings Smart Beamforming to the 450 platform, ZERO RF cables to connect or weatherproof.
MULTIPLE RF CHAINS
14 x 14 Multi-user MIMO system allows simultaneous communication to up to seven SMs.
COMPATIBLE WITH EXISTING SMS
Realize capacity upgrade without any field dispatches to Subscriber sites.
FREQUENCY RE-USE
Using the same 20 MHz channel, capacity enhancements are attained without any network changes.
MULTIPLE I/O OPTIONS
AUX port (second Ethernet port) with multiple functions allow for greater flexibility of deployment. A SFP port also available for optical connection.
WIDEBAND RADIO
One SKU to allow operation in all 5 GHz unlicensed bands.
More connectivity, faster
The PMP 450m Access Point (AP) with cnMedusa™ Massive MU-MIMO technology enables network operators to rapidly provide more and faster Internet connections to people, places, and things.
A powerful tool that can change the commercial wireless broadband industry.
The PMP 450m AP with cnMedusa MU-MIMO router technology features integrated 90Deg sector beamforming antenna array, single cable connection integrated radio, and increased capacity
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 5.15 - 5.925 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3 |
| Number of users The number of people that use or can use this product. | 196 user(s) |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 6 channels |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 16-QAM, 64-QAM, 256-QAM, QPSK |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Quality of Service (QoS) support |
|
| Security | |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Protocols | |
| Management protocols | HTTP, HTTPS, Telnet, FTP, SNMP v3 |
| Supported protocols | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 70 W |
| Power consumption (max) The maximum amount of power used by the device. | 110 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | Grey, White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Internal The product is built in. |
|
| Antenna | |
| Antenna features | Integrated antenna |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 650 mm |
| Depth The distance from the front to the back of something. | 110 mm |
| Height The measurement of the product from head to foot or from base to top. | 520 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 14.2 kg |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| SKU | 828806 |
| MPN | C050045A101A |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
