Cambium Networks XV3-8X00A00-RW, 4804 Mbit/s, 1147 Mbit/s, 4804 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE..., 802.1x RADIUS, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-EAP, WPA2-Enterprise, WPA3, VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz, TWT, Long OFDM Symbol, Transmit beamforming,...

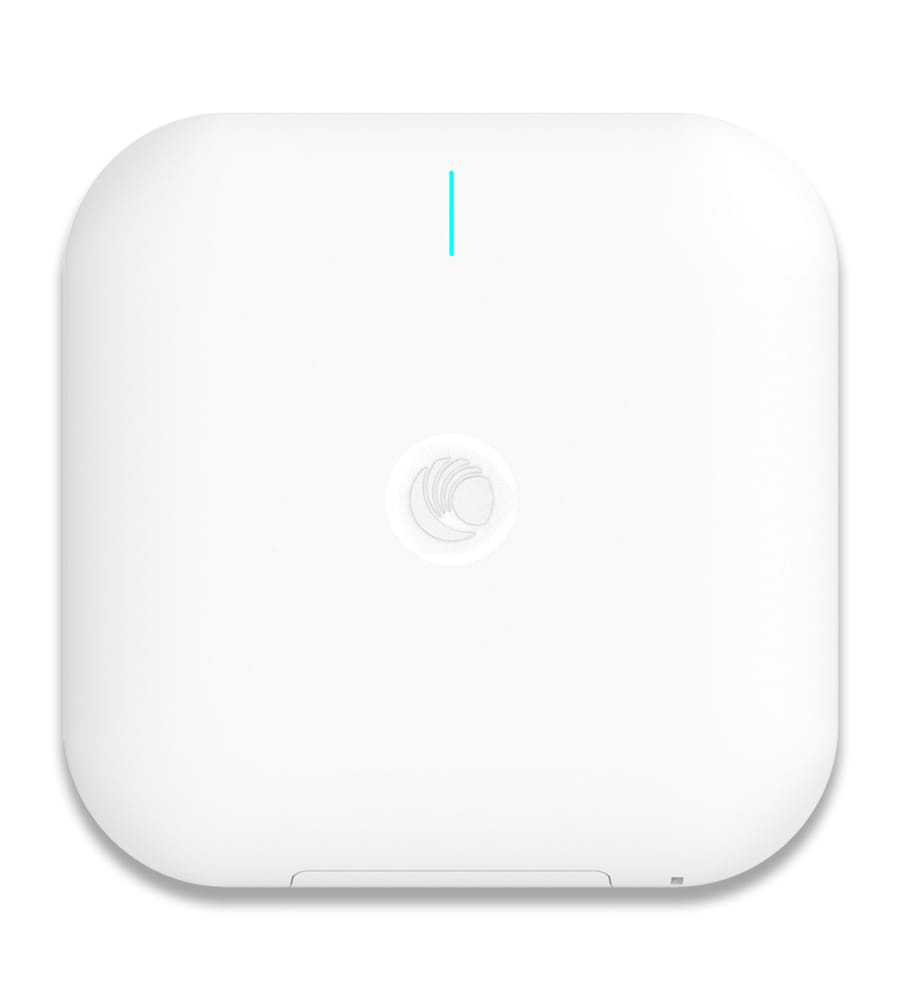

XV3-8 Wi-Fi 6 Access Point
Enterprise grade software-defined access point
High-density architecture reduces the equipment required while leveraging automation to deliver SLA. XV3-8 includes seamless roaming, fast roaming, automatic RF optimization and interference avoidance to automatically optimize performance to specific local needs. This Software-Defined 8 -8 Multi-Radio AP is equipped with dedicated scanning radio and BLE, WPA3 secure public access, Application Control and 802.3bz Ethernet optimized for high density deployments.
Designed for High Density and Edge Services
The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4 -4 plus one 2.4 GHz 4 -4, or the two 5 GHz radios can be combined into a single 5 GHz 8 -8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.
Optimized Wi-Fi for All Client Devices
For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4 -4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8 -8 operating mode via a simple configuration change. No firmware change is required to support this mode.
Cloud and On-Premises Management
XV3-8 operates with either the Cambium XMS cloud management or cnMaestroTM cloud and on-premises. Choose the cloud management system that best fits your business and use the latest technology from Cambium Networks.
Enterprise grade software-defined access point
High-density architecture reduces the equipment required while leveraging automation to deliver SLA. XV3-8 includes seamless roaming, fast roaming, automatic RF optimization and interference avoidance to automatically optimize performance to specific local needs. This Software-Defined 8 -8 Multi-Radio AP is equipped with dedicated scanning radio and BLE, WPA3 secure public access, Application Control and 802.3bz Ethernet optimized for high density deployments.
Designed for High Density and Edge Services
The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4 -4 plus one 2.4 GHz 4 -4, or the two 5 GHz radios can be combined into a single 5 GHz 8 -8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.
Optimized Wi-Fi for All Client Devices
For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4 -4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8 -8 operating mode via a simple configuration change. No firmware change is required to support this mode.
Cloud and On-Premises Management
XV3-8 operates with either the Cambium XMS cloud management or cnMaestroTM cloud and on-premises. Choose the cloud management system that best fits your business and use the latest technology from Cambium Networks.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 4804 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1147 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4804 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-EAP, WPA2-Enterprise, WPA3 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz, TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO, IEEE 802.11 a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 35 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| LED indicators |
|
| Certification | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 6.7 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 235 mm |
| Depth The distance from the front to the back of something. | 235 mm |
| Height The measurement of the product from head to foot or from base to top. | 42 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.25 kg |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| SKU | 693701 |
| MPN | XV3-8X00A00-RW |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
