Product Features
• Frequency Reuse: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has 35 dB front to back ratio including a wide aperture in the rear facing direction
• Channel Flexibility: consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance
• Consistent Coverage: Excellent null fill capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector
• Designed for the Installer: Small compact design, integrated ePMP radio mount and GPS antenna integration
• Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth
Product Specifications
• Frequency Range: 4.9GHz to 5.97GHz
• Gain: 18dBi
• 3 dB Beamwidth - Azimuth: 90 degrees
• 6 dB Beamwidth - Azimuth: 120 degrees
• 3 dB Beamwidth - Elevation: 6 degrees
• Electrical Downtilt: -2 degrees
• Polarization: Horizontal and Vertical
• Port-to-Port Isolation: > -30 dB
• Front-to-Front Ratio: 35 dB
• Maximum Input Power: 5 W
• Input Impedance: 50 ohms
• Mounting Connectors: 2 x RPSMA
• Mounting Hardware: Included for mounting to mast diameters 2" to 4" (5 cm to 10 cm), -10 to +5 degree tilt, Hardware included to connect ePMP access point to back of antenna body
• Physical Dimensions (Antenna Body): 23.4" (H) x 6.2" (W) x 4.3" (D) (584 mm x 157 mm x 110 mm)
• Physical Dimensions (with ePMP 1000 Access Point): 23.4" (H) x 6.2" (W) x 5.9" (D) (593 mm x 157 mm x 150 mm)
• Weight: Antenna Body: 8.8 lbs. (4.0 Kg). With ePMP 1000 Access point and Mounting Brackets: 11.6 lbs. (5.26 Kg)
• Environmental: IP65
• Radome Material: UV Protected ABS
• Operating Temp: -40°C to 60°C (-40°F to 140°F)
Product Includes

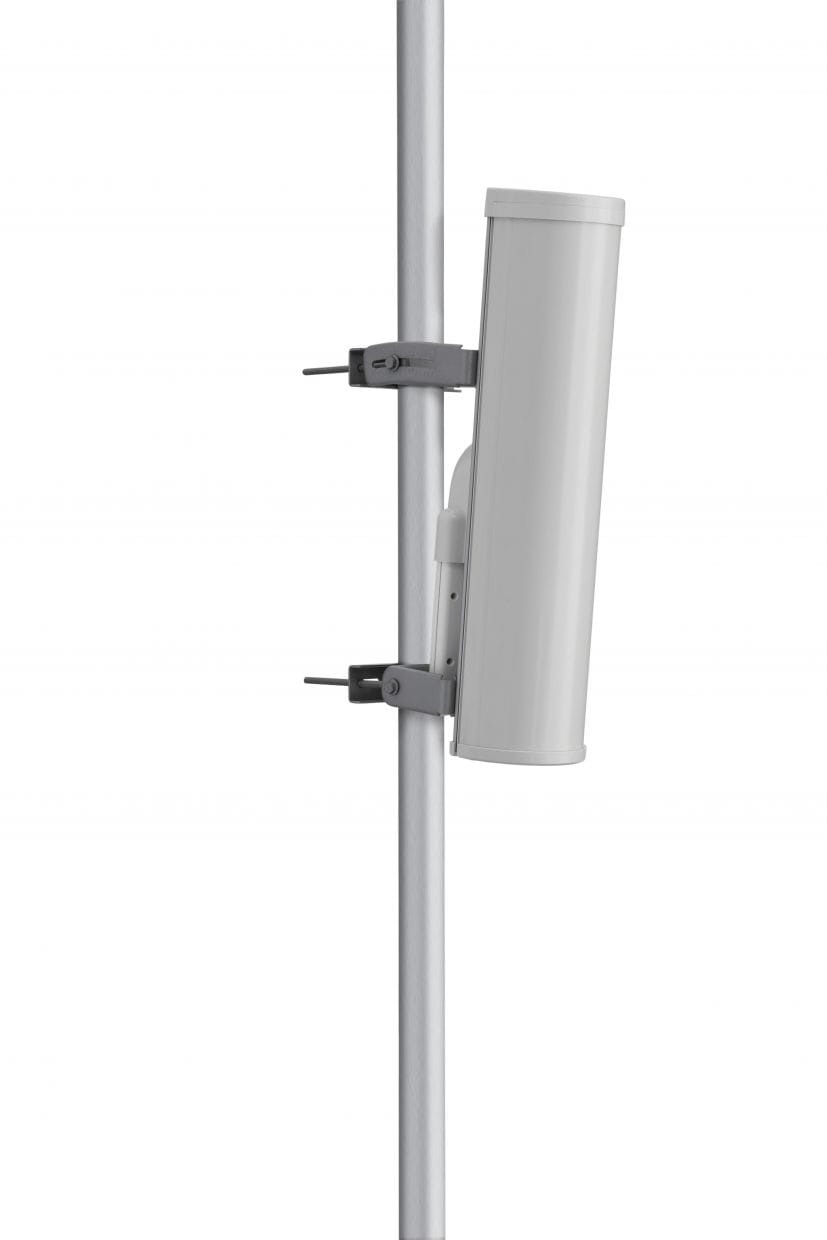

• (1) ePMP 5GHz 90/120° Sector Antenna
• (2) Pole Brackets
• (2) Front Mast Clamps
• (2) Rear Mast Clamps
• (4) M8x160 Bolts
• (4) M8x12 Screws
• (8) M8 Nuts
• (1) Antenna Body
• (1) ePMP 1000 Holder
• (1) ePMP 2000 Sector Mount
• (1) Environmental Cover
• (2) RP-SMA Cables
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 5 GHz |
| Horizontal beam width | 90° |
| Vertical beam width | 6° |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 18 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Sector antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-SMA |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Pole |
| Purpose What the product is used for. | Outdoor |
| Front to back ratio | 35 dB |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 157 mm |
| Depth The distance from the front to the back of something. | 110 mm |
| Height The measurement of the product from head to foot or from base to top. | 594 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.7 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| SKU | 456812 |
| MPN | C050900D021B |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Hardware Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
