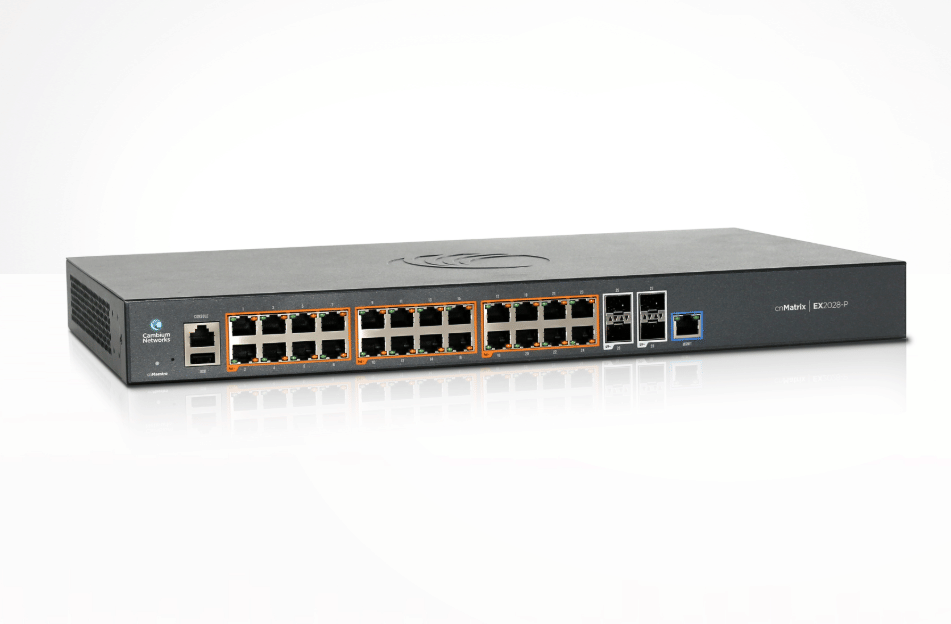

Cambium cnMatrix EX2028-P 24-Port 4 SFP+ Intelligent Ethernet PoE Switch

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The switch models deliver flexibility with 4–10 Gbps (SFP+) uplinks on the 28 port models, while offering 2 – 1 Gbps (SFP) uplink ports on the 10 port models.

Features

• Energy Efficient Gigabit

• Layer 3 (OSPF and RIP)

• Flexible Power over Ethernet (PoE) options

• Multiple port density options

Specifications

• Throughput: 128Gbps

• Non-Blocking: Yes

• PoE Enabled Ports: 24

• PoE Power Budget Units (watts): 400

• 10/100/1000 Ports: 24

• Uplink Ports: 4 SFP+

• Serial Console: Yes

• USB: Yes

• OOB Port: Yes

• Rack mount kit: Yes

• Internal Fans: 2

• Maximum Routes (Static): 64

• Dynamic Routing: 512

• LACP/Trunking: 8 LAGs / 8 Links per 9216

• QoS Priority Queues: 8

• Maximum IGMP Multicast groups: 256

• Max PVRST: 32
