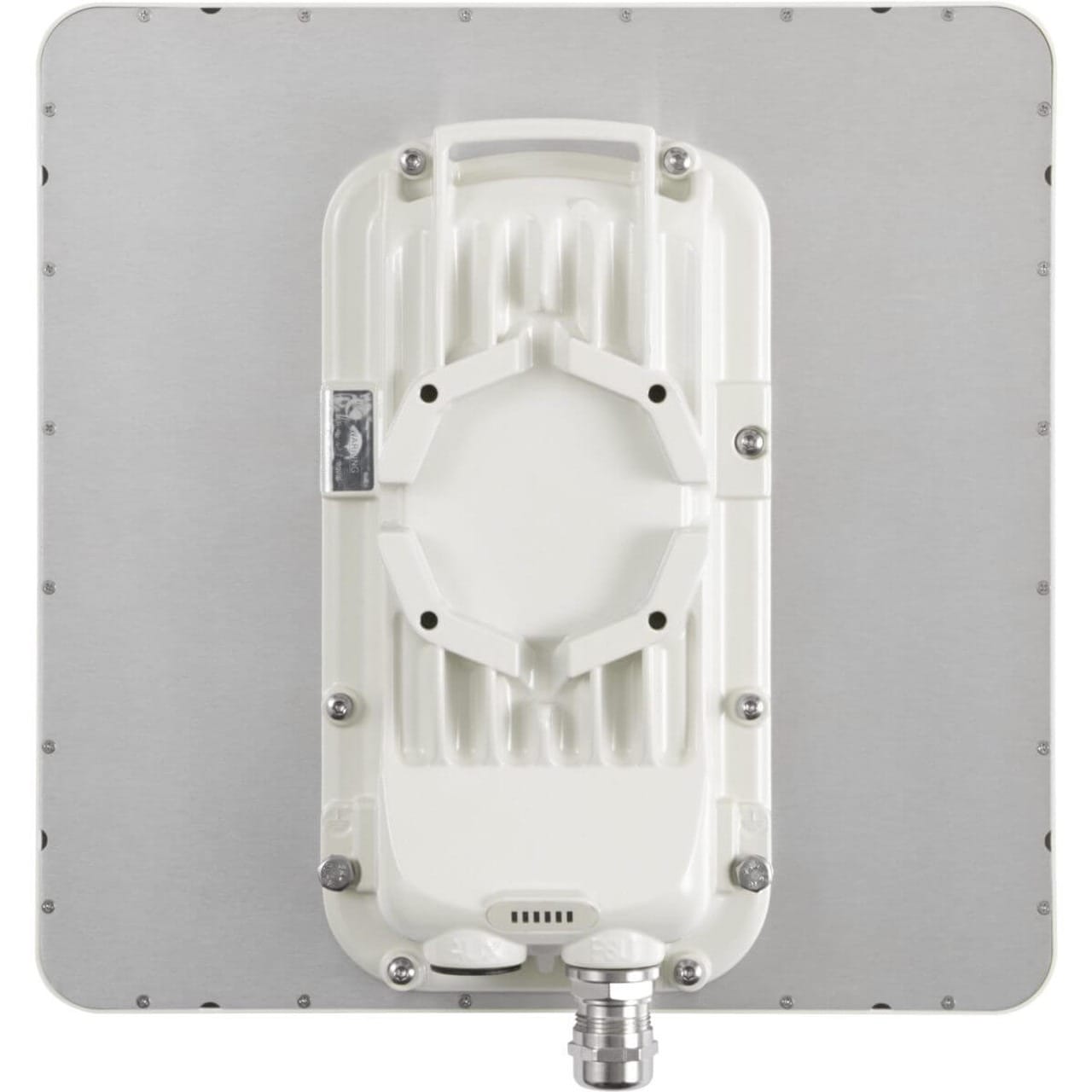

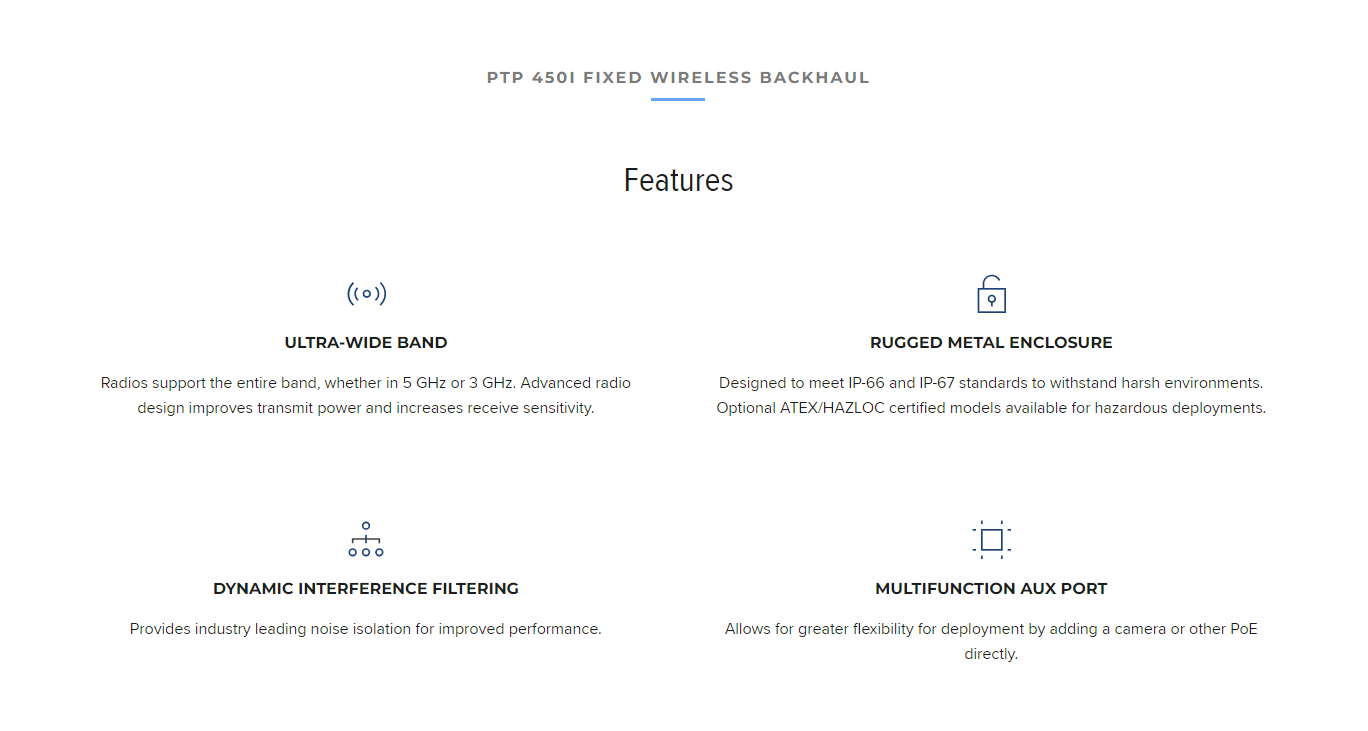

The ultra-wide band PTP 450i Integrated features dynamic interference filtering, IP-66/67 enclosure, and multifunction AUX port. Available as PMP or PTP.
| Features | |
| 5 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 300 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 4.9 - 5.925 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3at |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Duplex mode auto-negotiation |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDM |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Quality of Service (QoS) support |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES, FIPS 197 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Management protocols | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 48 - 59 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 15 W |
| Power consumption (max) The maximum amount of power used by the device. | 19 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Metal |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| Certification | 109A0-50450I, QWP-50450I, EN 301 893 v1.8.1, EN 302 625 v1.1, EN 302 502 v1.2.1 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 23 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 310 mm |
| Depth The distance from the front to the back of something. | 64 mm |
| Height The measurement of the product from head to foot or from base to top. | 310 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.5 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| SKU | 781424 |
| MPN | C050045B002B |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
