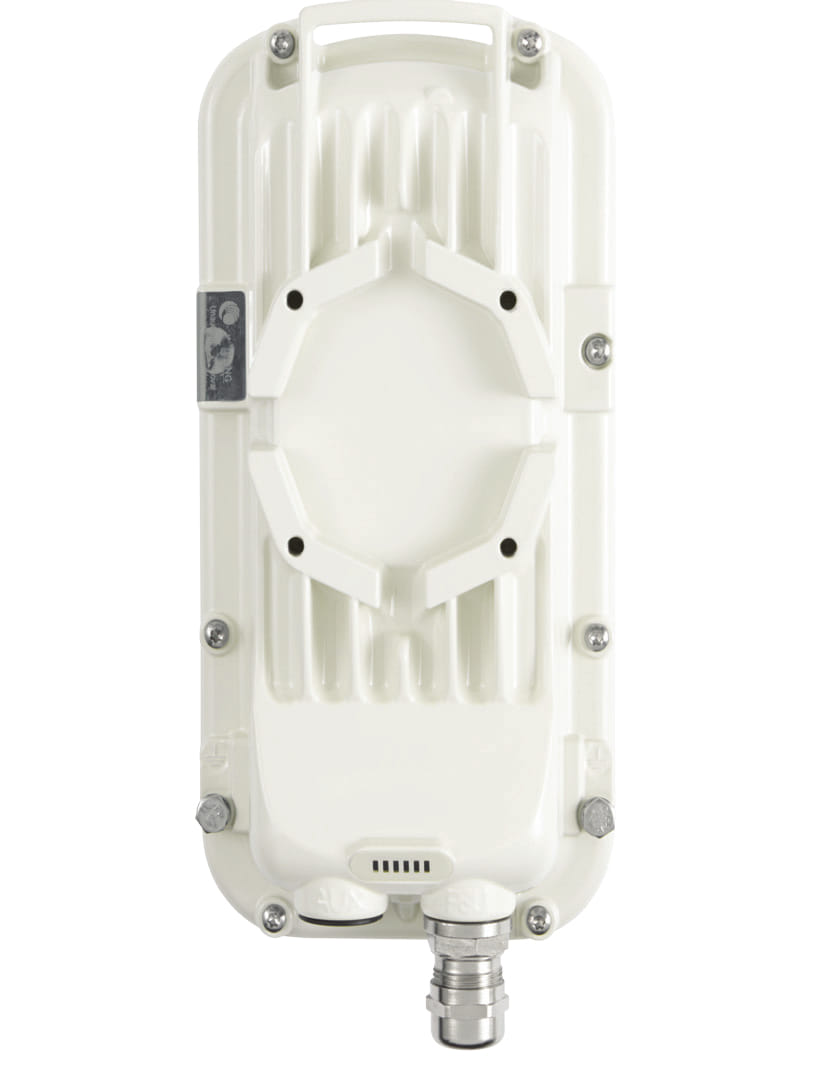

Cambium Networks PTP 450i, 300 Mbit/s, 100,1000 Mbit/s, 3 GHz, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3at, Multi User MIMO, OFDM
Cambium Networks industry-leading 450 platform includes the all new PMP 450i and PTP 450i radios. The 450i product platform is the most scalable industrial-grade wireless broadband solution available.
Key Features:
- Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
- Now capable of over 300 Mbps throughput in a 40 MHz channel.
Key Features:
- Ultra-wide band radios support the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.
- Rugged metal enclosure designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.
- Dynamic Interference Filtering to provide industry leading noise isolation for improved performance
- Updated FPGA and SoC architecture triples the processing power compared to PMP 450
- Multifunction AUX port allows for greater flexibility for deployment by adding a camera or other PoE directly.
- Now capable of over 300 Mbps throughput in a 40 MHz channel.
| Features | |
| 5 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 300 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 3 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3at |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Duplex mode auto-negotiation |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDM |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 16-QAM, 64-QAM, 256-QAM, QPSK |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Quality of Service (QoS) support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 350400 h |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES, FIPS 197 |
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 48 - 59 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 15 W |
| Power consumption (max) The maximum amount of power used by the device. | 19 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Metal |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| Certification | 109W-0028, Z8H89FT0028, EN 30 2 326-2 v1.2.2 |
| Internal The product is built in. |
|
| Antenna | |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 310 mm |
| Depth The distance from the front to the back of something. | 64 mm |
| Height The measurement of the product from head to foot or from base to top. | 310 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.5 kg |
| Other features | |
| Maximum operating distance The maximum distance from which you can operate the device. | 200000 m |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| SKU | 779729 |
| MPN | C030045B002A |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
