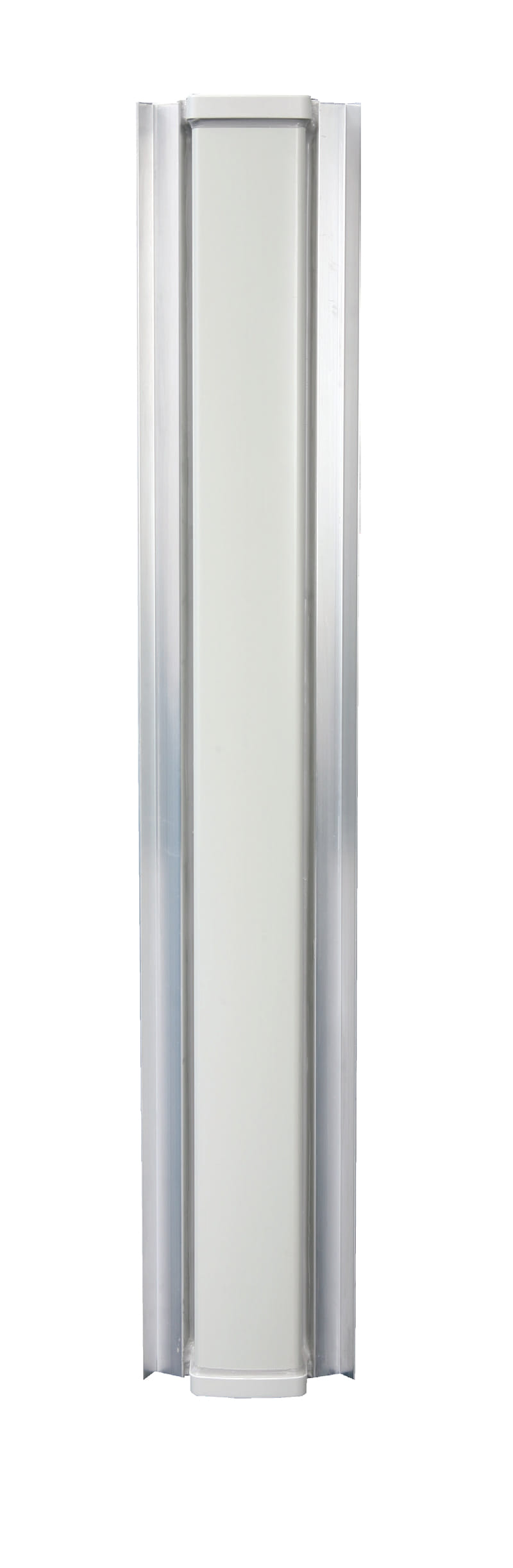

Cambium Networks PMP 450, 16 dBi, 3.3 - 3.8 GHz, Sector antenna, N-type, Female, Dual polarization
A wireless broadband communication system has many components; each one contributes to the overall performance and ultimately affects operator revenues. Well-designed components that complement each other will improve overall network performance, increase the longevity of the system and optimize operators' profits.
One of the principal considerations in a communications system is antennas. Their impact is enormous - using the wrong antenna will degrade the overall performance of an otherwise well engineered system, resulting in customer dissatisfaction.
At Cambium Networks, our antennas are engineered to address most typical network and terrain challenges and built to the highest level quality and reliability. The 3 GHz Access Point 90 degree sector antennas are specifically designed for use with the 3 GHz PMP 450 platform of products. As a result of their consistent front-to-back ratio in combination with power control and high gain, these antennas deliver optimized performance, including maximized spectral efficiency and easy installation.
One of the principal considerations in a communications system is antennas. Their impact is enormous - using the wrong antenna will degrade the overall performance of an otherwise well engineered system, resulting in customer dissatisfaction.
At Cambium Networks, our antennas are engineered to address most typical network and terrain challenges and built to the highest level quality and reliability. The 3 GHz Access Point 90 degree sector antennas are specifically designed for use with the 3 GHz PMP 450 platform of products. As a result of their consistent front-to-back ratio in combination with power control and high gain, these antennas deliver optimized performance, including maximized spectral efficiency and easy installation.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 3.3 - 3.8 GHz |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 16 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Sector antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | N-type |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Survival wind speed | 216 km/h |
| Wind load | 249 |
| Downtilt | 11° |
| Isolation | 25 dB |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 30 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 123 mm |
| Depth The distance from the front to the back of something. | 68 mm |
| Height The measurement of the product from head to foot or from base to top. | 715 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3 kg |
| SKU | 837237 |
| MPN | C030045D901A |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cambiumnetworks.com/ |
