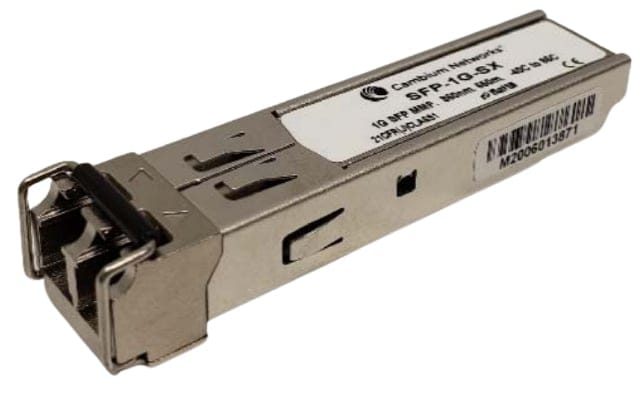

Cambium Networks SFP-1G-SX, Fiber optic, 1000 Mbit/s, SFP, 550 m, 850 nm, 3,3 V
This SFP transceiver is a high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported |
 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 550 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Digital Diagnostics Monitoring (DDM) |
|
| Power | |
| Maximum voltage | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 85 °C |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| SKU | 838925 |
| MPN | SFP-1G-SX |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
