Cambium Networks SFP-10G-COPPER, Copper, 10000 Mbit/s, RJ-45, 30 m, IEEE 802.3an, IEEE 802.3az, 3.3 V

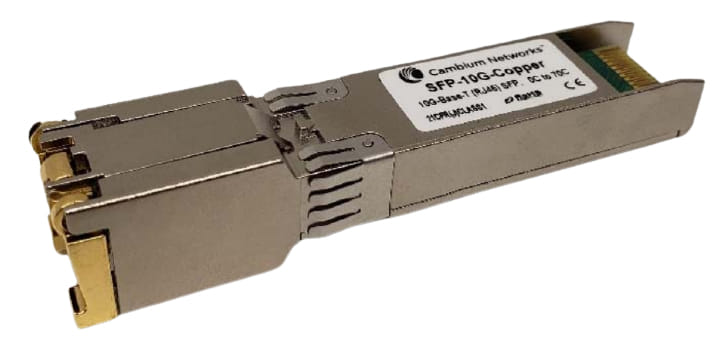

This Small Form Pluggable Plus (SFP+) transceiver is a high performance, cost effective module compliant with the 10 Gigabit Ethernet and 10G BASE-T standards as specified in IEEE 802. 3-2015 and IEEE 802.3an, which supporting 10Gbps data-rate up to 30 meters reach over shielded twistedpair category 6A cable. The module supports 10Gbps full duplex data-links with 16-level Pulse Amplitude Modulation (PAM) signals. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial bus. The physical IC can also be accessed via 2wire serial bus at address ACh.
| Performance | |
| SFP transceiver type | Copper |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Interface type | RJ-45 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 30 m |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3an, IEEE 802.3az |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Features | |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| SKU | 761420 |
| MPN | SFP-10G-COPPER |
| Brand | Cambium |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
