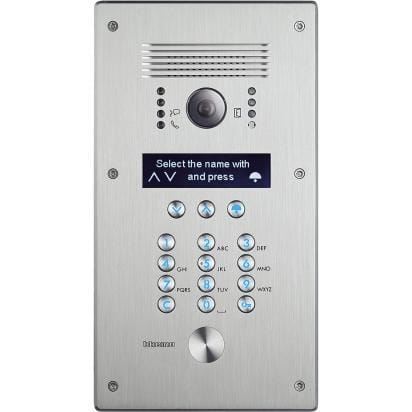

Monobloc vandal-resistant 2 wires digital call video stainless steel entrance panel. Flush mounted or wall mounted installation (with specific box item 308026 sold separately). The item includes: flush mounted vandal-resistant steel box, audio and video module with wide angle colour camera, integrated graphic display and alphanumeric keypad for direct apartment call, fast address book search, and door lock release using a code. Presetting for the installation of a T25 Vigik reader, or a key switch. Backlit display and BLUE keys. It is possible to store up to 4000 residents names. Visual, sound or control speech synthesis communication status notification, for example: call active, system busy, door lock status. Direct control of an electric door lock 18V-4A impulsive, 250 mA holding current (30 ohm max). System power supply cuts do NOT cause the loss of memory data. Selectable display menu languages are: Italian, English and French.
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Display | |
| Backlight display A backlight is a form of illumination used in liquid crystal displays (LCDs). As LCDs do not produce light themselves - unlike for example Cathode ray tube (CRT) displays - they need illumination (ambient light or a special light source) to produce a visible image. Backlights are used in small displays to increase readability in low light conditions such as in watches, and in computer displays and LCD televisions to produce light in a manner similar to a CRT display. |
|
| Camera | |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 124° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 100° |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| On Screen Display (OSD) languages | English, French, Italian |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| IK code | IK07 |
| Housing material What the casing of the product is made of. | Stainless steel |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 250 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -25 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 58 mm |
| Height The measurement of the product from head to foot or from base to top. | 330 mm |
| Packaging data | |
| Outdoor unit included |
|
| SKU | 813414 |
| MPN | 308026 |
| Brand | BTicino |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.bticino.com/ |
