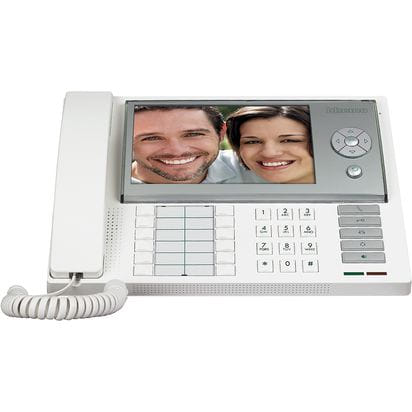

BTicino 2Wire SCS Switchboard

Guard station for 2 wires audio and video door entry system. Allows access to various services (video door entry functions, door lock/staircase light management and apartment alarm monitoring) directly from the keypad or via the intuitive icon menu. The switchboard is supplied with an integrated table top supporting frame and also features a 7" colour LCD display, receiver and speaker phone, dedicated keys for the main functions and keys which can be configured. The programming can be carried out directly from the device or via PC with TiSwitchBoardDevice software (supplied). The device can manage the phonics of the riser EP (i.e. wired downstream of interface 346851); it cannot however manage the apartment EP (i.e. wired downstream of interface 346850). The use of an additional power supply is recommended. It is possible to connect up to a max. of 16 guard stations (configured from 0 to 15). WARNING: the guard station cannot be used in systems with 2 wires-IP interface 346891. The new HIERARCHICAL mode is available only with the entrance panels of the following series: Sfera New, Sfera Robur, Linea 100,Linea 300.
