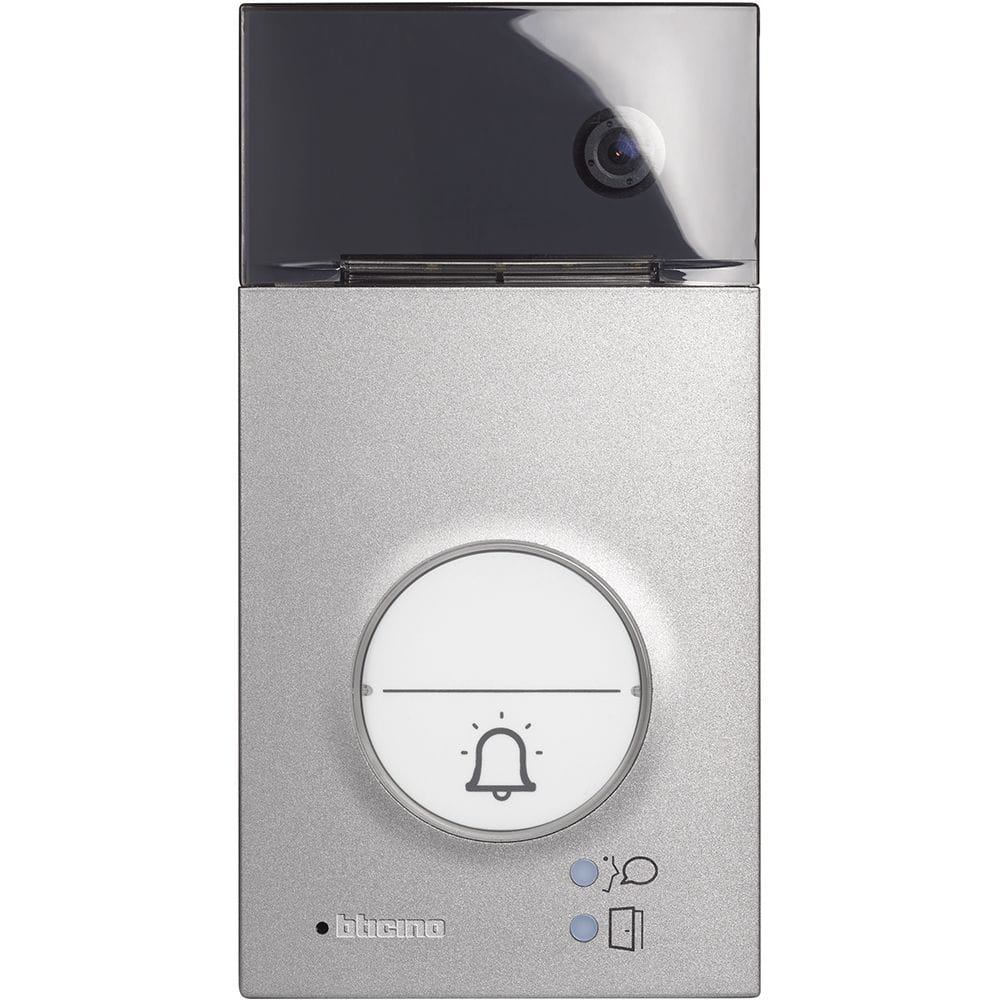

bticino 343081, Call button module, Silver, bticino, Wall, IK10, IP54
Linea 3000 wall mounted 2-Wires video pushbutton panel with Zamak front cover and wide angle colour camera. Fitted with white LED for the lighting of the shooting field in low light conditions. Can be set up for one or two family installation. It provides the possibility of opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive, 250 mA holding current, 30 ohm max). White LED backlit name plate. Protection degree IP54
| Features | |
| Product type The sub-category of the product. | Call button module |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Brand compatibility What other brands this brand can be used with. | bticino |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| IK code | IK10 |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| Compatibility The other products, software and hardware this product can be used with. | 330 Linee TV H / 330 TV Lines H |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -25 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 26.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 190 mm |
| SKU | 746711 |
| MPN | S4762A |
| Brand | BTicino |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
