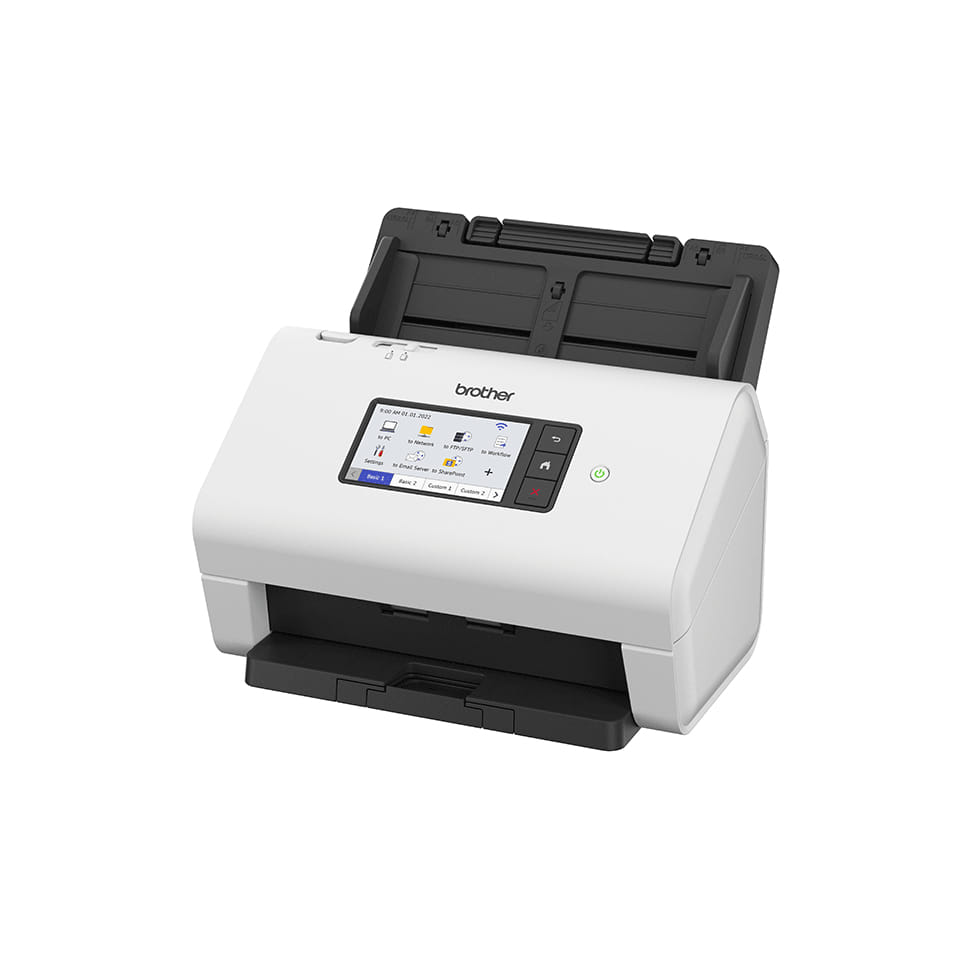

Brother ADS-4900W, 215.9 x 355.6 mm, 600 x 600 DPI, 1200 x 1200 DPI, 48 bit, 24 bit, 8 bit
With high-performance wired and wireless connectivity and dedicated user touchscreen. Ideal for high-volume, secure batch scanning for collaborative and complex workflows.
For uninterrupted high-volume, batch scanning. With the simplicity of one-touch scanning, securely capture, send and receive business documents with ease, whether they're at home or in the office.
Fast and reliable
With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4900W has the largest sheet ADF capacity (100 sheets) and is the fastest in the range, scanning up to 60 pages per minute, or one every second. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.
Simple and intuitive
Set up a dedicated user interface with one-touch scanning and the ability to add up to 56 shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.
Advanced connectivity
With 5GHz wireless connectivity, network, USB3.0 and USB host, you can securely scan documents and share with colleagues.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moir reduction tools.
The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.
Brother ScanEssentials
Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.
The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
For uninterrupted high-volume, batch scanning. With the simplicity of one-touch scanning, securely capture, send and receive business documents with ease, whether they're at home or in the office.
Fast and reliable
With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4900W has the largest sheet ADF capacity (100 sheets) and is the fastest in the range, scanning up to 60 pages per minute, or one every second. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.
Simple and intuitive
Set up a dedicated user interface with one-touch scanning and the ability to add up to 56 shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.
Advanced connectivity
With 5GHz wireless connectivity, network, USB3.0 and USB host, you can securely scan documents and share with colleagues.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moir reduction tools.
The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.
Brother ScanEssentials
Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.
The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
| Scanning | |
| Maximum scan size | 215.9 x 355.6 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Design | |
| Scanner type Indicates the type of scanner this product is. | ADF + Sheet-fed scaner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 10.9 cm (4.3") |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Colour display |
|
| Control type The way in which the device is controlled. | Touch |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Dual CIS |
| Light source | LED |
| Scan file formats | JPEG,PDF,TIFF |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 9000 pages |
| Maximum duty cycle The maximum number of prints/copies made by a printer/copier in a fixed period. | 180000 pages per month |
| Scan to | E-mail Server, FTP, HTTP, PC, SMB |
| Scan drivers | ISIS,SANE,TWAIN,WIA |
| Ultrasonic sensor |
|
| Scanning noise level | 62 dB |
| Input capacity | |
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 100 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| Long-paper mode |
|
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Media thickness (min) | 0.08 mm |
| Card thickness (max) | 1.32 mm |
| Paper tray media weight | 25 - 413 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5 m |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 34 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 7.7 W |
| Power consumption (off) | 0.1 W |
| Sleep mode |
|
| Power consumption (sleep) | 1.7 W |
| Output voltage | 24 V |
| Output current | 1.9 A |
| Auto power off The device switches itself off automatically after a certain activity, or after a certain time of inactivity. |
|
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, TLS, WEP, WPA-PSK, WPA2-AES, WPA2-PSK, WPA3 |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Supported network protocols (IPv4) | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP |
| IPv6 support |
|
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 393 mm |
| Package depth The distance from the front to the back of the packaging. | 288 mm |
| Package height The distance from the top to the bottom of the packaging. | 334 mm |
| Package weight Weight of the packaged product. | 4.2 kg |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 300 mm |
| Depth The distance from the front to the back of something. | 247 mm |
| Height The measurement of the product from head to foot or from base to top. | 236 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.37 kg |
| Other features | |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| SKU | 606886 |
| MPN | ADS-4900W |
| Brand | Brother |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Slide/Sheetfed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.brother.com.au/ |
