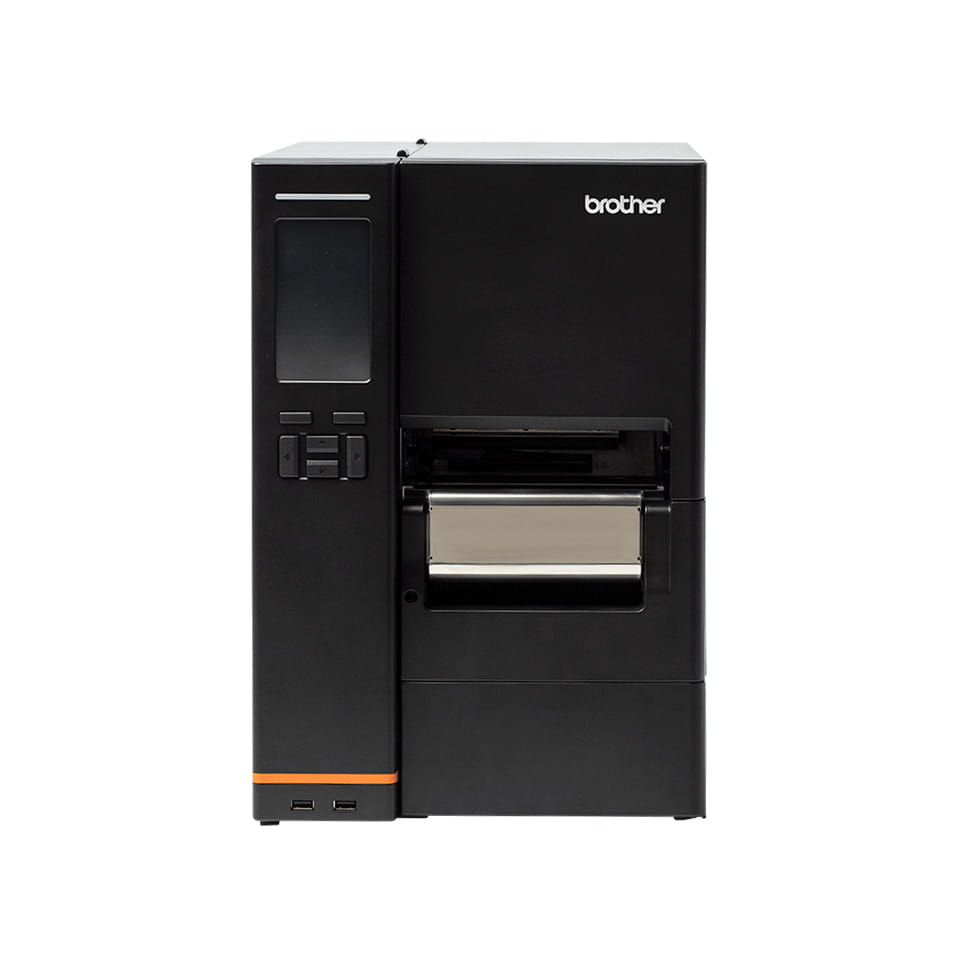

Brother TJ4522TN, Direct thermal / Thermal transfer, 300 x 300 DPI, 305 mm/sec, Wired, Black
Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer.
With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.
Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.
Rewind and collect
Automatically wind labels onto a roll during the printing process so you don t have to collect the labels when printed.
The Brother TJ-4522TN enables you to print as many labels as needed, for use whenever required.
Integrate with ease
With the Brother TJ label printers, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
High quality thermal printing
The TJ-4522TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time.
With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.
First-class user experience
Offering a touch panel display for instant feedback, the TJ-4522TN has been designed with the user in mind. Make life easy for your workers by troubleshooting issues in just a couple of taps.
Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.
An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.
In-built durability
Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.
The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.
With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.
Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.
Rewind and collect
Automatically wind labels onto a roll during the printing process so you don t have to collect the labels when printed.
The Brother TJ-4522TN enables you to print as many labels as needed, for use whenever required.
Integrate with ease
With the Brother TJ label printers, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
High quality thermal printing
The TJ-4522TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time.
With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.
First-class user experience
Offering a touch panel display for instant feedback, the TJ-4522TN has been designed with the user in mind. Make life easy for your workers by troubleshooting issues in just a couple of taps.
Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.
An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.
In-built durability
Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.
The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.
| Printing | |
| Print technology Indicates the method used to print by this product. | Direct thermal / Thermal transfer |
| Colour The main colour of the product. |
 |
| Maximum resolution Maximum printing resolution. | 300 x 300 DPI |
| Print speed The maximum speed at which a printer can print. | 305 mm/sec |
| Maximum printing width The maximum width of the image that can be printed. | 10.4 cm |
| Minimum print length | 5 mm |
| Maximum print length | 11.43 m |
| Paper handling | |
| Ribbon width | 11.4 cm |
| Ribbon length | 600 m |
| Maximum label width | 11.4 cm |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 20.3 cm |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Optional connectivity | Bluetooth, Wireless LAN |
| Performance | |
| Page description languages | DPL, EPL2, ZPL II |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E |
| Number of fonts | 8 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Colour display |
|
| Control type The way in which the device is controlled. | Buttons, Touch |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 276 mm |
| Depth The distance from the front to the back of something. | 502 mm |
| Height The measurement of the product from head to foot or from base to top. | 412 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.9 kg |
| Packaging content | |
| Cables included | AC |
| Software development kit (SDK) |
|
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| LED indicators | Error, Power, Status |
| Languages support The product has support (help) for languages. | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
| SKU | 777458 |
| MPN | TJ-4522TN |
| Brand | Brother |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.brother.com.au/ |
