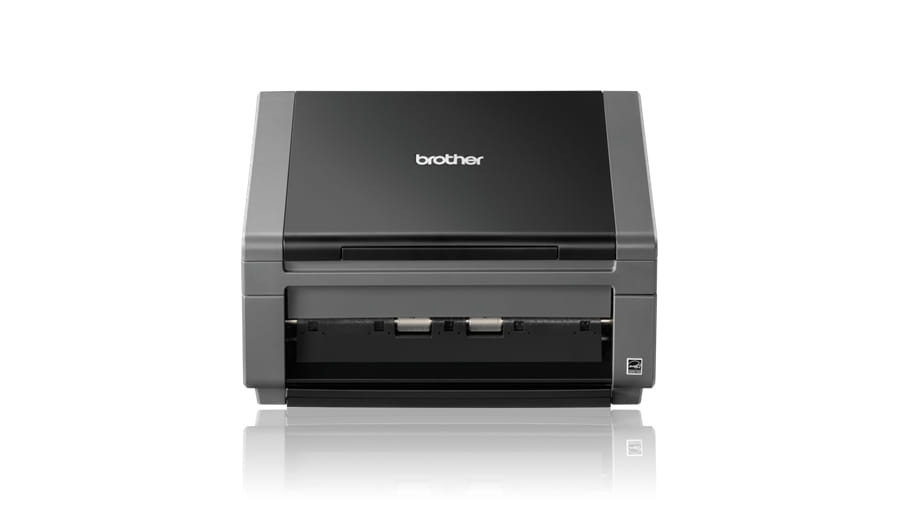

Brother PDS-5000, 218 x 5994mm, 600 x 600 DPI, 48 bit, 24 bit, 60 ppm, 60 ppm
At up to 120ipm (images per minute) 2-sided scanning and supported by a 100 sheet ADF (Automatic Document Feeder), the PDS-5000 is capable of handling high scan volumes for businesses digitally converting on a regular basis.
Expert paper handling with the Ultrasonic Multifeed Detection and Reverse Roller technology reduces the risk of damaged documents, offering outstanding reliability when batch scanning a variety of document types and weights. The PDS models can handle a range of media capacities up to embossed plastic card, addressing all user and departmental needs.
As well as paper handling upgrades, PDS-5000 has enhanced image processing. Advanced image processing features prepare and clean scanned documents, improving the quality of the scanned image for storing, editing and sharing. Business critical documents retain their original appearance, giving businesses a professional edge when printing or viewing scans with customers, or when storing for disaster recovery.
Expert paper handling with the Ultrasonic Multifeed Detection and Reverse Roller technology reduces the risk of damaged documents, offering outstanding reliability when batch scanning a variety of document types and weights. The PDS models can handle a range of media capacities up to embossed plastic card, addressing all user and departmental needs.
As well as paper handling upgrades, PDS-5000 has enhanced image processing. Advanced image processing features prepare and clean scanned documents, improving the quality of the scanned image for storing, editing and sharing. Business critical documents retain their original appearance, giving businesses a professional edge when printing or viewing scans with customers, or when storing for disaster recovery.
| Scanning | |
| Maximum scan size | 218 x 5994 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Design | |
| Scanner type Indicates the type of scanner this product is. | ADF scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Gray |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Performance | |
| Scan to | Cloud,E-mail,File,FTP,OCR,SMB |
| Button functions | Cancel,Off,On,Scan |
| Scan drivers | ICA,ISIS,SANE,TWAIN,WIA |
| Scanning noise level | 55 dB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Input capacity | |
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 100 sheets |
| Paper handling | |
| Scanning media types supported | Plain paper |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Auto Document Feeder (ADF) media weight | 28 - 400 g/m² |
| Multi feed detection Detector stopping the scan process as soon as 2 pages are scanned together. |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB 2.0,USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 59 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 19 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 1.6 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage The voltage (V) which is required to power the product. | 100-240 V |
| Current | 2 A |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 437 mm |
| Package depth The distance from the front to the back of the packaging. | 296 mm |
| Package height The distance from the top to the bottom of the packaging. | 320 mm |
| Package weight Weight of the packaged product. | 6.5 kg |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating temperature (T-T) | 41 - 95 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Energy Star certified This indicates that the product is compliant with Energy Star, which is an international standard for energy-efficient consumer products. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 316 mm |
| Depth The distance from the front to the back of something. | 187 mm |
| Height The measurement of the product from head to foot or from base to top. | 183 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.7 kg |
| Packaging content | |
| Cables included | AC,USB |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Drivers included |
|
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Nuance OmniPage 18SE NewSoft Presto! PageManager 9 |
| Other features | |
| Online services supported | Dropbox,Facebook,Flickr,Google Drive,Picasa |
| SKU | 321286 |
| MPN | PDS-5000 |
| Brand | Brother |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Slide/Sheetfed |
| Wired/Wireless | Wired |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.brother.com.au/ |
