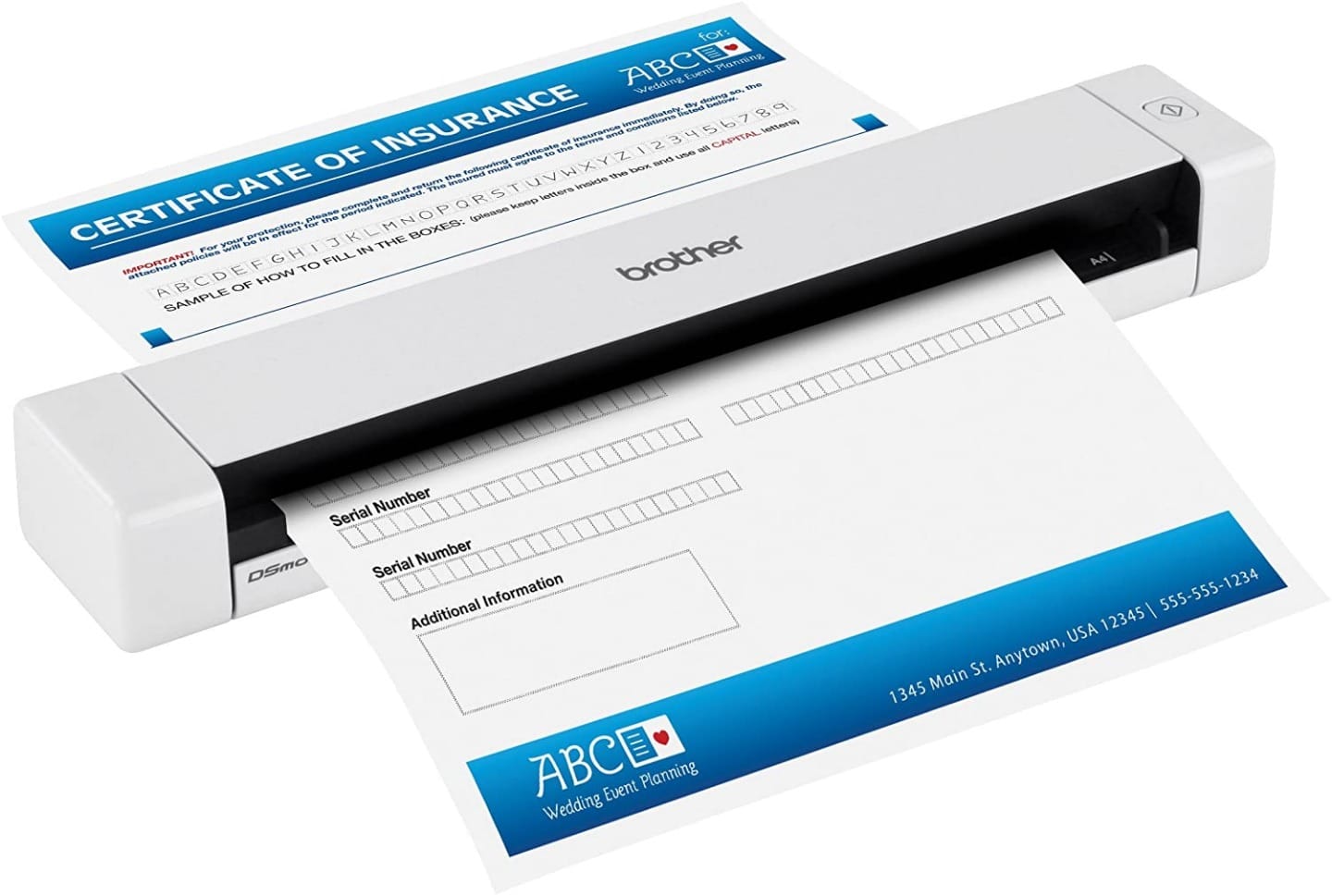

Mobile Document Scanner 7.5 ppm Mono & Colour (300Dpi) USB Bus Power
| Scanning | |
| Maximum scan size | 216 x 812.8 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
 |
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Film scanning Device made for scanning photographic film directly into a computer without the use of any intermediate printmaking. It provides several benefits over using a flatbed scanner to scan in a print of any size: the photographer has direct control over cropping and aspect ratio from the original, unmolested image on film; and many film scanners have special software or hardware that removes scratches and film grain and improves color reproduction from film. |
|
| Greyscale levels | 256 |
| Design | |
| Scanner type Indicates the type of scanner this product is. | Sheet-fed scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black,White |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CIS |
| Scan file formats | JPG,PDF,TIFF |
| Scan to | Cloud,File,FTP,OCR |
| Scan drivers | TWAIN,WIA |
| Scanning noise level | 50 dB |
| Input capacity | |
| Standard input capacity The number of sheets of paper that can be held by a device. | 1 sheets |
| Paper handling | |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Multi feed detection Detector stopping the scan process as soon as 2 pages are scanned together. |
|
| ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents. | A4,A5,A6,A7,A8 |
| Letter |
|
| Legal |
|
| ISO B-series sizes (B0...B9) | B8,B5,B6,B7 |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB 1.1,USB 2.0 |
| Power | |
| Power supply type The type of power supply which this product uses. | USB |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.5 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 1 W |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 352 mm |
| Package depth The distance from the front to the back of the packaging. | 232 mm |
| Package height The distance from the top to the bottom of the packaging. | 60 mm |
| Package weight Weight of the packaged product. | 980 g |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 291 mm |
| Depth The distance from the front to the back of something. | 52 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 400 g |
| Packaging content | |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | NewSoft Presto! Biz Card 6 PageManager 9 DSmobileCapture Nuance PaperPort 12SE Button Manager V2 |
| SKU | 320397 |
| MPN | DS-620 |
| Brand | Brother |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Business Card/Handheld |
| Wired/Wireless | Wired |
| Product Use | General |
| Product Features | Portable |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.brother.com.au/ |
