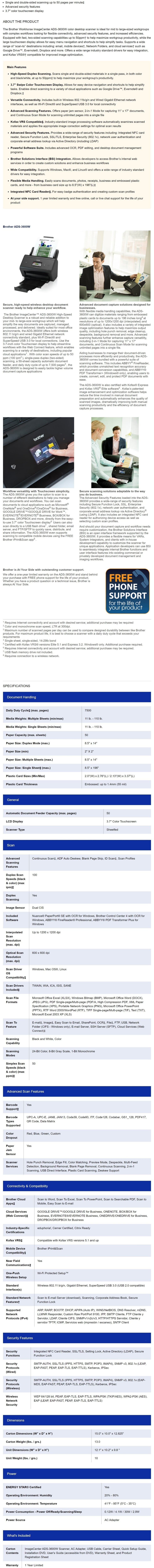

Brother ADS-3600W High-Speed Wireless Network 50ppm Document Scanner

Scanning
Maximum scan size	215.9 x 355.6 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth.	30 bit
Output colour depth	24 bit
Film scanning Device made for scanning photographic film directly into a computer without the use of any intermediate printmaking. It provides several benefits over using a flatbed scanner to scan in a print of any size: the photographer has direct control over cropping and aspect ratio from the original, unmolested image on film; and many film scanners have special software or hardware that removes scratches and film grain and improves color reproduction from film.
Greyscale levels	256
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (colour, A4)	50 ppm

Design
Scanner type Indicates the type of scanner this product is.	ADF scanner
Product colour The colour e.g. red, blue, green, black, white.	Black
Display The description of display that can includes display type, resolution, size etc.	LCD
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	9.3 cm (3.66")
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	Dual CIS
Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.	5000 pages
Scan to	Cloud,E-mail,FTP,File,HTTP,Image,OCR,PC,USB
Scan drivers	ICA,SANE,TWAIN,WIA
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	512 MB

Input capacity
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	50 sheets

Paper handling
Scanning media types supported	Business Card,Plastic Card,Recycled paper,Thick paper,Thin paper
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A3
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A3,A4,A5,A6,A7,A8

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.

Power
Power supply type The type of power supply which this product uses.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	30 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	4.9 W
Power consumption (off)	0.12 W
Power consumption (PowerSave)	2.9 W

Packaging data
Package width The distance from one side of the packaging to the other.	382 mm
Package depth The distance from the front to the back of the packaging.	254 mm
Package height The distance from the top to the bottom of the packaging.	330 mm
Package weight Weight of the packaged product.	6.3 kg

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	EAP-FAST,EAP-MD5,EAP-TLS,EAP-TTLS,HTTPS,IPSEC,PEAP,SMTP-AUTH,SNMP,SSL/TLS
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, Custom Raw Port/Port9100, SMTP Client, FTP Client and Server, LDAP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Scan), SNTP Client

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Certificates
Energy Star certified This indicates that the product is compliant with Energy Star, which is an international standard for energy-efficient consumer products.

Weight & dimensions
Width The measurement or extent of something from side to side.	306 mm
Depth The distance from the front to the back of something.	258 mm
Height The measurement of the product from head to foot or from base to top.	250 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	4.45 kg

Packaging content
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	Mac: Brother Control Center 2, ABBYY FineReader Professional Edition, Remote Set-up Windows: Brother Control Center 4, Nuance Paperport 14 SE, ABBYY FineReader v.11 Professional Edition, ABBYY PDF Transformer+, Remote Set-up, BRAdmin Professional 3
