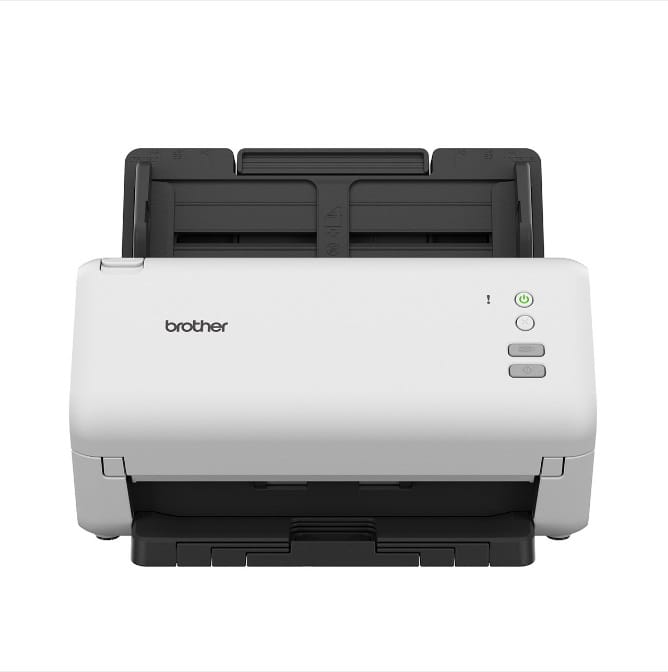

2-sided scanning up to 80ipm; Optical character recognition (OCR); Connect and scan using USB 3.0 and USB host
| Scanning | |
| Maximum scan size | 355.6 x 215.9 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| Design | |
| Scanner type Indicates the type of scanner this product is. | ADF scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Control type The way in which the device is controlled. | Buttons |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Dual CIS |
| Scan file formats | JPEG,PDF,TIFF |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 6000 pages |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Input capacity | |
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 60 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| Long-paper mode |
|
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Media thickness (min) | 0.08 mm |
| Card thickness (max) | 1.32 mm |
| Paper tray media weight | 40 - 200 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 21.6 cm |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 23 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 5.4 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50/60 Hz |
| Input voltage The voltage (V) which is required to power the product. | 100-240 V |
| Power consumption (sleep) | 1.4 W |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 391 mm |
| Package depth The distance from the front to the back of the packaging. | 215 mm |
| Package height The distance from the top to the bottom of the packaging. | 320 mm |
| Package weight Weight of the packaged product. | 3.31 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 299 mm |
| Depth The distance from the front to the back of something. | 215 mm |
| Height The measurement of the product from head to foot or from base to top. | 190 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.6 kg |
| SKU | 606865 |
| MPN | ADS-3100 |
| Brand | Brother |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Slide/Sheetfed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Return To Base Warranty |
| Warranty Contact | https://www.brother.com.au/ |
