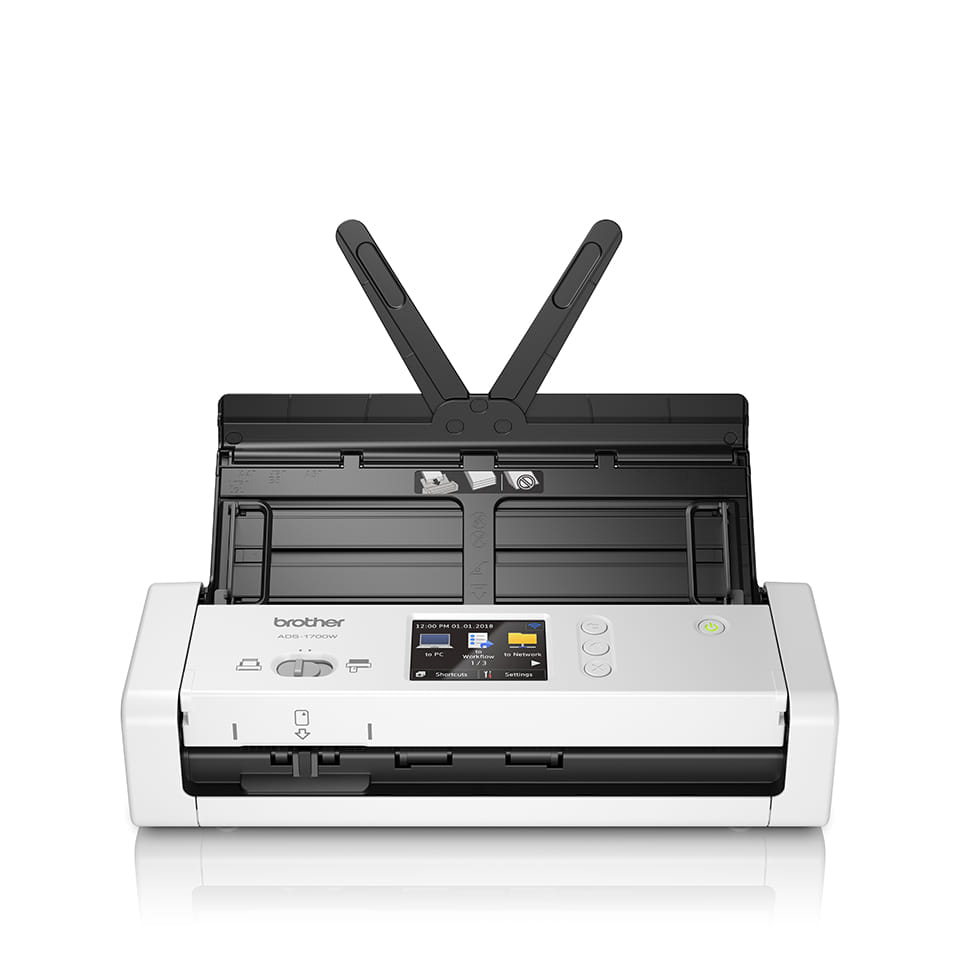

Brother ADS-1700W, 215.9 x 863mm, 600 x 600 DPI, 1200 x 1200 DPI, 48 bit, 24 bit, 25 ppm
With a 7.1cm LCD colour touchscreen and the ability to create up to 20 custom shortcuts to your frequently scanned-to destinations, the ADS-1700W is intuitive and easy to use. Its compact size is an ideal choice when desk space is limited, or place anywhere in the home or office and make use of its wireless connectivity feature using your mobile phone or tablet. With powerful paper-handling via the sheet-fed Automatic Document Feeder (ADF), 2-sided (duplex) documents, multi-page contracts or plastic ID cards can all be scanned quickly and easily.
Scanning
Maximum scan size
215.9 x 863 mm
Optical scanning resolution
How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.
600 x 600 DPI
Enhanced scan resolution
1200 x 1200 DPI
Colour scanning
Indicates whether this product scans in colour.
Duplex scanning
Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Input colour depth
Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth.
48 bit
Output colour depth
24 bit
Greyscale levels
256
ADF scan speed (b/w, A4)
25 ppm
ADF scan speed (colour, A4)
25 ppm
Design
Scanner type
Indicates the type of scanner this product is.
ADF scanner
Product colour
The colour e.g. red, blue, green, black, white.
Black,White
Display
The description of display that can includes display type, resolution, size etc.
LCD
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
7.11 cm (2.8")
Touchscreen
A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Colour display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Performance
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
Dual CIS
Scan file formats
JPEG,PDF,TIFF
Daily duty cycle (max)
The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.
1000 pages
Maximum duty cycle
The maximum number of prints/copies made by a printer/copier in a fixed period.
10000 pages per month
Scan to
E-mail,E-mail Server,FTP,File,Image,OCR,USB
Scan drivers
ICA,SANE,TWAIN,WIA
Barcode reader
Scanning noise level
62 dB
Sound pressure level (max)
50 dB
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
512 MB
Input capacity
Auto document feeder (ADF) input capacity
Number of sheets this product can hold in its ADF tray; expressed in sheets
20 sheets
Paper handling
Card thickness (max)
1.24 mm
Scanning media types supported
Business Card,Plain paper,Plastic Card,Thick paper
Maximum ISO A-series paper size
The maximum paper size the device can handle, defined by ISO A-series.
A4
Auto Document Feeder (ADF) media weight
51 - 200 g/m²
ISO A-series sizes (A0...A9)
Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.
A4
Maximum scan width
21.6 cm
Maximum scan length
86.3 cm
Ports & interfaces
USB port
The device features a socket into which a USB cable can be plugged.
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)
USB connector type
The type of USB connector/port that this product has.
Micro-USB,USB Type-B
Standard interfaces
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB 2.0,USB 3.2 Gen 1 (3.1 Gen 1),Wireless LAN
Power
Power supply type
The type of power supply which this product uses.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
9 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
4.5 W
Power consumption (off)
0.1 W
AC input frequency
100 - 240 Hz
Sleep mode
Input voltage
The voltage (V) which is required to power the product.
50 - 60 V
Power consumption (sleep)
1.6 W
Packaging data
Package width
The distance from one side of the packaging to the other.
380 mm
Package depth
The distance from the front to the back of the packaging.
157 mm
Package height
The distance from the top to the bottom of the packaging.
200 mm
Package weight
Weight of the packaged product.
1.9 kg
Network
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
802.11b,802.11g,Wi-Fi 4 (802.11n)
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK
Wi-Fi Direct
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
DHCP, APIPA (Auto IP), WINS/ NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP/SFTP Client, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, Web Services(Scan), ICMP, SNTP Client, RA
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 35 °C
Operating relative humidity (H-H)
20 - 80%
Certificates
Energy Star certified
This indicates that the product is compliant with Energy Star, which is an international standard for energy-efficient consumer products.
Certification
GS Mark
Weight & dimensions
Width
The measurement or extent of something from side to side.
300 mm
Depth
The distance from the front to the back of something.
103 mm
Height
The measurement of the product from head to foot or from base to top.
83 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.41 kg
Packaging content
Manual
Cables included
AC,USB
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
AC adapter included
Other features
Web-based management
Using a website/web application to manage something.
