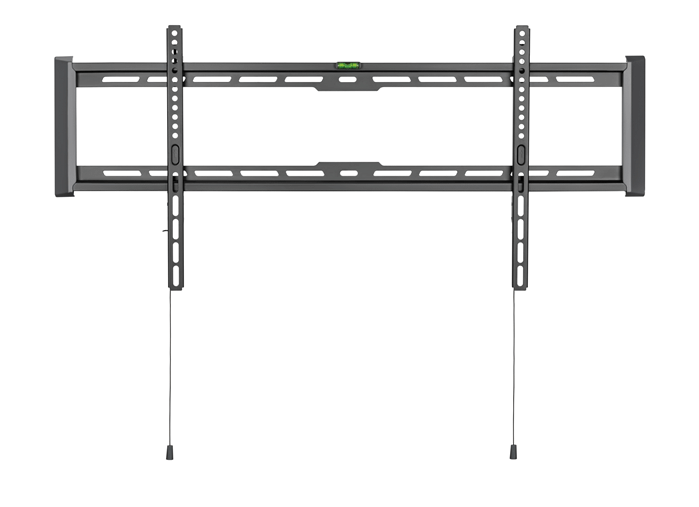

BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43'-90' up to 75KG, VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Black
BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43'-90' up to 75KG, VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Black
FEATURES:
- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Ultra-slim design
- Decorative Covers: for a more elegant look
- Heavy-Duty Construction: provides extra strength and durability
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Bubble level included
- Magnetic Strap End: hides itself when not in use.
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel, Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059' cold-rolled sheet,Wall Plate THK=0.059' cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 27x970x430mm (1.1'x38.2'x16.9')
Fit Screen Size: 43'-90'
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: 868x405
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 27mm (1.1')
Screen Level: 8mm
Tilt Range: +4Deg-10Deg
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
FEATURES:
- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Ultra-slim design
- Decorative Covers: for a more elegant look
- Heavy-Duty Construction: provides extra strength and durability
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Bubble level included
- Magnetic Strap End: hides itself when not in use.
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel, Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059' cold-rolled sheet,Wall Plate THK=0.059' cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 27x970x430mm (1.1'x38.2'x16.9')
Fit Screen Size: 43'-90'
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: 868x405
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 27mm (1.1')
Screen Level: 8mm
Tilt Range: +4Deg-10Deg
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
| SKU | 823766 |
| MPN | LP77-48F |
| Brand | Brateck |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://brateck.com.au/ |
