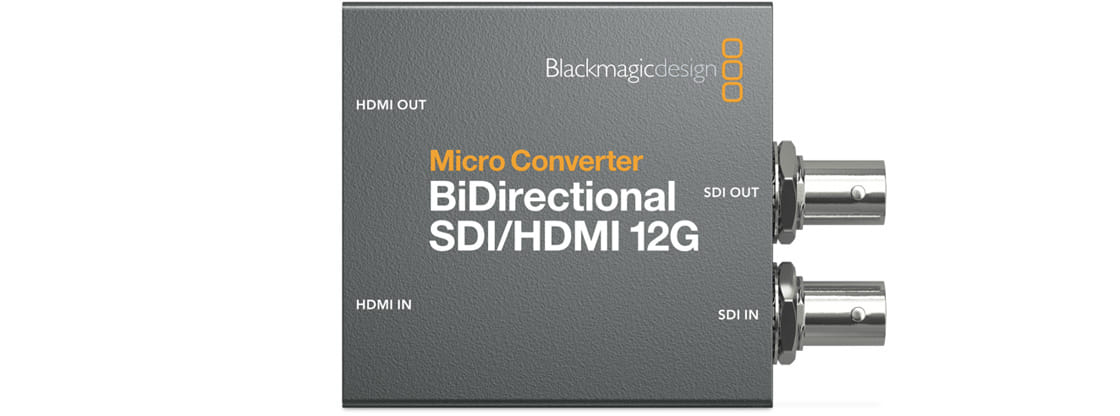

Blackmagic Micro Converter BiDirect SDI/HDMI 12G 20-Pack
Item No:
761768
MPN:
CONVBDC/SDI/HDMI12G-20PK
$5,180.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Now you can convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60 Each conversion direction can be a different SD, HD or Ultra HD video standard, it's like getting two converters in one The all metal durable design is perfect for live production and broadcast. Plus it's small enough to be hidden and used anywhere. It can be powered from any USB-C socket
| Features | |
| Converter type | Active video converter |
| Internal The product is built in. |
 |
| Reclocking |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Video | |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p, 2160p |
| Supported chroma subsampling | 4:2:2 |
| Colour space supported | YUV |
| Serial Digital Interface (SDI) standard | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| SDI auto-switching |
|
| Auto detection resolution |
|
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | SDI/HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | SDI/HDMI |
| Video in | 1 |
| Video out | 1 |
| BNC video output |
|
| BNC output ports | 1 |
| Power | |
| External power adapter |
|
| USB powered The device can be powered via a USB connection. |
|
| Input voltage The voltage (V) which is required to power the product. | 4.4 - 5.25 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| Technical details | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79.5 mm |
| Depth The distance from the front to the back of something. | 59 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 174 g |
| Packaging data | |
| Power supply included There is a power supply with this product. |
|
| Quantity The number of products there are. | 20 |
| SKU | 761768 |
| MPN | CONVBDC/SDI/HDMI12G-20PK |
| Brand | Blackmagic |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.blackmagicdesign.com/ |
