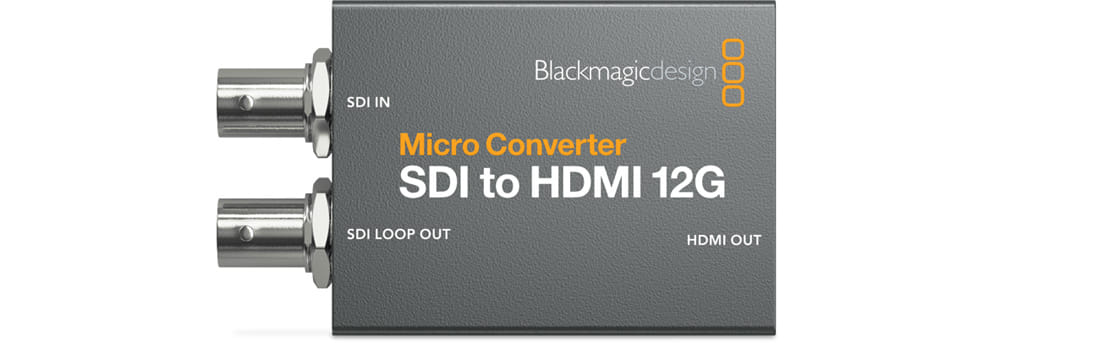

The world's smallest 12G-SDI to HDMI broadcast quality converter Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that's been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You can power it over USB from a television or a mobile phone charger
| Features | |
| Converter type | Active video converter |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
 |
| Video | |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p, 2560p |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC, PAL |
| Supported chroma subsampling | 4:2:2 |
| Colour space supported | YUV |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | SDI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | SDI/HDMI |
| BNC video output |
|
| BNC output ports | 1 |
| Power | |
| External power adapter |
|
| USB powered The device can be powered via a USB connection. |
|
| Input voltage The voltage (V) which is required to power the product. | 4.4 - 5.25 V |
| Technical details | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 78 mm |
| Depth The distance from the front to the back of something. | 45.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 150 g |
| Packaging data | |
| Power supply included There is a power supply with this product. |
|
| Quantity The number of products there are. | 20 |
| SKU | 761792 |
| MPN | CONVCMIC/SH12G-20PK |
| Brand | Blackmagic |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.blackmagicdesign.com/ |
