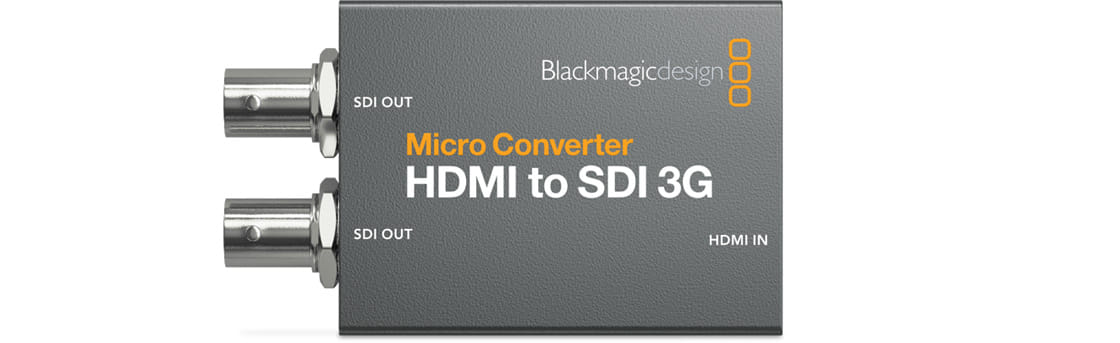

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
| Features | |
| Converter type | Passive video converter |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
 |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Video resolutions The amount of detail that can be seen in the video image. | 1280 x 720,1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p |
| Resolution at capture speed | 1280x720@50fps, [email protected], 1280x720@60fps, [email protected], 1920x1080@24fps, 1920x1080@25fps, [email protected], 1920x1080@30fps, 1920x1080@48fps, 1920x1080@50fps, 1920x1080@60fps |
| Supported chroma subsampling | 4:2:2 |
| Colour space supported | YUV |
| Serial Digital Interface (SDI) standard | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| Audio | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | SDI |
| Connection to PC Capability of connection product to PC. |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 4.4 - 5.25 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2 W |
| Technical details | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 79.5 mm |
| Depth The distance from the front to the back of something. | 45.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 24.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 150 g |
| Packaging data | |
| Power supply included There is a power supply with this product. |
|
| Quantity The number of products there are. | 20 |
| SKU | 761774 |
| MPN | CONVCMIC/HS03G-20PK |
| Brand | Blackmagic |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.blackmagicdesign.com/ |
