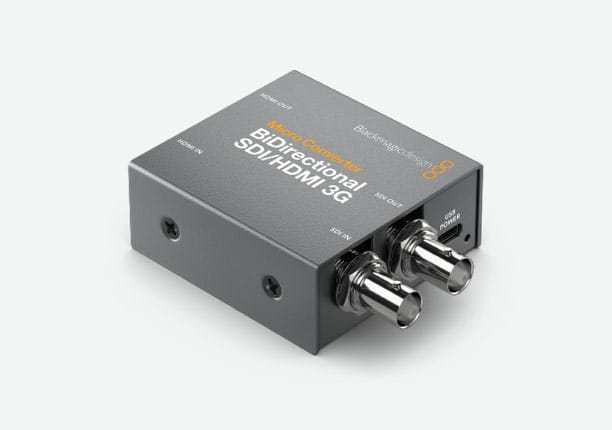

World's smallest bidirectional converter Convert SDI to HDMI and at the same time HDMI to SDI. Supports camera control protocol allowing Blackmagic Pocket Cinema Cameras to work with SDI switchers
Blackmagic Micro Converters
The world's smallest USB powered broadcast converters
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.
Blackmagic Micro Converters
The world's smallest USB powered broadcast converters
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.
| Features | |
| Converter type | Active video converter |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
 |
| Video | |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p, 2560p |
| Colour space supported | YUV |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | SDI/HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | SDI/HDMI |
| Power | |
| External power adapter |
|
| USB powered The device can be powered via a USB connection. |
|
| Input voltage The voltage (V) which is required to power the product. | 4.4 - 5.25 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.5 W |
| Technical details | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 81 mm |
| Depth The distance from the front to the back of something. | 59 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 174 g |
| Packaging data | |
| Power supply included There is a power supply with this product. |
|
| Quantity The number of products there are. | 20 |
| SKU | 761762 |
| MPN | CONVBDC/SDI/HDMI03G-20PK |
| Brand | Blackmagic |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.blackmagicdesign.com/ |
