Blackmagic Design Videohub Mini 6x2 12G, BNC, USB Type-C, Black, 720p, 1080i, 1080p, 2160p, 100 - 240 V, 50/60 Hz

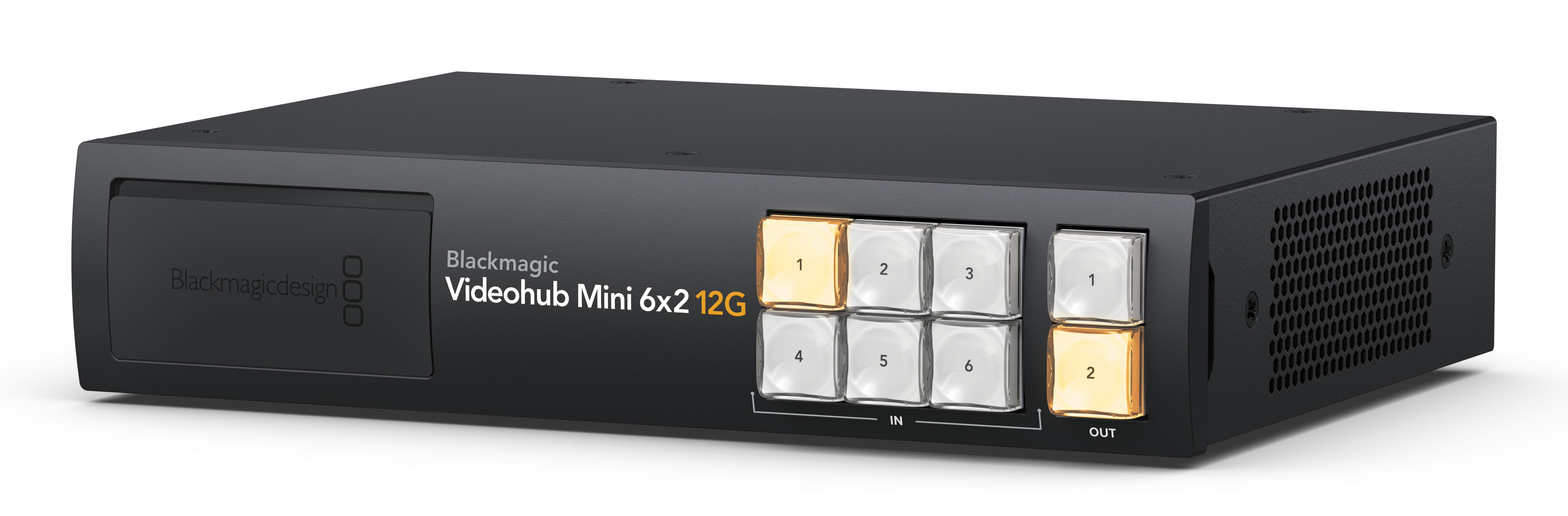

Blackmagic Videohub Mini 6x2 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 6 12G-SDI inputs and 2 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 1/2 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | BNC |
| USB port type | USB Type-C |
| BNC input ports Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. | 6 |
| BNC output ports | 2 |
| RJ-45 input ports | 1 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p, 2160p |
| LED indicators |
 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 18.5 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 210 mm |
| Depth The distance from the front to the back of something. | 173.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 46.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.32 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| SKU | 817786 |
| MPN | VHUBSMTI12G0602 |
| Brand | Blackmagic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.blackmagicdesign.com/ |
