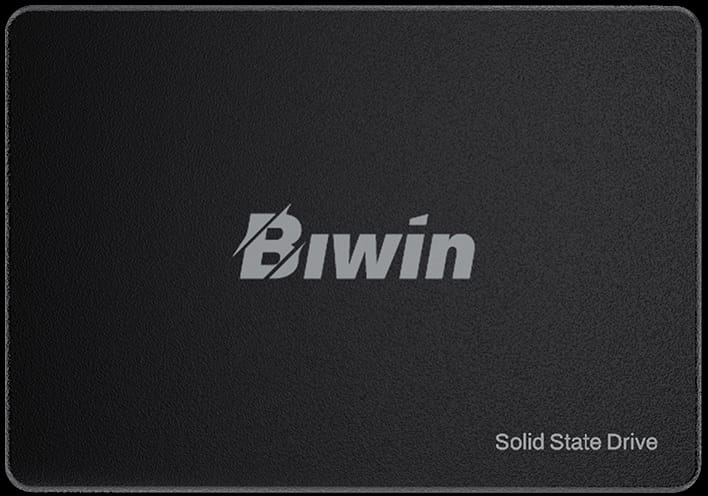

Biwin M100-256G SATA 2.5" Case Pack 30/120

BIWINM100-256G SATA 3.0 SSD 2.5 up to 550MB/s & 500MB/s Case pack
(Iner /Out) 30/120


Series
Biwin

Category
Solid State Drives

Model Name
Biwin M100

Form Factor
2.5''

Interface
SATA III

DRAM Cache
DRAM-less

Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB

Sequential Read (Up to)
500 MB/s, 550 MB/s, 550 MB/s, 550 MB/s, 550 MB/s

Sequential Write (Up to)
450 MB/s, 470 MB/s, 480 MB/s, 500 MB/s, 500 MB/s

Random Read 4K (Up to)
30K IOPS, 60K IOPS, 60K IOPS, 80K IOPS, 70K IOPS

Random Write 4K (Up to)
60K IOPS, 60K IOPS, 60K IOPS, 70K IOPS, 70K IOPS

Dimensions
100.00 x 77.00 x 6.70 mm

Weight
< 50 g

Operating Temperature
0DegC to +70DegC

Storage Temperature
-40DegC to +85DegC

MTBF
1,500,000 hours

Certifications
RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, UKCA

Warranty
3-Year / 40 TBW, 3-Year / 80 TBW, 3-Year / 160 TBW, 3-Year / 320 TBW, 3-Year / 640 TBW
