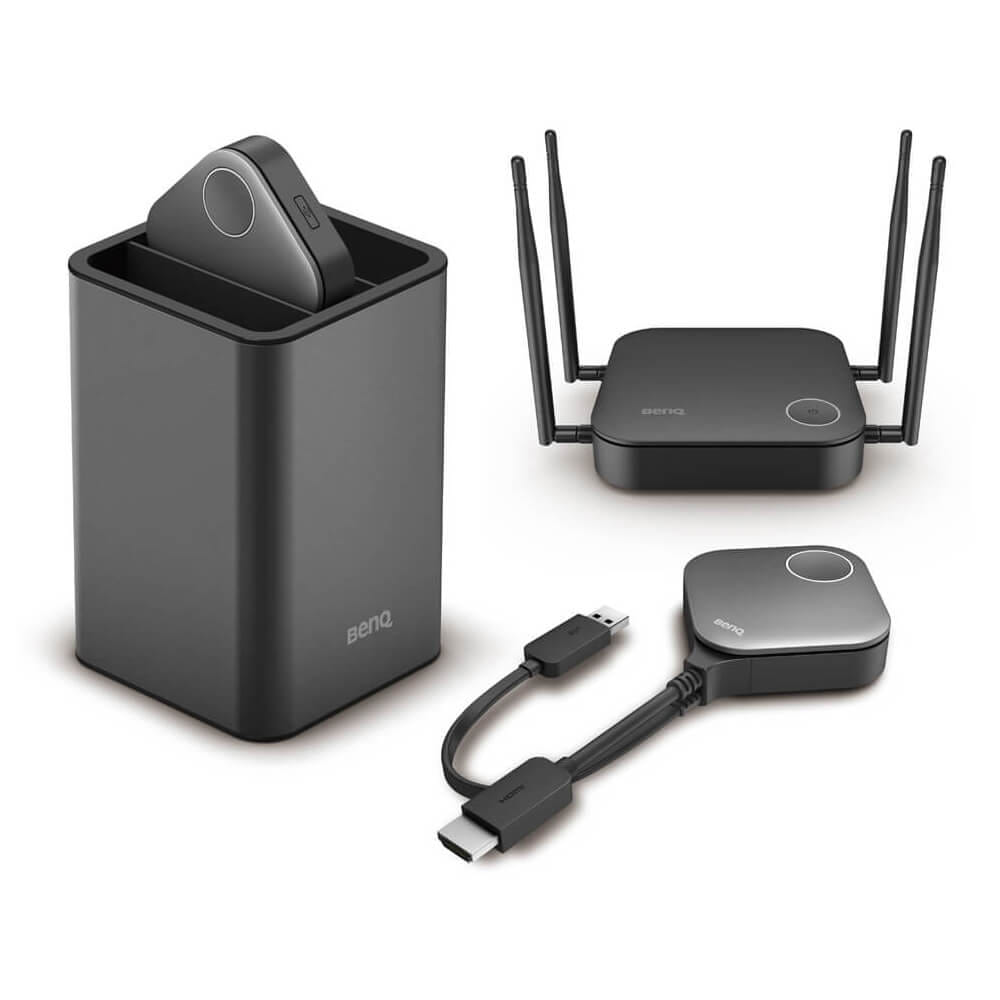

Instant Visual Communication and Collaboration for Modern Enterprise
It’s human nature to resist change which is why new technology can be intimidating. InstaShow™ S has zero learning curve allowing you to introduce it into your daily routine and start sharing immediately. InstaShow™ S also allows employees and visitors to enjoy setup-free wireless presenting leading to instant teamwork and immediate results. Morever InstaShow™ S’s advanced security features can protect the hard-won intellectual property that is essential to your company’s bottom line.
Share Ideas from Multiple Devices on One Screen
Activate split-screen with a single button and share everyone’s ideas at the same time. InstaShow™ S can accelerate decision making and shorten meetings by allowing up to 4 users to present from different devices at once without needing to install multiple projectors.
Simple Pairing and Hassle-Free Maintenance
InstaShow™ S is ready to use immediately out of the box. But if you need to pair additional transmitters to a receiver you will find the process is incredibly simple. Just hold down the pairing key on the host for 5 seconds then do the same on the transmitter and the two devices will pair automatically. The host can even be put into pairing mode via web control for cases where it is installed onto a ceiling-mounted projector or otherwise hard to reach location. Meanwhile mobile devices can connect to the receiver and easily complete the pairing process with the InstaShare™ app.
Centralised control streamlines device management and makes updating easy. IT administrators can manage InstaShow™ S remotely via LAN to control pairings adjust settings and update firmware conveniently with BenQ’s OTA technology.
| Design | |
| Form factor The shape or design of the product. | Desktop |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
 |
| Features | |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480p, 525i, 540p, 576p, 625i, 720i, 720p, 768p, 960p, 1024p, 1035i, 1080i, 1080p |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Number of users The number of people that use or can use this product. | 32 user(s) |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antennas quantity | 4 |
| Network | |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 1167 Mbit/s |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 5 GHz |
| Dual-band A dual band device can work with two different bands. Dual-band WiFi (wireless) contains two different types of wireless radios that can support connections on both 2.4 GHz and 5 GHz links. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11ac, IEEE 802.11n |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES, WPA2 |
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Ports & interfaces | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | HDMI |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 1.4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | AC |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (max) The maximum amount of power used by the device. | 24 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| AC adapter included |
|
| Cables included | HDMI, USB |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 643608 |
| MPN | 9H.JKJ78.H4P |
| Brand | BenQ |
| Product Condition | Brand New/Unused |
| Product Use | General |
