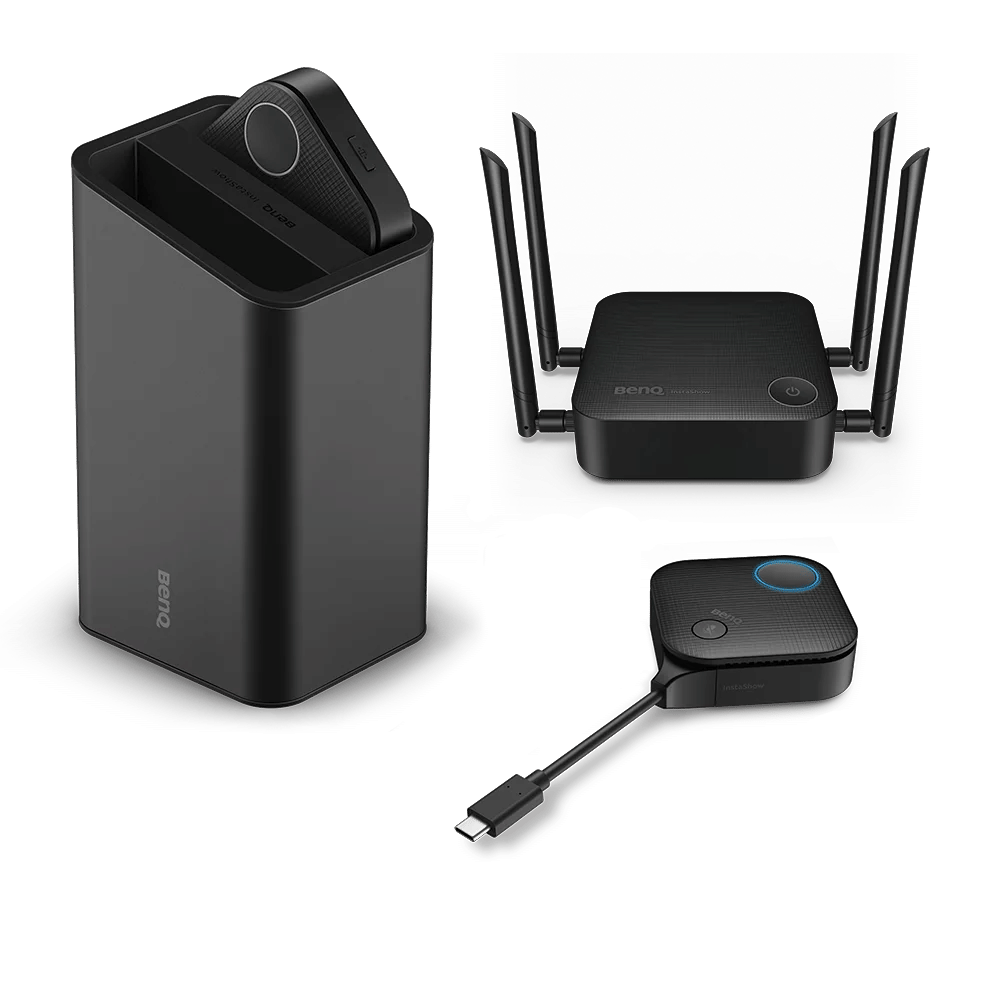

BENQ VS20 INSTASHOW WIRELESS 4K PRESENTATION SYSTEM
InstaShow® VS20 Wireless Presentation System to Sync Up Hybrid Meetings Seamlessly
Integrate camera microphone and screen sharing via one app into a cable free hybrid video conferencing room.
Information Security
WPA2 AES 128 bit and router level internal channel isolation provide transmission and data security.
Empower your meetings with InstaShow® Button Microphone and eliminate poor audio quality and miscommunication. Even when participants are spread out VS20 provides optimal sound quality.
Simply plug and play presentation materials and speak freely via InstaShow® Button Microphones during video conferences. Mute Key on InstaShow® Button
Each wireless microphone can be individually muted at the touch of a button for efficient and engaging meetings. 4K Screen Mirroring
VS20’s native 4K transmission video frame rate displays highly detailed slides infographics and videos clearly and smoothly. Smooth and Stable Transmission
VS20 employs Clear Channel Assessment CCA to automatically detect and select the best channel for reliably perfect Wi Fi performance.IT Friendly for Video Conferencing System Integration
Just connect your display and video bar to your InstaShow® Host Rx to integrate all your video conferencing systems easily.
Camera & Screen Sharing via One App
InstaShow® VS Assist app combines the meeting room video bar camera and screen sharing under the same network to all video conferencing assets for both local attendees and remote participants.
Expandable Wireless Microphone System
® Button Microphone can pick up each participant’s voice all around for clear collaboration regardless where they sit in th
Integrate Meetings Wirelessly with Optimal Voice Pickup Quality
- Plug and play to present and speak in every meeting
- The exclusive Expandable Wireless Microphone System picks up voice all around for medium to large size rooms in the video conference
- Seamless audiovisual devices integration wirelessly via InstaShow® VS Assist app
- Native 4K transmission displays every detail clearly and smoothly
- WPA2 AES 128 bit and router level internal channel isolation secure your information
Audiovisual Plug and Play
Simply plug and play to present and speak freely via InstaShow® in every hybrid meeting.Smooth Stability
VS20 effortlessly delivers high quality 4K transmission band width with smooth and stable audiovisual quality.
Integrate camera microphone and screen sharing via one app into a cable free hybrid video conferencing room.
Information Security
WPA2 AES 128 bit and router level internal channel isolation provide transmission and data security.
Instant Mirroring and Collaboration
InstaShow® has zero learning curve so you can use it in your daily routine and start sharing immediately with your own mobile devices.
Multi Device Compatibility
Conveniently connects with laptops smartphones and tablets running Windows or iOS.
4 Way Split Screen
Up to 4 presenters can share content smoothly on one screen.
Touchback Control
Presenters may utilize interactive display touchscreens without switching back to the laptop.
Switchable Interface
InstaShow® VS20 Button transmitter offers both HDMI and USB C connectivity for different devices.
Empower your meetings with InstaShow® Button Microphone and eliminate poor audio quality and miscommunication. Even when participants are spread out VS20 provides optimal sound quality.
Omnidirectional Microphones
Each InstaShow® Button’s wireless microphone has a four way voice reception design that picks up all voices clearly up to 1.5m radius.
Simply plug and play presentation materials and speak freely via InstaShow® Button Microphones during video conferences. Mute Key on InstaShow® Button
Each wireless microphone can be individually muted at the touch of a button for efficient and engaging meetings. 4K Screen Mirroring
VS20’s native 4K transmission video frame rate displays highly detailed slides infographics and videos clearly and smoothly. Smooth and Stable Transmission
VS20 employs Clear Channel Assessment CCA to automatically detect and select the best channel for reliably perfect Wi Fi performance.IT Friendly for Video Conferencing System Integration
Just connect your display and video bar to your InstaShow® Host Rx to integrate all your video conferencing systems easily.
Camera & Screen Sharing via One App
InstaShow® VS Assist app combines the meeting room video bar camera and screen sharing under the same network to all video conferencing assets for both local attendees and remote participants.
Expandable Wireless Microphone System
® Button Microphone can pick up each participant’s voice all around for clear collaboration regardless where they sit in th
| Design | |
| Form factor The shape or design of the product. | Desktop |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
 |
| Features | |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080p |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Number of simultaneously connected devices (max) | 32 |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Antennas quantity | 4 |
| Network | |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 5 (802.11ac) |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 5 GHz |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES, SSID, WPA2, WPA2-PSK |
| Maximum operating distance The maximum distance from which you can operate the device. | 20 m |
| Ports & interfaces | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | HDMI |
| HDMI input ports quantity | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Micro-USB ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Output voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) The maximum amount of power used by the device. | 11 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 630 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | HDMI |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 735266 |
| MPN | VS20 |
| Brand | BenQ |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
