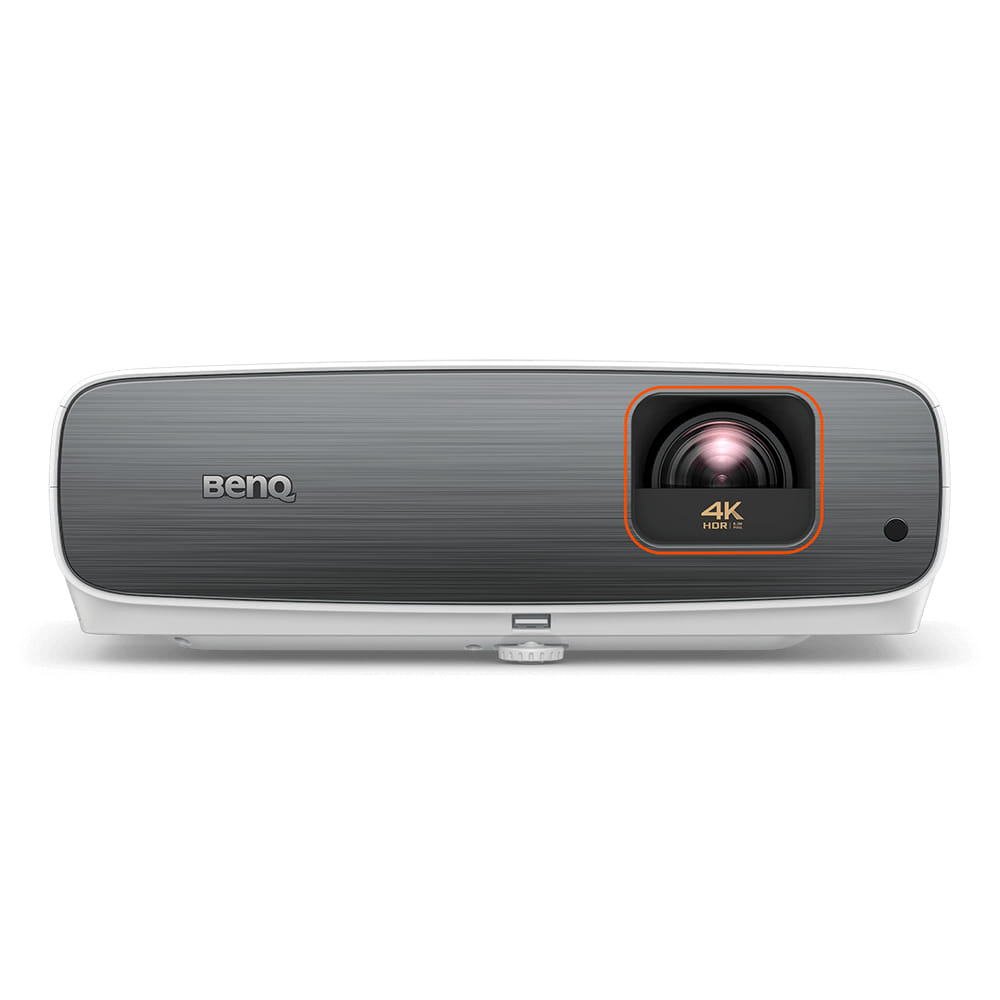

BenQ TK860i 4K UHD Home Cinema Projector

Projector
Smart projector
Screen size compatibility The different screen sizes which the device can work with.	2540 - 3810 mm (100 - 150")
Projection distance The maximum length at which an image can be projected.	2.5 - 3.8 m
Projector brightness	3300 ANSI lumens
Projection technology	DLP
Projector native resolution	2160p (3840x2160)
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	50000:1
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Number of colours	1.07 billion colours
Horizontal scan range	15 - 135 kHz
Vertical scan range	23 - 120 Hz
Keystone correction, horizontal	-30 - 30°
Keystone correction, vertical	-30 - 30°

Light source
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	15000 h

Lens system
Focus	Auto
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	12 - 15.6 mm
Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops.	1.9 - 2.47
Zoom capability The amount that the camera lens can zoom.
Zoom ratio Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.	1.3:1
Throw ratio	1.13 ~ 1.47

Video
Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D The device can be used with 3D technology.
Video colour modes	Bright cinema, Cinema, Game, Living room, Sports

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Mini-USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Microphone in The socket where a microphone is connected to the device.
Serial interface type	RS-232
S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	3
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
AC (power) in
Audio Return Channel (ARC)

Network
Smart TV Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Storage
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.

Features
Interactive
Noise level (economic mode)	28 dB
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	30 dB
High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)

Multimedia
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	2
Audio decoders Device or software capable of decoding a digital stream of audio e.g. internet radio.	Dolby Atmos

Design
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Home cinema
Product type The sub-category of the product.	Standard throw projector
Product colour The colour e.g. red, blue, green, black, white.	Grey, White

Display
Built-in display A display which is part of the product, so you do not need to attach another display.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	330 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	380 mm
Depth The distance from the front to the back of something.	263 mm
Height The measurement of the product from head to foot or from base to top.	127 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	4.2 kg

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included	AC

Other features
Security updates end date	31/12/2026
