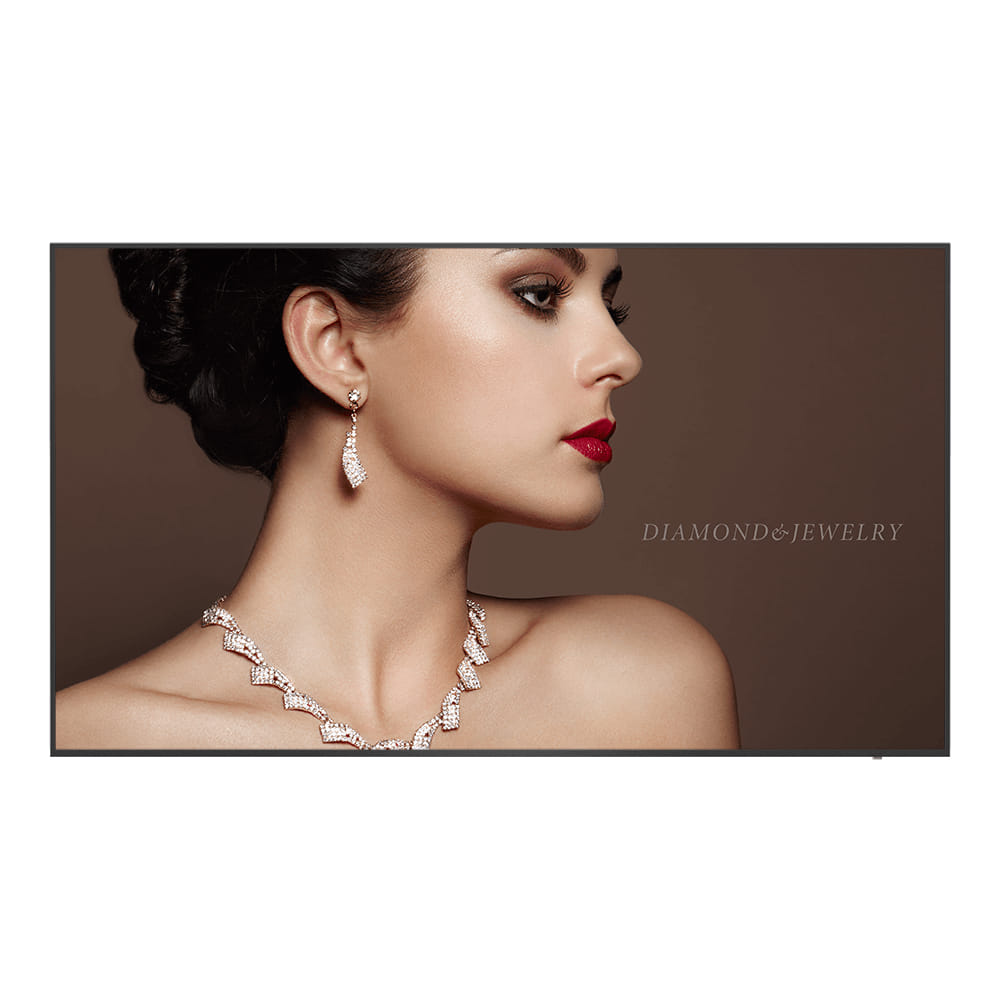

The ST02 smart signage is the ideal digital display solution for small and large businesses. The ultra-thin bezel display comes with stunning 4K UHD resolution, producing eye-catching images in vivid detail. The matte finish along with 450 nits of brightness make pictures stand out in any environment.
High Brightness 450 Nits Anti-Glare Display
Ultra Slim Bezel at 8.8mm (T/R/L), 12.8mm (B)
Built-In Android OS 8.0 with onboard Media player via USB & 16GB internal storage (ARM A73*2+A53*2)
X-Sign 2.0: Easy content management software, facilitates effortless content creation, management, and delivery.
HDMIx2/DP/VGA/RS232/RJ45/ USBx3
2 x 12w internal speakers - Sound on, no external speakers needed
OPS Slot
Instashare Supports Wireless Presentation - wirelessly display content
DMS - Display Management System - Remotely Control display settings, Update firmware and apps. Schedule on/off. Monitor source, connection, storage, power consumption, activity
| Display | |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Direct-LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 165.1 cm (65") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 450 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1200:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Panel life The length of time that the panel can be used for. | 30000 h |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB ports quantity | 3 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-232 interface |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 24 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 400 x 200 mm |
| Bezel width (bottom) | 1.28 cm |
| Bezel width (side) | 8.8 mm |
| Bezel width (top) | 8.8 mm |
| Performance | |
| Purpose What the product is used for. | Commercial |
| On Screen Display (OSD) |
|
| Number of OSD languages | 27 |
| Operating hours (hours/days) | 18/7 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 300 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 3 GB |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 16 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android 8.0 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 1450.6 mm |
| Depth The distance from the front to the back of something. | 78.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 828.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 22.9 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 33.6 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Remote control type | IR |
| Cables included | AC, DisplayPort, HDMI, RS-232, VGA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| SKU | 551054 |
| MPN | 9H.F6KTC.RA2 |
| Brand | BenQ |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
