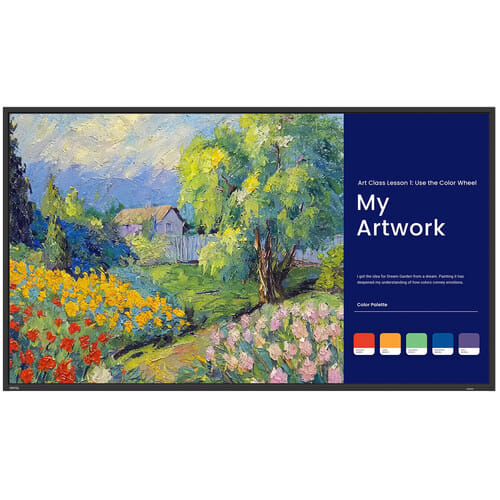

BenQ SL5504 Series Pantone Validated 55" UHD 4K Commercial Signage Display 24/7

Display
Panel type	IPS
LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	139.7 cm (55")
Display technology The technology used in the display e.g. plasma, LED.	LCD
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	3840 x 2160 pixels
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	500 cd/m²
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	8 ms
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	1200:1
Active display area (W x H)	1209.6 x 680.4 mm
Panel life The length of time that the panel can be used for.	50000 h
Haze rate	25%

Ports & interfaces
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
HDMI version	2.0
HDMI input ports quantity	2
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
USB port The device features a socket into which a USB cable can be plugged.
USB ports quantity	2
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	24 W

Design
Product design The creation of a plan or convention for the construction of an object or a system.	Digital signage flat panel
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Product colour The colour e.g. red, blue, green, black, white.	Black
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	200 x 200 mm
Anti-glare screen Always gives an optimal view, even in direct sunlight.

Performance
Purpose What the product is used for.	Universal

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	81.9 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz

Computer system
Computer system
Built-in processor Whether or not a processor is built into the device.
Processor architecture	ARM Cortex-A53+Cortex-A73
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	8
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Internal storage capacity The amount e.g of data which can be stored inside the device.	64 GB
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	13.0

Weight & dimensions
Display width	1237.3 mm
Display depth	56.4 mm
Display height	709.8 mm
Display weight	14.7 kg

Packaging data
Package width The distance from one side of the packaging to the other.	1386 mm
Package depth The distance from the front to the back of the packaging.	130 mm
Package height The distance from the top to the bottom of the packaging.	845 mm
Package weight Weight of the packaged product.	19.1 kg

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Cables included	HDMI, Serial

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-10 - 60 °C
Storage relative humidity (H-H)	10 - 80%

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Technical details
Sustainability certificates	ENERGY STAR
