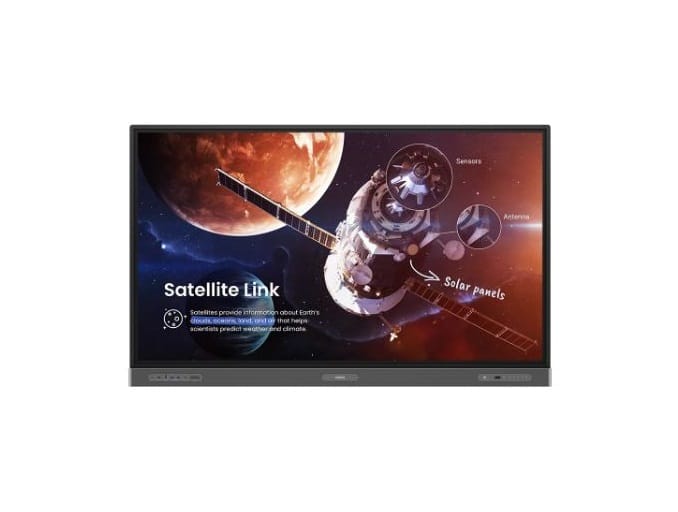

BenQ RP7503 75" IPS Pro Series Education Interactive Display
Item No:
693107
MPN:
9H.F83TK.DE1
$4,499.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Panel Type: IPS; Input: HDMI, VGA, Display Port; Brightness: 450 cd/m2; Contrast: 1200:1; Response Time: 8ms; Refresh Rate: 60Hz; Screen Resolution:3840 x 2160
| Display | |
| Panel type | IPS |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 190.5 cm (75") |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 450 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen technology | Infrared |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1200:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 30000:1 |
| Panel life The length of time that the panel can be used for. | 50000 h |
| Surface hardness | 9H |
| RGB colour space | NTSC |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B, USB Type-C |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| PC Audio in The socket (port) for the PC audio input. |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| OPS module slot |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 32 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Interactive flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 600 x 400 mm |
| Anti-glare screen Always gives an optimal view, even in direct sunlight. |
|
| Performance | |
| Purpose What the product is used for. | Education |
| Operating hours (hours/days) | 18/7 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 90.1 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 223 kWh |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 64 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android 11 |
| Weight & dimensions | |
| Display width | 1717.1 mm |
| Display depth | 121.7 mm |
| Display height | 1065.3 mm |
| Display weight | 55.5 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 1900 mm |
| Package depth The distance from the front to the back of the packaging. | 225 mm |
| Package height The distance from the top to the bottom of the packaging. | 1160 mm |
| Package weight Weight of the packaged product. | 70 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Stylus pen |
|
| Cables included | AC, USB Type-C, HDMI, VGA, USB |
| Mounting kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| SKU | 693107 |
| MPN | 9H.F83TK.DE1 |
| Brand | BenQ |
| Assembled to Order | No |
| Shipping Latency | None |
| Display In Stock In Frontend | No |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 75.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 3840x2160 (UHD/4K) |
| Input | DisplayPort / DP, HDMI, VGA / D-SUB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.benq.com/ |
