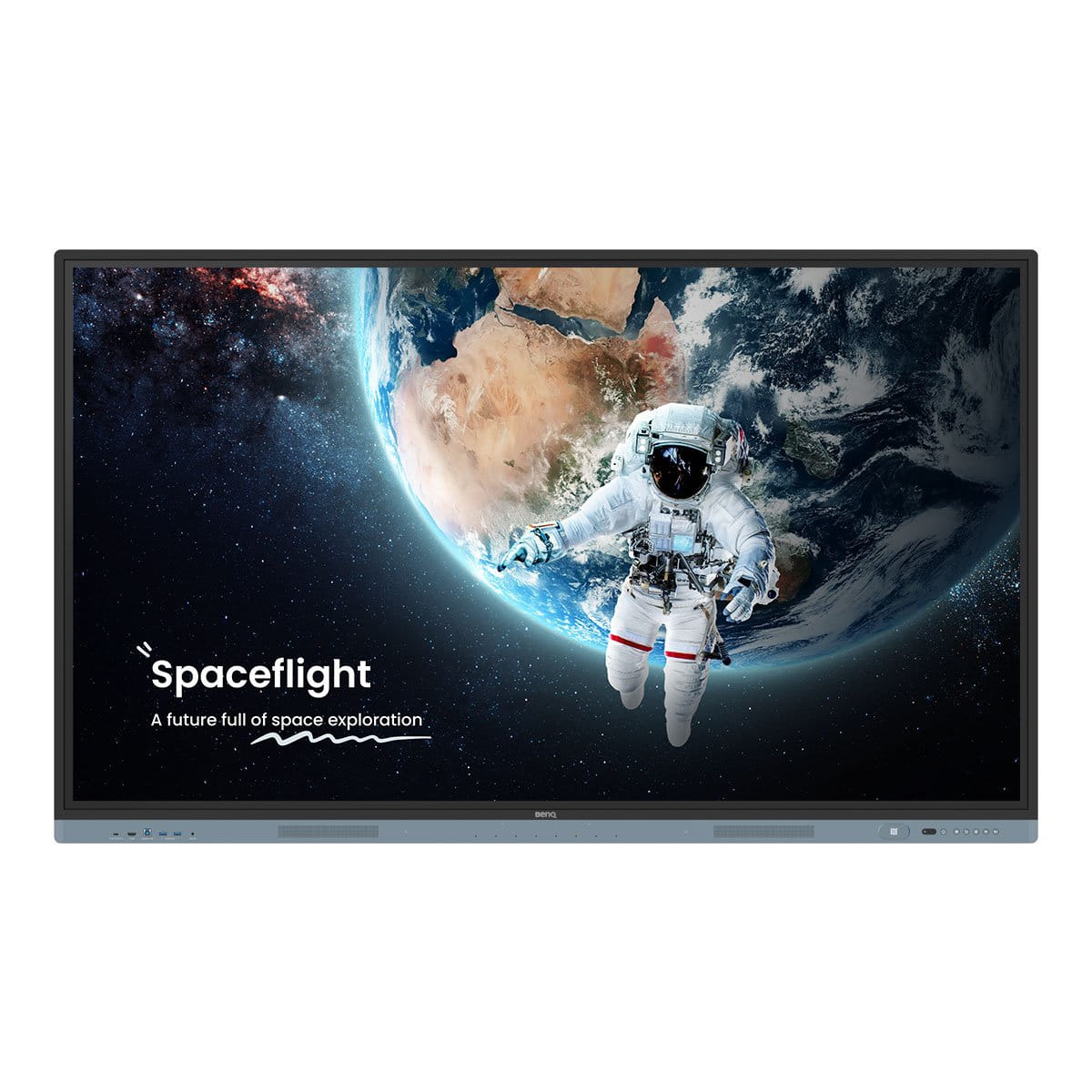

BenQ Board Master RM04 65" 4K UHD IPS 450 Nits Education Interative Panel

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	165.1 cm (65")
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	450 cd/m²
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	3840 x 2160 pixels
Anti-glare screen Always gives an optimal view, even in direct sunlight.
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Panel type	IPS
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	1200:1
Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.	50000:1
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	8 ms
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touch technology Technology of touch sensetive screen e.g. dual-touch.	Multi-touch
Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.	Infrared
Number of simultaneous touchpoints	50
Touch system response time	5 ms
Working area The area that can be worked on.	1428.5 x 803.5 mm
Surface material	Tempered glass
Low Blue Light technology
Hardness A measure of how solid/firm/rigid something is.	9H

Computer system
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android 13
Built-in processor Whether or not a processor is built into the device.
Processor architecture	ARM Cortex A73 + ARM Cortex A53
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
User memory	64 GB
RAM capacity	8 GB
Graphics card family	ARM

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	2
Speaker power	20 W
Built-in subwoofer The product has built-in subwoofer, which is a loudspeaker component designed to reproduce very low bass frequencies.
Subwoofer RMS power This is a measure of the continuous power (RMS power) produced by a subwoofer.	16 W
Built-in microphone Microphone that is found inside the product.

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Near Field Communication (NFC)

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	3
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB connector type The type of USB connector/port that this product has.	USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	5
USB Type-C ports quantity	4
HDMI version	2.0
HDMI output ports quantity	1
DisplayPort version	1.2a
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
Line-in
Line-out
OPS slot	1
S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Microphone connectivity How a microphone connect to a device e.g. wirelessly or via a cable and connector.	3.5 mm
Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector.	3.5 mm
Audio output The type of audio output that the device produces, and the connector(s).	3

Ergonomics
Product colour The colour e.g. red, blue, green, black, white.	Black
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	600 x 400 mm
Wall mountable The product can be mounted on (attached to ) a wall.

Performance
Temperature sensor

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	95 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
AC input frequency	50/60 Hz

System requirements
Security updates end date	30/10/2026

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	1488.4 mm
Depth The distance from the front to the back of something.	117.7 mm
Height The measurement of the product from head to foot or from base to top.	937.6 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	40.6 kg

Packaging data
Package width The distance from one side of the packaging to the other.	1628 mm
Package depth The distance from the front to the back of the packaging.	208 mm
Package height The distance from the top to the bottom of the packaging.	1024 mm
Package weight Weight of the packaged product.	47.8 kg
Quantity per pack	1 pc(s)

Packaging content
Pen tray included
Cables included	HDMI, Power, USB, USB Type-C, VGA
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Mounting kit
Stylus included
Number of stylus pens	2
