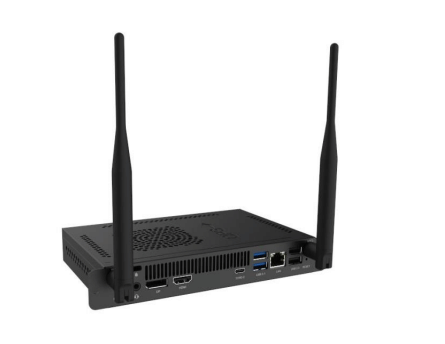

BENQ OPS - I5 8GB RAM 256GB SSD INTEGRATED PC FOR BENQ IFP WIN11 TRIAL
Features
12th Gen Intel® Core processor TEY41 OPS delivers a maximum performance that match the Interactive Display and Digital Signage features. In both classes and enterprises this embedded PC provides a more vivid interactive 4K experience. Memory options are 8GB Single 8GB Dual 16GB Dual and 256GB internal storage. The TEY41 has 5 USB ports in total and supports TPM Trusted Platform Module 2.0 Wi-Fi 6 and Bluetooth 5.2
12th Gen Intel® Core processor TEY41 OPS delivers a maximum performance that match the Interactive Display and Digital Signage features. In both classes and enterprises this embedded PC provides a more vivid interactive 4K experience. Memory options are 8GB Single 8GB Dual 16GB Dual and 256GB internal storage. The TEY41 has 5 USB ports in total and supports TPM Trusted Platform Module 2.0 Wi-Fi 6 and Bluetooth 5.2
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model The model number for the processor in a computer. | i5-1235U |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 10 |
| Processor threads | 12 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed Number of processors in the product. | 1 |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4-SDRAM |
| Memory layout (slots x size) The slots and size of the memory for the CPU. | 2 x 8 GB |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 256 GB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | SSD |
| Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. |
 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity The Solid State Drive's data storage capacity. | 256 GB |
| Graphics | |
| Discrete graphics card |
|
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Iris Xe Graphics |
| Performance | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | OPS |
| Trusted Platform Module (TPM) |
|
| Product type The sub-category of the product. | PC |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack-mounted chassis |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Windows 11 Pro |
| Security updates end date | 30/06/2026 |
| Display | |
| Display included This product includes a display. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 30 mm |
| Height The measurement of the product from head to foot or from base to top. | 119 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 254 mm |
| Package depth The distance from the front to the back of the packaging. | 196 mm |
| Package height The distance from the top to the bottom of the packaging. | 77 mm |
| Package weight Weight of the packaged product. | 1.23 kg |
| SKU | 728333 |
| MPN | TEY41-I5 |
| Brand | BenQ |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.benq.com/ |
