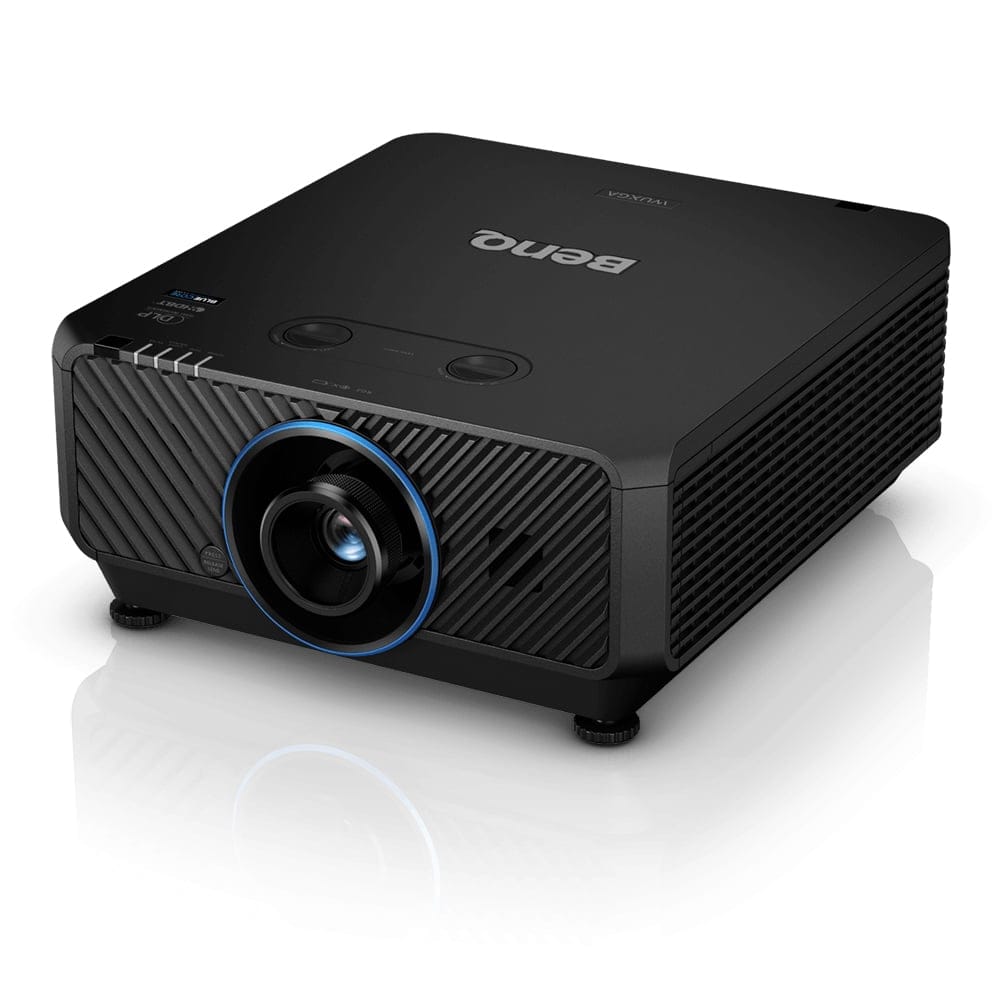

BenQ LU9245 Laser Projector - No Lens
Item No:
673568
MPN:
9H.JKY77.26E
$10,399.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Benq LU9245, 7000 ANSI lumens, DLP, WUXGA (1920x1200), 16:10, 1270 - 12700 mm (50 - 500"), 3000000:1
BlueCore Laser Projectors from the World's No.1 DLP Brand
The BenQ LU9245 BlueCore Laser Projector is the brightest choice for large venue applications, featuring superior 7,000 ANSI-lumen brightness and 3,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. The BlueCore laser engine also delivers superior color performance through a dual color wheel system, support for 360 and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities. The LU9245 is compatible with a selection of lenses for a wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.
Superior Image Quality
Revolutionary BlueCore Laser Technology
The world's No.1 DLP brand BenQ expands its full line of innovative BlueCore laser projectors with LU9245, for fixed lens installation, enabling powerful visual communication in museums or other venues for simulated trainings.
Dual Color Wheels for Optimal Chromatic Performance
LU9245 powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 96% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU9245 dramatically enhances color saturation to ensure superior presentation quality.
HDMI 2.0 for Supreme Image Quality
To help users enjoy 4K content, LU9245 and HDBase T both come with HDMI 2.0 ports which are compatible with 4K signal. Users can now effortlessly project 4K content with much less friction and enjoy greater brightness and contrast range than SDR.
*The actual output resolution is based on projector's resolution
Dynamic Dimming
Analyzes scene brightness levels to optimize light output and create high contrast. Bringing out subtle details in dark scene and represent the best-in-class dynamic image.
Gamma Selection
Select Gamma for your preference and optimizing image quality between input source and picture brightness. Besides, LU9245 also provides advanced BenQ and DICOM Gamma curve to satisfy your various needs.
Enduring Reliability
24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Eco Mode.
Superior Dustproofing for Severe Conditions with IP5X Certification
BenQ BlueCore laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.
Excellent Installation Flexibility
360 and Portrait Projection Accommodate Different Spaces
BlueCore laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360 rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Multiple Lenses for Diverse Applications
BenQ's LU9245 projector is compatible with seven various lenses. These all-glass optics, eliminate chromatic aberration and color flare for utmost image quality. Maximize installation options and projection layout with a quick one-button release. Changing lenses is now simple and secure.
Ensure Consistent Brightness Blending with Custom Light Mode
Custom Light Mode modulates light power output from 20% to 100% at a 0.5% rate, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.
Digital Shrink and Shift without Distortion
Digital image shrinking and shift lets installers shrink the image to 80% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
HDBaseT for Uncompressed Transmission Up to 100m and Control
Groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single CAT5 cable. This ensures seamless transmissions up to 100 meters.
Firmware Upgrade by LAN
Administrators can centrally upgrade firmware on BenQ projectors that are on the same local network via LAN deploying the latest updates to devices at once. This application can upgrade firmware with a friendlier interface
Easy Management
Centralized Control with BenQ Software
BenQ centralized control software is a management tool for computers that enables remote and centralized management of multiple digital projectors by IT administrators/technicians via a local network.The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.
Network/Web Control
BenQ BlueCore laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.
Wide Compatibility
3D Sync IN /3D Sync out
Connect up to 3 projectors and project 3D content together by a single PC.
RS-232 In and Out
Control at same time by RS-232 in and out connected together to make multi-screen projections.
The BenQ LU9245 BlueCore Laser Projector is the brightest choice for large venue applications, featuring superior 7,000 ANSI-lumen brightness and 3,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. The BlueCore laser engine also delivers superior color performance through a dual color wheel system, support for 360 and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities. The LU9245 is compatible with a selection of lenses for a wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.
Superior Image Quality
Revolutionary BlueCore Laser Technology
The world's No.1 DLP brand BenQ expands its full line of innovative BlueCore laser projectors with LU9245, for fixed lens installation, enabling powerful visual communication in museums or other venues for simulated trainings.
Dual Color Wheels for Optimal Chromatic Performance
LU9245 powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 96% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU9245 dramatically enhances color saturation to ensure superior presentation quality.
HDMI 2.0 for Supreme Image Quality
To help users enjoy 4K content, LU9245 and HDBase T both come with HDMI 2.0 ports which are compatible with 4K signal. Users can now effortlessly project 4K content with much less friction and enjoy greater brightness and contrast range than SDR.
*The actual output resolution is based on projector's resolution
Dynamic Dimming
Analyzes scene brightness levels to optimize light output and create high contrast. Bringing out subtle details in dark scene and represent the best-in-class dynamic image.
Gamma Selection
Select Gamma for your preference and optimizing image quality between input source and picture brightness. Besides, LU9245 also provides advanced BenQ and DICOM Gamma curve to satisfy your various needs.
Enduring Reliability
24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Eco Mode.
Superior Dustproofing for Severe Conditions with IP5X Certification
BenQ BlueCore laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.
Excellent Installation Flexibility
360 and Portrait Projection Accommodate Different Spaces
BlueCore laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360 rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Multiple Lenses for Diverse Applications
BenQ's LU9245 projector is compatible with seven various lenses. These all-glass optics, eliminate chromatic aberration and color flare for utmost image quality. Maximize installation options and projection layout with a quick one-button release. Changing lenses is now simple and secure.
Ensure Consistent Brightness Blending with Custom Light Mode
Custom Light Mode modulates light power output from 20% to 100% at a 0.5% rate, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.
Digital Shrink and Shift without Distortion
Digital image shrinking and shift lets installers shrink the image to 80% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
HDBaseT for Uncompressed Transmission Up to 100m and Control
Groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single CAT5 cable. This ensures seamless transmissions up to 100 meters.
Firmware Upgrade by LAN
Administrators can centrally upgrade firmware on BenQ projectors that are on the same local network via LAN deploying the latest updates to devices at once. This application can upgrade firmware with a friendlier interface
Easy Management
Centralized Control with BenQ Software
BenQ centralized control software is a management tool for computers that enables remote and centralized management of multiple digital projectors by IT administrators/technicians via a local network.The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.
Network/Web Control
BenQ BlueCore laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.
Wide Compatibility
3D Sync IN /3D Sync out
Connect up to 3 projectors and project 3D content together by a single PC.
RS-232 In and Out
Control at same time by RS-232 in and out connected together to make multi-screen projections.
| Projector | |
| Screen size compatibility The different screen sizes which the device can work with. | 1270 - 12700 mm (50 - 500") |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 3000000:1 |
| Projector brightness | 7000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:10 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.7 cm (0.67") |
| Matrix type | DMD |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 38000 h |
| Lamp power | 100 W |
| Lens system | |
| Horizontal lens shift range | -5 - 5% |
| Vertical lens shift range | -15 - 55% |
| Video | |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC,PAL,SECAM |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
 |
| 3D The device can be used with 3D technology. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA),1920 x 1200 (WUXGA) |
| Supported video modes The video modes that can be displayed by the device. | 480i,480p,576i,576p,720p,1080i,1080p |
| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDBaseT port |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 1 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| Serial interface type | RS-232 |
| PC Audio in The socket (port) for the PC audio input. |
|
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| Composite video in The socket (port) for the composite video input (white cable). | 1 |
| Component video (YPbPr/YCbCr) in The number of sockets (ports) for RF (radio frequency) connections into the product. | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| Mobile High-Definition Link (MHL) |
|
| Network | |
| Smart TV Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers. |
|
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Features | |
| Noise level (economic mode) | 34 dB |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| On Screen Display (OSD) |
|
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
| Number of OSD languages | 28 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 36 dB |
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 20 W |
| Number of built-in speakers | 2 |
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Bussines |
| Product type The sub-category of the product. | Large venue projector |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Placement Where the product can be placed e.g. floor, wall. | Desktop |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 600 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 650 W |
| Power consumption (economy mode) | 400 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 525 mm |
| Depth The distance from the front to the back of something. | 470 mm |
| Height The measurement of the product from head to foot or from base to top. | 216 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 24 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Batteries included |
|
| Cables included | AC, VGA |
| Manual |
|
| SKU | 673568 |
| MPN | 9H.JKY77.26E |
| Brand | BenQ |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.benq.com/ |
