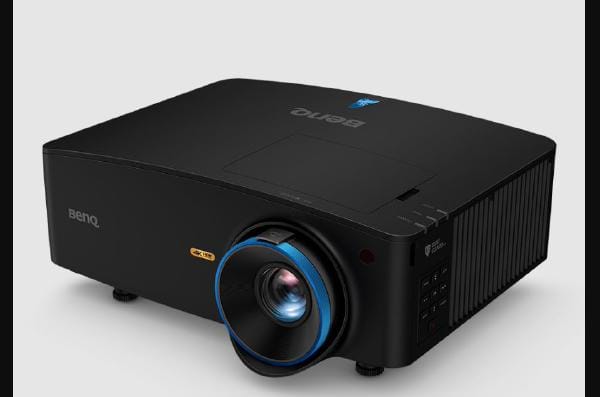

BenQ 4K Short-Throw Blue Core Laser Projector

Projector
Supported aspect ratios The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.	2.4:1,4:3,16:10,16:9
Smart projector
Screen size compatibility The different screen sizes which the device can work with.	762 - 7620 mm (30 - 300")
Projector brightness	5100 ANSI lumens
Projection technology	DLP
Projector native resolution	2160p (3840x2160)
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	3000000:1
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Number of colours	1.07 billion colours
Horizontal scan range	15 - 135 kHz
Vertical scan range	23 - 240 Hz
Keystone correction, horizontal	-40 - 40°
Keystone correction, vertical	-40 - 40°

Light source
Light source type	Laser
Service life of light source	20000 h

Lens system
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	1.83 - 1.86 mm
Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops.	8.6 - 9.4
Zoom capability The amount that the camera lens can zoom.
Zoom ratio Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.	1.1:1
Throw ratio	0.81 - 0.89
Horizontal lens shift range	-23 - 23%
Vertical lens shift range	-60 - 60%

Video
Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
3D The device can be used with 3D technology.
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	640 x 512,640 x 640,640 x 160,640 x 352,640 x 360,640 x 400,640 x 480 (VGA),640 x 544,640 x 576,640 x 960,704 x 480,704 x 576,720 x 350,720 x 400,720 x 480,720 x 576,720 x 720,752 x 582,768 x 432,768 x 448,768 x 494,768 x 576,800 x 448,800 x 450,800 x 480 (WVGA),800 x 500,800 x 592,800 x 600 (SVGA),832 x 624,832 x 642,848 x 480,854 x 480 (WVGA),900 x 720,960 x 960,960 x 480,960 x 540,960 x 576,960 x 720,1024 x 576 (WSVGA),1024 x 600,1024 x 640,1024 x 768 (XGA),1024 x 800,1032 x 452,1056 x 144,1080 x 1080,1152 x 864 (XGA+),1152 x 870,1200 x 1600,1200 x 1920,1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 768,1280 x 800 (WXGA),1280 x 800,1280 x 960,1280 x 1280,1284 x 560,1296 x 732,1360 x 768 (WXGA),1366 x 480,1366 x 760,1366 x 768,1366 х 768,1368 x 768,1376 x 768,1400 x 1050 (SXGA+),1400 x 1080,1400 x 900,1440 x 1050,1440 x 1080,1440 x 234,1440 x 900 (WXGA+),1440 x 900,1440 x 912,1536 X 6144,1536 x 2048,1536 x 1536,1600 x 1200 (UXGA),1600 x 1280,1600 x 600,1600 x 900,1600 x 904,1680 x 1050 (WSXGA+),1680 x 1056,1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),1920 x 1440,1920 x 1600,1920 x 2160,1920 x 480,1920 x 502,1920 x 1920,1920 x 720,1920 x 832,2032 x 1920,2048 x 1080,2048 x 1152,2048 x 1280,2048 x 1520,2048 x 1536 (QXGA),2048 x 1640,2048 x 2560,2048 x 2048,2192 x 2192,2304 x 1296,2304 x 1728,2520 x 1520,2550 x 1440,2560 x 1080,2560 x 1440,2560 x 1600 (WQXGA),2560 x 1656,2560 x 1920,2560 x 1944,2560 x 2048,2592 x 1520,2592 x 1944,2640 x 2640,2688 x 1512,2688 x 1520,2800 x 2100,2880 x 1264,2880 x 1620,2880 x 2880,2880 x 2160,2944 x 1656,2992 x 2244,3072 x 1728,3072 x 2048,3200 x 1800,3264 x 2448,3280 x 2048,3440 x 1440,3648 x 2736,3840 x 1200,3840 x 2160
Supported video modes The video modes that can be displayed by the device.	480i,480p,576i,576p,720p,1080i,1080p,2160p

Ports & interfaces
HDMI version	2.0b
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
HDBaseT port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).	1
Serial interface type	RS-232
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
Composite video in The socket (port) for the composite video input (white cable).	1

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Features
Noise level (economic mode)	33 dB
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Preset modes	3D, Bright, Presentation, sRGB
On Screen Display (OSD)
Number of OSD languages	30
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	40 dB

Multimedia
Built-in speaker(s) The device contains speaker(s) to produce sound.
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	10 W
Number of built-in speakers	1

Design
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Presentation
Product type The sub-category of the product.	Short throw projector
Product colour The colour e.g. red, blue, green, black, white.	Black
Placement Where the product can be placed e.g. floor, wall.	Ceiling

Power
Power source What is providing power for the product e.g. mains electricity.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	440 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	416 mm
Depth The distance from the front to the back of something.	351 mm
Height The measurement of the product from head to foot or from base to top.	166 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	7 kg

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Cables included	AC, HDMI
