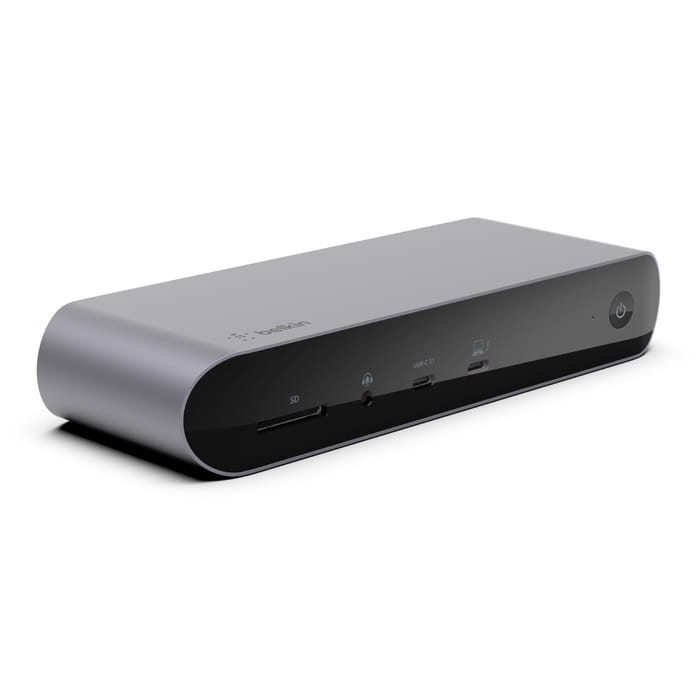

Belkin Connect Pro Thunderbolt 4 Dock, Wired, Thunderbolt 4, 90 W, 10,100,1000 Mbit/s, Black, Grey, SD
Turn your MacBook or Windows device into a powerful workstation. Using a single Thunderbolt 4 cable, you gain access to 12 versatile ports that enable you to connect multiple devices, video, Ethernet and power.
At a Glance
Connect, power, and display HD video at the same time through a single cable connection
12 ports include SD Card Reader, Audio In/Out, USB-C 3.1 Gen 2 port with PD 3.0 , 2x Thunderbolt 4 ports, 2x HDMI 2.0 ports, Gigabit Ethernet, 2X USB-A 3.1 ports, and 2X USB-A 2.0 ports
40Gbps for fast data transfers
Power Delivery up to 90W to power laptops, tablets, smartphones, hard drives, and more
High-def resolutions of up to 8K @ 30Hz for a single display, up to 4K @ 60Hz for dual display
Triple display support available for compatible laptops. Video resolution varies and is dependent on laptop’s capabilities.
Thunderbolt 4 certified
USB4-compliant
Backward compatible with Thunderbolt 3, USB 3.0, and more
iPad OS (Type-C iPad only) can only enable one extended screen
W: 200mm / 7.9in x D: 73.20mm / 2.9in x H: 33.90mm / 1.3in
Compatibility
Thunderbolt 4 port compatible
Compatible with devices that have a video-enabled USB-C port
Windows 10 RS3 or newer
MacOS (Big Sur Version 11) or newer
IPadOS (Type-C iPads only)
Recommended for Thunderbolt-enabled Laptops manufactured no later than YR 2019
M1-Based MacBooks can only enable one extended screen
Intel-Based MacBooks require USB-C to Video adapter to enable two extended screens.
iPhone 15 iPhone 15 Plus iPhone 15 Pro iPhone 15 Pro Max Macbook Pro M3 14" Macbook Pro M3 16" MacBook Air 15" M2 (2023)
What’s in the Box
Connect Pro Thunderbolt 4 Dock 2.6-foot / 0.8m Thunderbolt 4 cable 120W power supply unit
At a Glance
Connect, power, and display HD video at the same time through a single cable connection
12 ports include SD Card Reader, Audio In/Out, USB-C 3.1 Gen 2 port with PD 3.0 , 2x Thunderbolt 4 ports, 2x HDMI 2.0 ports, Gigabit Ethernet, 2X USB-A 3.1 ports, and 2X USB-A 2.0 ports
40Gbps for fast data transfers
Power Delivery up to 90W to power laptops, tablets, smartphones, hard drives, and more
High-def resolutions of up to 8K @ 30Hz for a single display, up to 4K @ 60Hz for dual display
Triple display support available for compatible laptops. Video resolution varies and is dependent on laptop’s capabilities.
Thunderbolt 4 certified
USB4-compliant
Backward compatible with Thunderbolt 3, USB 3.0, and more
iPad OS (Type-C iPad only) can only enable one extended screen
W: 200mm / 7.9in x D: 73.20mm / 2.9in x H: 33.90mm / 1.3in
Compatibility
Thunderbolt 4 port compatible
Compatible with devices that have a video-enabled USB-C port
Windows 10 RS3 or newer
MacOS (Big Sur Version 11) or newer
IPadOS (Type-C iPads only)
Recommended for Thunderbolt-enabled Laptops manufactured no later than YR 2019
M1-Based MacBooks can only enable one extended screen
Intel-Based MacBooks require USB-C to Video adapter to enable two extended screens.
iPhone 15 iPhone 15 Plus iPhone 15 Pro iPhone 15 Pro Max Macbook Pro M3 14" Macbook Pro M3 16" MacBook Air 15" M2 (2023)
What’s in the Box
Connect Pro Thunderbolt 4 Dock 2.6-foot / 0.8m Thunderbolt 4 cable 120W power supply unit
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | Thunderbolt 4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| Thunderbolt 4 ports quantity | 2 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Combo headphone/mic port |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 40 Gbit/s |
| Maximum digital resolution | 7680 x 4320 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Certification | TAA |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 120 W |
| Thunderbolt 4 cable length | 0.8 m |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | iPadOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 73.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 33.9 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 754439 |
| MPN | INC006AUSGY |
| Brand | Belkin |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.belkin.com/ |
