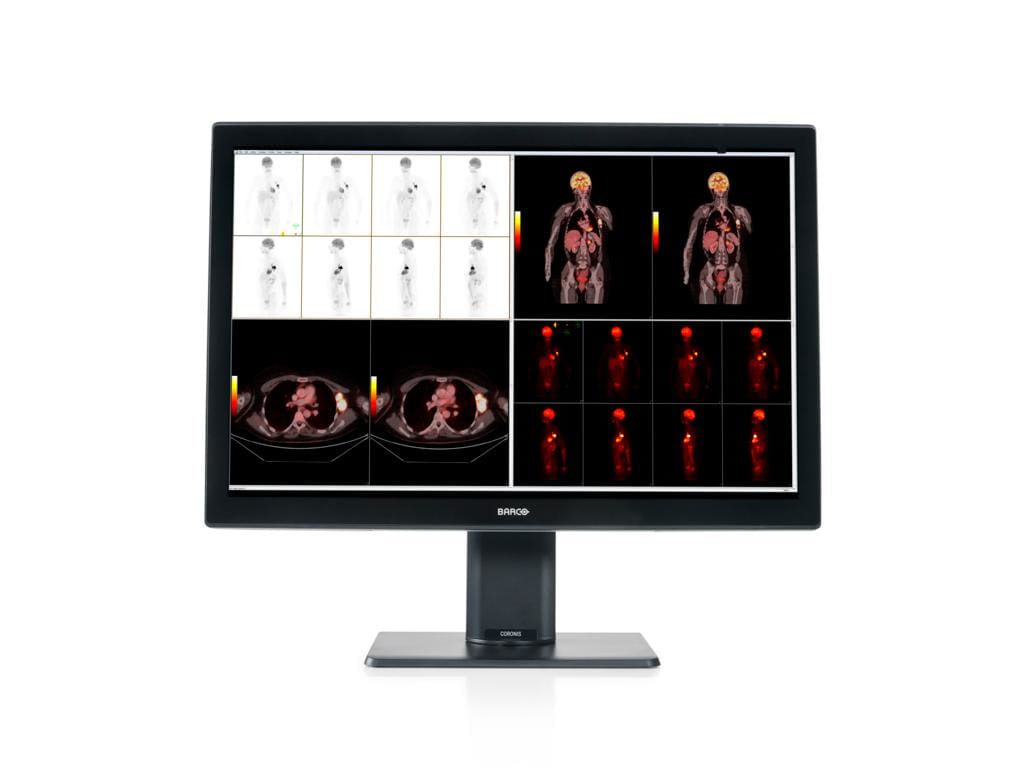

Barco MDCC-6530 30.4" 6MP IPS Color Medical Diagnostic Radiology Monitor - Black/White
Item No:
824160
MPN:
K9602943
$24,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Barco MDCC-6530, 77,2 cm (30.4"), 3280 x 2048 pixels, 4K Ultra HD, 18 ms, Black, White
A brighter diagnosis
Coronis Fusion, Barco's renowned multi-modality display for radiologists, now comes in a new, energy-efficient and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence.
See more details quickly thanks to the high brightness, high contrast ratio and best-in-class image quality. What's more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.
Smart workflow
Designed for your comfort and to boost productivity, Coronis Fusion comes with smart image-enhancing features and workflow tools. The display's wide viewing angle combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView, radiologists can further improve detection accuracy as well as reading productivity.
Effortless quality & compliance
Like all of Barco's medical display systems, Coronis Fusion comes with QAWeb Enterprise, a cloud-based technology for automated calibration, Quality Assurance and compliance to ensure maximum uptime of the display with no need for human intervention.
A one-stop-shop solution
Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.
Coronis Fusion, Barco's renowned multi-modality display for radiologists, now comes in a new, energy-efficient and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence.
See more details quickly thanks to the high brightness, high contrast ratio and best-in-class image quality. What's more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.
Smart workflow
Designed for your comfort and to boost productivity, Coronis Fusion comes with smart image-enhancing features and workflow tools. The display's wide viewing angle combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView, radiologists can further improve detection accuracy as well as reading productivity.
Effortless quality & compliance
Like all of Barco's medical display systems, Coronis Fusion comes with QAWeb Enterprise, a cloud-based technology for automated calibration, Quality Assurance and compliance to ensure maximum uptime of the display with no need for human intervention.
A one-stop-shop solution
Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 77.2 cm (30.4") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3280 x 2048 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:10 |
| Panel type | IPS |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Display brightness (peak) | 600 cd/m² |
| Display brightness (typical) Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment. | 1050 cd/m² |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 18 ms |
| Screen shape | Flat |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 2000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.1995 x 0.1995 mm |
| Viewable size, horizontal The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image. | 65.4 cm |
| Viewable size, vertical | 40.9 cm |
| Colour depth | 30 bit |
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Built-in camera The product has an integrated camera. |
|
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Medical |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Front bezel colour | Black |
| Feet colour The colour of the feet, which are the projecting part on which a device/piece of furniture, or each of its legs, stands. | Black |
| Ports & interfaces | |
| Built-in USB hub Whether or not the device features a USB hub to connect more than one other device via USB. |
 |
| USB hub version | 2.0 |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 3 |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 3 |
| DisplayPort version | 1.2 |
| Ergonomics | |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Height adjustment The part of the device that can be adjusted to change the height. |
|
| Adjustable height (max) | 10 cm |
| Pivot |
|
| Swivelling |
|
| Swivel angle range | -30 - 30° |
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Tilt angle range | -5 - 25° |
| Power | |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 80 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.6 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width (with stand) | 714 mm |
| Depth (with stand) | 240 mm |
| Height (with stand) | 624 mm |
| Weight (with stand) | 17.7 kg |
| Width (without stand) | 714 mm |
| Depth (without stand) | 74 mm |
| Height (without stand) | 478 mm |
| Weight (without stand) | 13.1 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 22.3 kg |
| Packaging content | |
| Stand included |
|
| Cables included | AC, USB |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Other features | |
| Certification | FDA 510(k) K191845 CE1639 (Medical Device) CCC (China) KC (Korea) BIS (India) EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan) INMETRO (Brazil) Safety specific: IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 IEC 62368-1:2018 EN 62368-1:2020 + A11:2020 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2:2014 (ed.4) EN 60601-1-2:2015 (ed.4) FCC part 15 Class B ICES-001 Level B VCCI (Japan) Environmental: China Energy Label EU RoHS China RoHS REACH Canada Health WEEE |
| SKU | 824160 |
| MPN | K9602943 |
| Brand | Barco |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.barco.com/ |
