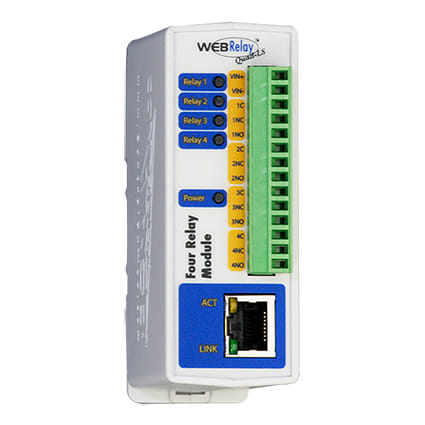

Axis Web Relay 4 Outputs 0 Input PoE

External IP relay provides reliable remote relay control and discrete signal monitoring over any IP network. It is a standalone IP device which can be controlled by HTTP commands sent by IP intercom which can thus control devices over unlimited distances. Eliminates the need for lock control wiring from the Intercom and can be used for basic lift control using the Automation Scripts of the IP Intercom. Available in Single or Quad Relays with PoE.

The IP Relay Quad has no inputs but has got four output relays which can be controlled by a remote relay somewhere else on the network via another WebRelay. This feature alone is extremely useful to extend the output of a PLC or a system output to another building gate or to allow a switch to control a device in another country.

• Built in web server for setup and remote relay control from a web browser
• No special software or device drivers required
• XML status and control page makes communications with custom software interfaces simple
• Can operate as a Modbus/TCP slave device
• Four independent 28V 1A relays SPDT
• “On/Off” and “Pulse” modes
• Rugged compact enclosure can be DIN Rail or Wall mounted
• Includes a 2 piece 14 pin industrial terminal connector that makes connections convenient
• “Power Over Ethernet” 802.3af option available
• Two power supply options available 9 28 VDC or Power Over Ethernet 802.3af
