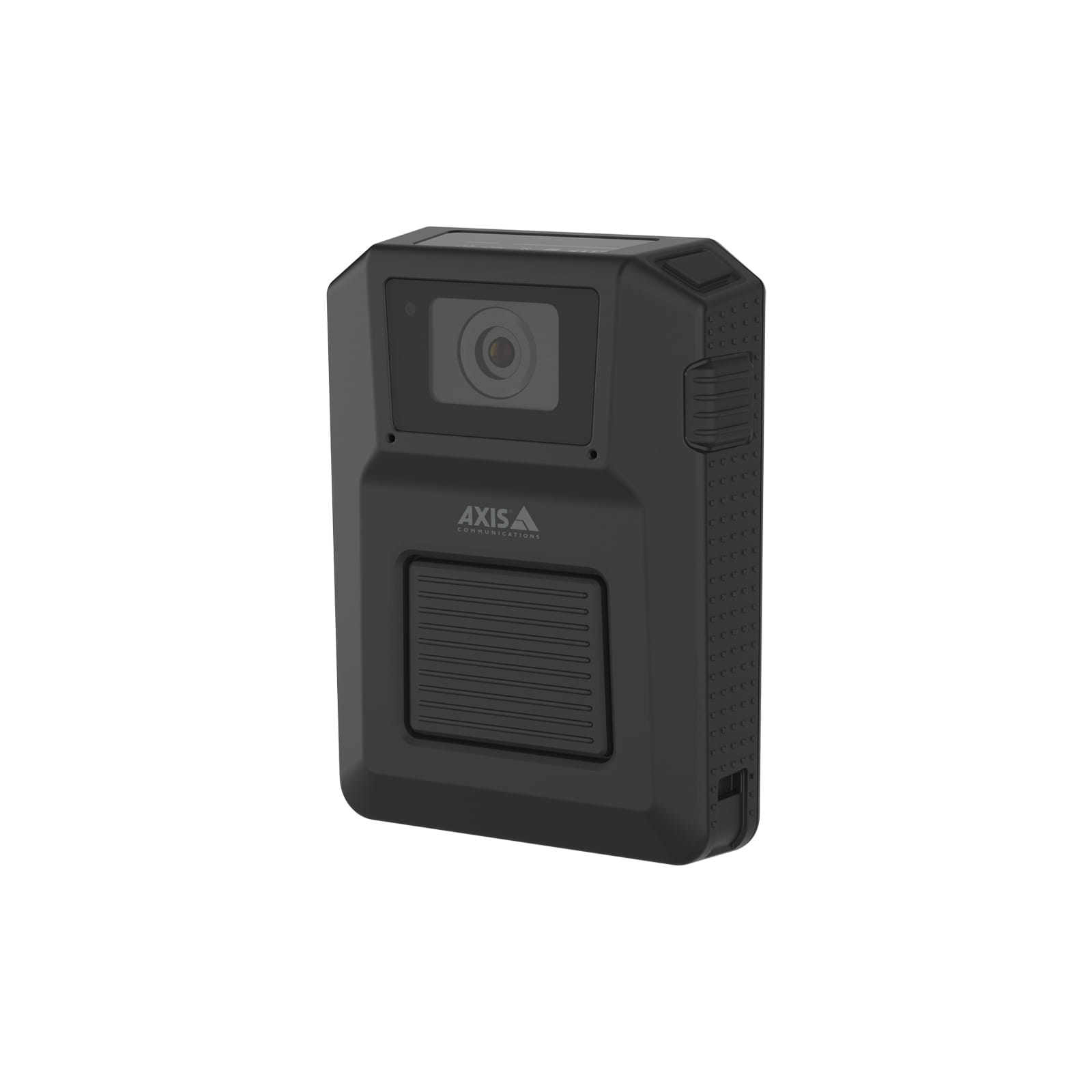

Axis W101, CMOS, 1920 x 1080 pixels, 0.1 lx, 82 Deg, 141 Deg, 1/32000 - 1/25 s
AXIS W101 Body Worn Camera is an easy-to-use, robust camera suitable for many applications. It lets you store and manage video where and how you want. And it plugs right into your own Axis system or another system of your choice.
Becomes a part of your system
AXIS W101 Body Worn Camera is based on open standards for flexibility and scalability. You can use it with your current Axis solution. We can provide you with a new end-to-end Axis solution that includes AXIS Camera Station VMS or Axis Insight. Or you can use AXIS W101 Body Worn Camera with a third-party VMS or EMS, either on-site or in the cloud. Either way, you decide how you want to manage your video evidence " while protecting the value of your existing investments.
Made with you in mind
AXIS W101 Body Worn Camera gives you exceedingly sharp images in every frame and clear audio with noise suppression. It s robust, water-resistant, easy to use and mounts securely to your clothing. It comes in white for discretion or black for when your priority is deterrence. It provides location tracking. It starts and stops fast " with a touch. And it buffers up to 90 seconds before you switch it on, so you ll catch the whole encounter. It has stealth mode for surreptitious recording. And a battery life of over 12 hours at 1080p, charging on-the-go with any USB-C charger, and fast offloading make it ready to go when you are and a snap to put away.
Efficient, safe, and scalable
AXIS W101 Body Worn Camera features Axis Zipstream technology, so you can store as much footage as you need without compromising video quality " onsite or in the cloud. It comes with an easy-to-use mobile app for viewing and labeling in the field. And evidence is easy to find and retrieve. AXIS W101 Body Worn Camera also lives up to official FBI standards for cybersecurity with end-to-end encryption. Axis Edge Vault protects the Axis device ID and simplifies authorization of Axis devices on the network. And open standards and cost-efficient docking stations with a separate controller make it easy to add as many cameras as you want anytime.
AXIS Body Worn Assistant
AXIS Body Worn Assistant is an app for iPhone or Android that gives you instant access to stored recordings on your AXIS W100 Body Worn Camera. You can start your reporting already out in the field by categorising a recording and attaching notes to it. All added information becomes part of the metadata and is automatically transferred of the camera when docked. The Live View function assists you to position the camera correctly on your body and can be used to view live action from around a corner or behind a barrier. By using the help, you can access user documentation on how to operate the camera.
Self-assign
Self-assign lets the camera user assign and pick up any available body worn camera using an RFID tag.
The user simply swipes their ID card or tag to allocate a camera, configured with specific user information, for the duration of their shift. This allows different work shifts to share a pool of cameras.
Becomes a part of your system
AXIS W101 Body Worn Camera is based on open standards for flexibility and scalability. You can use it with your current Axis solution. We can provide you with a new end-to-end Axis solution that includes AXIS Camera Station VMS or Axis Insight. Or you can use AXIS W101 Body Worn Camera with a third-party VMS or EMS, either on-site or in the cloud. Either way, you decide how you want to manage your video evidence " while protecting the value of your existing investments.
Made with you in mind
AXIS W101 Body Worn Camera gives you exceedingly sharp images in every frame and clear audio with noise suppression. It s robust, water-resistant, easy to use and mounts securely to your clothing. It comes in white for discretion or black for when your priority is deterrence. It provides location tracking. It starts and stops fast " with a touch. And it buffers up to 90 seconds before you switch it on, so you ll catch the whole encounter. It has stealth mode for surreptitious recording. And a battery life of over 12 hours at 1080p, charging on-the-go with any USB-C charger, and fast offloading make it ready to go when you are and a snap to put away.
Efficient, safe, and scalable
AXIS W101 Body Worn Camera features Axis Zipstream technology, so you can store as much footage as you need without compromising video quality " onsite or in the cloud. It comes with an easy-to-use mobile app for viewing and labeling in the field. And evidence is easy to find and retrieve. AXIS W101 Body Worn Camera also lives up to official FBI standards for cybersecurity with end-to-end encryption. Axis Edge Vault protects the Axis device ID and simplifies authorization of Axis devices on the network. And open standards and cost-efficient docking stations with a separate controller make it easy to add as many cameras as you want anytime.
AXIS Body Worn Assistant
AXIS Body Worn Assistant is an app for iPhone or Android that gives you instant access to stored recordings on your AXIS W100 Body Worn Camera. You can start your reporting already out in the field by categorising a recording and attaching notes to it. All added information becomes part of the metadata and is automatically transferred of the camera when docked. The Live View function assists you to position the camera correctly on your body and can be used to view live action from around a corner or behind a barrier. By using the help, you can access user documentation on how to operate the camera.
Self-assign
Self-assign lets the camera user assign and pick up any available body worn camera using an RFID tag.
The user simply swipes their ID card or tag to allocate a camera, configured with specific user information, for the duration of their shift. This allows different work shifts to share a pool of cameras.
| Camera | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.1 lx |
| Vertical field of view | 82° |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 141° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/32000 - 1/25 s |
| Fixed focal length | 2.1 cm |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.1 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Features | |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 64 GB |
| Video compression formats | AVC, H.264, MPEG4 |
| Accelerometer |
|
| Gyroscope |
|
| Certification | EN 55032 Class B, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B), RCM AS/NZS CISPR 32 Class B EN 300328, EN 301489-1, EN 301489-17, EN 303413, FCC Part 15 Subpart C, RSS-247 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC/EN 60529 IP67 MIL-STD-810H (Method 501.7, 503.7, 505.7, 509.7, 512.6, 516.8) |
| Power | |
| Power source type What the power source is. | USB |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 3600 mAh |
| Battery life (max) Maximum battery life. Mobile Mark™ (2002) is the standard often used to benchmark battery life time. | 17 h |
| Battery life (story mode) | 12 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68 mm |
| Depth The distance from the front to the back of something. | 27 mm |
| Height The measurement of the product from head to foot or from base to top. | 94 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 179 g |
| Packaging content | |
| Mounting kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 45 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 703622 |
| MPN | 02258-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
