Axis V5915 PTZ 60Hz, IP security camera, Indoor, Wired, Preset point, Auto, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,...
Live streaming cameras for a variety of applications

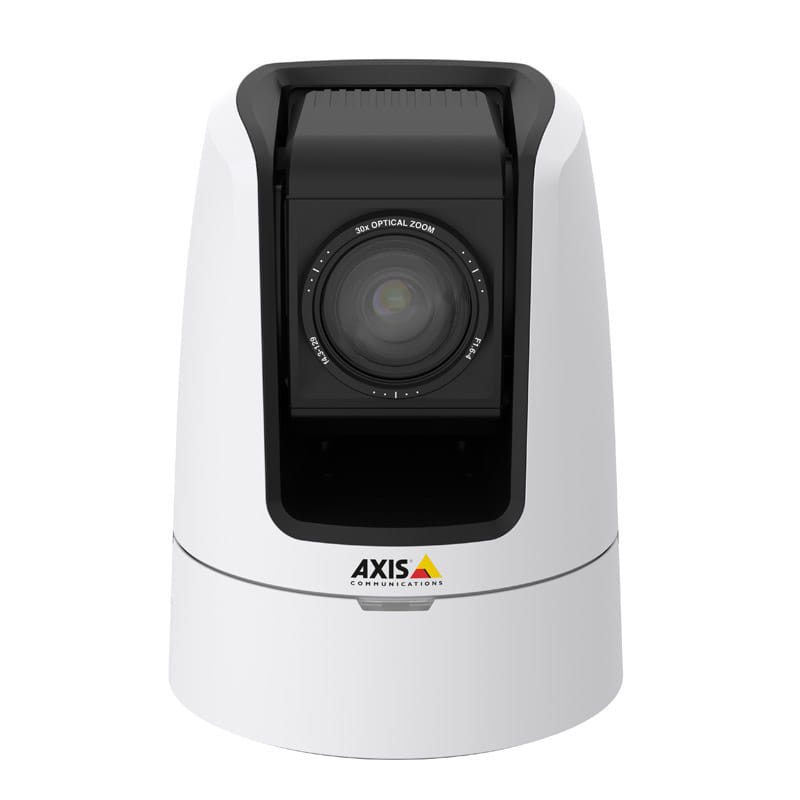

AXIS V5915 PTZ Network Camera offer smooth pan/tilt/zoom, high quality audio and powerful 30x zoom. The open interface makes it easy to integrate with other systems and share information with a broader audience such as in auditoriums, classrooms, as well as peer-to-peer communication for video conferencing.
For clear live production images
AXIS V5915 offer high-definition video in HDTV 1080p resolution. Camera settings are optimized to produce video with high-color fidelity in studio environments. The smooth pan/tilt/zoom function is easy to control from the camera's web page and makes it possible to follow movements in a live production situation and zoom in on details of interest.
Connectors for most requirements
The camera features both HDMI and SDI video output for full flexibility. Besides 3.5mm input/output connectors, professional balanced XLR inputs are provided to ensure high quality audio.
Ontario Hockey League
Ontario Hockey League relies on Axis broadcast-quality network cameras to help officials rule on goals and penalties
AXIS V5915 PTZ Network Camera offer smooth pan/tilt/zoom, high quality audio and powerful 30x zoom. The open interface makes it easy to integrate with other systems and share information with a broader audience such as in auditoriums, classrooms, as well as peer-to-peer communication for video conferencing.
For clear live production images
AXIS V5915 offer high-definition video in HDTV 1080p resolution. Camera settings are optimized to produce video with high-color fidelity in studio environments. The smooth pan/tilt/zoom function is easy to control from the camera's web page and makes it possible to follow movements in a live production situation and zoom in on details of interest.
Connectors for most requirements
The camera features both HDMI and SDI video output for full flexibility. Besides 3.5mm input/output connectors, professional balanced XLR inputs are provided to ensure high quality audio.
Ontario Hockey League
Ontario Hockey League relies on Axis broadcast-quality network cameras to help officials rule on goals and penalties
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| PTZ modes | Preset point |
| Preset points |
|
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Alarm input/output |
|
| Light exposure modes The different lengths of time for the exposure for a camera e.g. longer exposure for low light. | Auto |
| Infrared (IR) cut-off filter |
|
| Number of languages | 11 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Design | |
| Form factor The shape or design of the product. | Box |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Polyvinyl chloride (PVC), Plastic |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.03 lx |
| Angle of rotation | 180° |
| Lens viewing angle, horizontal | 63.7° |
| Lens viewing angle, vertical | 34.5° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 90 °/sec |
| Pan range | 0 - 340° |
| Pan speed | 100 °/sec |
| Camera shutter type Indicates if the camera shutter is mechanical or electronic. | Electronic |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/10000-1 s |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 30x |
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 12x |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.3 - 129 mm |
| Focus adjustment | Auto |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Video formats supported The type of video formats that can be used by this device. | H.264, MPEG4 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p |
| Noise reduction |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Audio system System used to play music or speech. | 2-way |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 20 - 20000 Hz |
| Sample rate | 20 kHz |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 85 dB |
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4 3G-SDI |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| BNC output ports | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Terminal block port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Privacy protection |
|
| Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems. |
|
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12 W |
| Power consumption (max) The maximum amount of power used by the device. | 21 W |
| DC output voltage | 8, 24 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 180 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 13.6 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.49 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Cables included | LAN (RJ-45) |
| Manual |
|
| SKU | 703643 |
| MPN | 0633-006 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.axis.com/ |
